5.0L (2 BBL) GM 305 V-8 1988-1995 - Serial 0B774445 Thru 0F600999 - Power Steering Components (Cast Mounting Bracket)

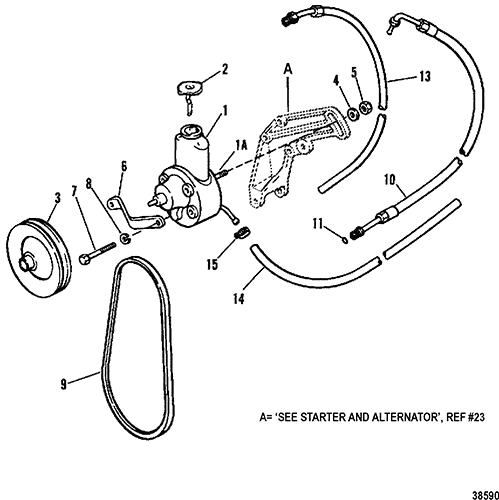

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando #Ac155603)
- Alternator (Mando #Ar-150)
- Alternator (Motorola #8Mr2039K)
- Alternator (Prestolite #8Em2003Ka)
- Audio Warning System
- Bodensee Parts
- Carburetor (Mercarb - 2 Barrel)
- Carburetor (Rochester - 4 Barrel)
- Carburetor (Weber)
- Carburetor-Throttle Linkage (2 Barrel)
- Carburetor-Throttle Linkage (Rochester - 4 Bbl)
- Carburetor-Throttle Linkage (Weber - 4 Barrel)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (Flat Rollers)
- Cylinder Block And Camshaft (Roller Lifters)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Jackshaft Models)
- Electrical Components (Ign. Module Mounted On Distributor)
- Electrical Components (Ign. Module Mounted On Exh. Elbow)
- Engine Mounting (Cast Bracket)
- Engine Mounting (Stamped Bracket)
- Exhaust Manifold And Exh. Elbow (Stainless Steel Exh. Elb)
- Exhaust Manifold And Exhaust Elbow (Cast Iron Exh. Elbow)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover (Design I)
- Intake Manifold And Front Cover (Design II)
- Mercathode Components
- Oil Filter And Adaptor (0F114689 and Below)
- Oil Filter And Adaptor (0F114690 and Up)
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components (Cast Mounting Bracket)
- Power Steering Components (Stamped Mounting Bracket)
- Sea Water Pump Assembly (Bravo)
- Sea Water Pump Ass'y (Closed Cooling Sys-Jackshaft Mdls)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Design I)
- Standard Cooling System (Design II)
- Standard Cooling System (Design III - Alpha)
- Starter Motor (12 In.)
- Starter Motor (8 In. - 2-7-8 In. Dia. End Cap)(PG 260)
- Starter Motor (8 In. - 3-1-4 In. Dia. End Cap)(PG 200)
- Starter Motor And Alternator
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 16792A39 | PUMP ASSEMBLY | 1 | 16792A1 | Pump DOES NOT come with pulley | ||||
| 1A | 16-41877 | STUD, (M10) | 1 | ||||||
| 2 | 36-95805 | CAP | 1 | ||||||
| 3 | 73873A1 | PULLEY | 1 | ||||||
| 4 | 12-34567 | WASHER (BRACE SLOT) | 1 | ||||||
| 5 | 11-90517 | NUT, (M10) | 2 | ||||||
| 6 | 98644A1 | BRACE | 1 | This Part is No Longer Available | |||||
| 7 | 10-40001188 | SCREW, (M10 x 20) | 1 | ||||||
| 8 | 13-400248 | LOCKWASHER, (M10) | 1 | ||||||
| 9 | 57-37619Q | V BELT (52 IN.) | 1 | 57-37619T | |||||
| 10 | 32-90494 | HOSE | 1 | (FITTINGS ON BOTH ENDS) | |||||
| 10 | 32-986291 | HOSE, (136.00 Inches Bulk) | 1 | This Part is No Longer Available (JACKSHAFT MODELS) | |||||
| 11 | 25-89879 | O-RING, (.301 x .064) | 1 | ||||||
| 13 | 32-9884339 | HOSE ASSEMBLY, (72.00 Inches Bulk) | 1 | (FITTING ON ONE END) | |||||
| 13 | 32-986241 | HOSE, (133.00 Inches Bulk) | 1 | This Part is No Longer Available (JACKSHAFT MODELS) | |||||
| 14 | 32-8M0062341 | HOSE, (53.00 Inches Bulk), Pump to Oil Cooler | 1 | 32-5251914 | |||||
| 15 | 54-815504206 | CLAMP, Worm Gear | 3 |
