5.0L MPI Alpha-Bravo - Serial 0M600000 Thru 0W059999 - Closed Cooling System

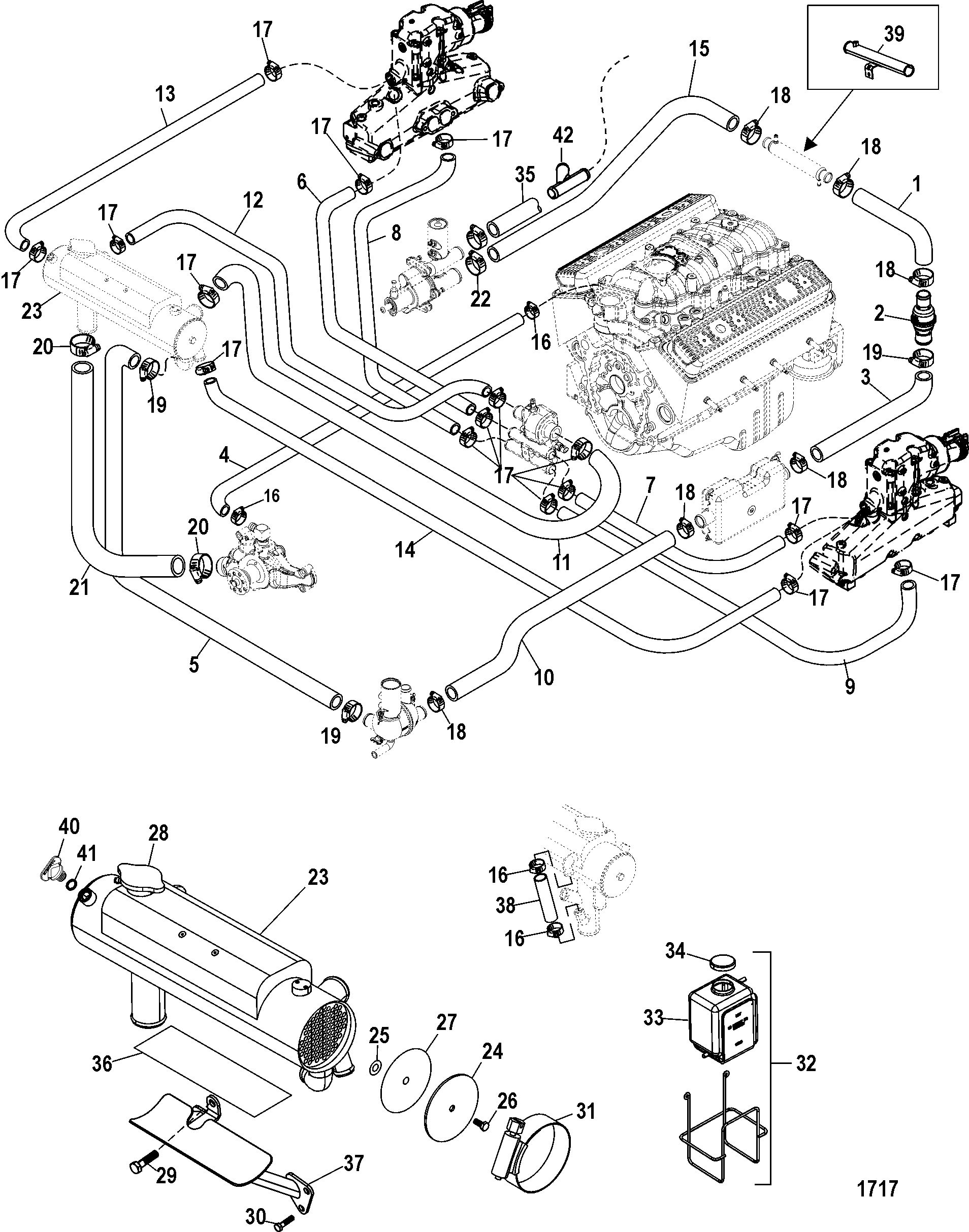

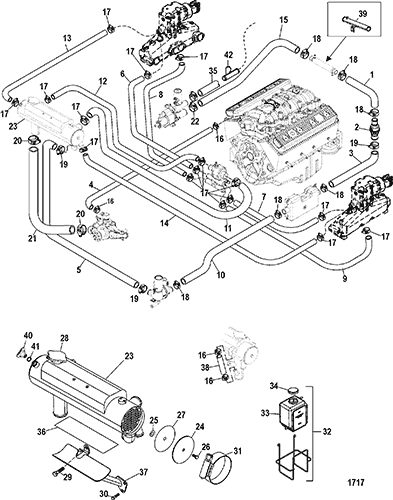

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System
- Cylinder Block (Camshaft and Crankshaft)
- Cylinder Block and Flywheel Housing
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter (Alpha)
- Fuel Filter and Boost Pump (BRAVO)
- Fuel Pump and Fuel Cooler
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Components
- Mercathode Components
- Oil Pan and Oil Pump
- Piston and Connecting Rods
- Power Steering Components
- Remote Oil Filter Assembly
- Sea Water Pump Assembly
- Shift Bracket (ALPHA)(0M659999 and Below)
- Shift Bracket (ALPHA)(0M660000 and Up)
- Shift Bracket (BRAVO)(0M659999 and Below)
- Shift Bracket (BRAVO)(0M660000 and Up)
- Standard Cooling System (7 Point Drain)
- Standard Cooling System (Single and 3 Point Drain)
- Starter Motor
- Thermostat and Housing (7 Point Drain)
- Thermostat and Housing (Single and 3 Point Drain)
- Throttle Body (Mechanical Throttle and Shift)
- Water Distribution Housing
- Water Drain (Air Manifold and Pump)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-863489 | HOSE, Power Steering to Check Valve | 1 | ||||||
| 2 | 21-864206A1 | CHECK VALVE ASSEMBLY | 1 | ||||||
| 3 | 32-863623 | HOSE, Check Valve to Fuel Cooler | 1 | ||||||
| 4 | 32-864551 | HOSE, Intake Bypass to Circulating Pump | 1 | ||||||
| 5 | 32-864431 | HOSE, Distribution Fitting to Heat Exchanger | 1 | ||||||
| 6 | 32-864539 | HOSE, Thermostat Housing to Upper Manifold | 1 | (Starboard) SN# 0M614999 & Below | |||||
| 6 | 32-864539 | HOSE, Thermostat Housing to Upper Manifold | 1 | (Starboard) (Non Riser) SN# 0M615000 & Up | |||||
| 6 | 32-864956 | HOSE, Thermostat Housing to Upper Manifold | 1 | (Starboard) (3 Inch and 6 Inch Warm Riser) SN# 0M615000 & Up | |||||
| 7 | 32-864552 | HOSE, Thermostat Housing to Upper Manifold | 1 | (Port) SN# 0M614999 & Below | |||||
| 7 | 32-864552 | HOSE, Thermostat Housing to Upper Manifold | 1 | (Port) (Non Riser) SN# 0M615000 & Up | |||||
| 7 | 32-864954 | HOSE, Thermostat Housing to Upper Manifold | 1 | (Port) (3 Inch and 6 Inch Warm Riser) SN# 0M615000 & Up | |||||
| 8 | 32-864509 | HOSE, Thermostat Housing to Lower Manifold | 1 | (Starboard) | |||||
| 9 | 32-864508 | HOSE, Thermostat Housing to Lower Manifold | 1 | (Port) | |||||
| 10 | 32-863670 | HOSE, Fuel Cooler to Accumulator Housing | 1 | ||||||
| 11 | 32-864506 | HOSE, Heat Exchanger to Thermostat Housing | 1 | ||||||
| 12 | 32-864507 | HOSE, Heat Exchanger to Thermostat Housing | 1 | ||||||
| 13 | 37-864542 | HOSE, Heat Exchanger to Starboard Elbow | 1 | This Part is No Longer Available SN# 0M614999 & Below | |||||
| 13 | 37-864542 | HOSE, Heat Exchanger to Starboard Elbow | 1 | This Part is No Longer Available (Non Riser and 3 Inch Warm Riser) SN# 0M615000 & Up | |||||
| 13 | 32-864955 | HOSE, Heat Exchanger to Starboard Elbow | 1 | (6 Inch Warm Riser) SN# 0M615000 & Up | |||||
| 14 | 32-864726 | HOSE, Heat Exchanger to Port Elbow | 1 | SN# 0M614999 & Below | |||||
| 14 | 32-864726 | HOSE, Heat Exchanger to Port Elbow | 1 | (Non Riser and 3 Inch Warm Riser) SN# 0M615000 & Up | |||||
| 14 | 32-864953 | HOSE, Heat Exchanger to Port Elbow | 1 | (6 Inch Warm Riser) SN# 0M615000 & Up | |||||
| 15 | 32-863611 | HOSE, Sea Pump to Power Steering Cooler | 1 | ||||||
| 16 | 54-815504212 | CLAMP, Worm Gear | 1 | ||||||
| 17 | 54-815504216 | CLAMP, Worm Gear (1.56 Diameter), Hose | 1 | ||||||
| 18 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter), Hose | 1 | ||||||
| 19 | 54-815504228 | CLAMP, Worm Gear, Hose | 1 | ||||||
| 20 | 54-815504232 | CLAMP, Worm Gear (2.50 Diameter), Hose | 1 | ||||||
| 21 | 32-864886 | HOSE, Heat Exchanger to Circulating Pump | 1 | 32-864432 | |||||
| 22 | 54-815504224 | CLAMP, Worm Gear, Hose | 1 | ||||||
| 23 | 864395T01 | 542-864395-T-01 | HEAT EXCHANGER, Closed Cooling | 1 | 864395T | ||||
| 24 | 864708 | COVER, End, Heat Exchanger | 2 | ||||||
| 25 | 25-818679 | O-RING | 4 | ||||||
| 26 | 10-94247 | 525-10-94247 | SCREW, (.375-16 x .750) Stainless Steel | 2 | |||||
| 27 | 866152 | SEAL | 2 | 25-864707 | |||||
| 28 | 36-8148791 | CAP, Pressure | 1 | ||||||
| 29 | 10-805559 | SCREW, (.375-16 x .875) Stainless Steel | 1 | ||||||
| 30 | 10-34353 | 525-10-34353 | SCREW, (.375-16 x 1.00) | 3 | |||||
| 31 | 54-815504396 | CLAMP, Worm Gear, Heat Exchanger | 1 | ||||||
| 32 | 71587A10 | RECOVERY KIT, Coolant | 1 | ||||||
| NS | 32-774572 | HOSE, (48.00 Inches Bulk) | 1 | ||||||
| 33 | 71587A11 | BOTTLE, Plastic, Coolant Recovery Kit | 1 | ||||||
| 34 | 72058 | CAP, Coolant Recovery Bottle | 1 | ||||||
| 35 | 32-865672079 | HOSE, (96.00 Inches Bulk), Sea Water Pump to Water Pick Up | 1 | 32-1743579 | |||||
| 36 | 18431 | PAD, Heat Exchanger | 1 | ||||||
| 37 | 864494T | BRACKET, Cooler | 1 | ||||||
| 38 | 32-864533 | HOSE | 1 | ||||||
| 39 | 863841T | TUBE, Water, Brass | 1 | (Compact Hydralic Steering) | |||||
| 40 | 22-806608A02 | 700-13992 | PLUG KIT, (.500-13) Royal Blue | 1 | 22-806608A1 | ||||
| 41 | 25-32509 | O-RING, (.489 x .070) | 1 | ||||||
| 42 | 22-864727 | FITTING, Y, (3) 1-1/4 In. OD Hose Barbs | 1 | (Bravo) |
