5.0L MPI Alpha-Bravo - Serial 0M600000 Thru 0W059999 - Shift Bracket (ALPHA)(0M659999 and Below)

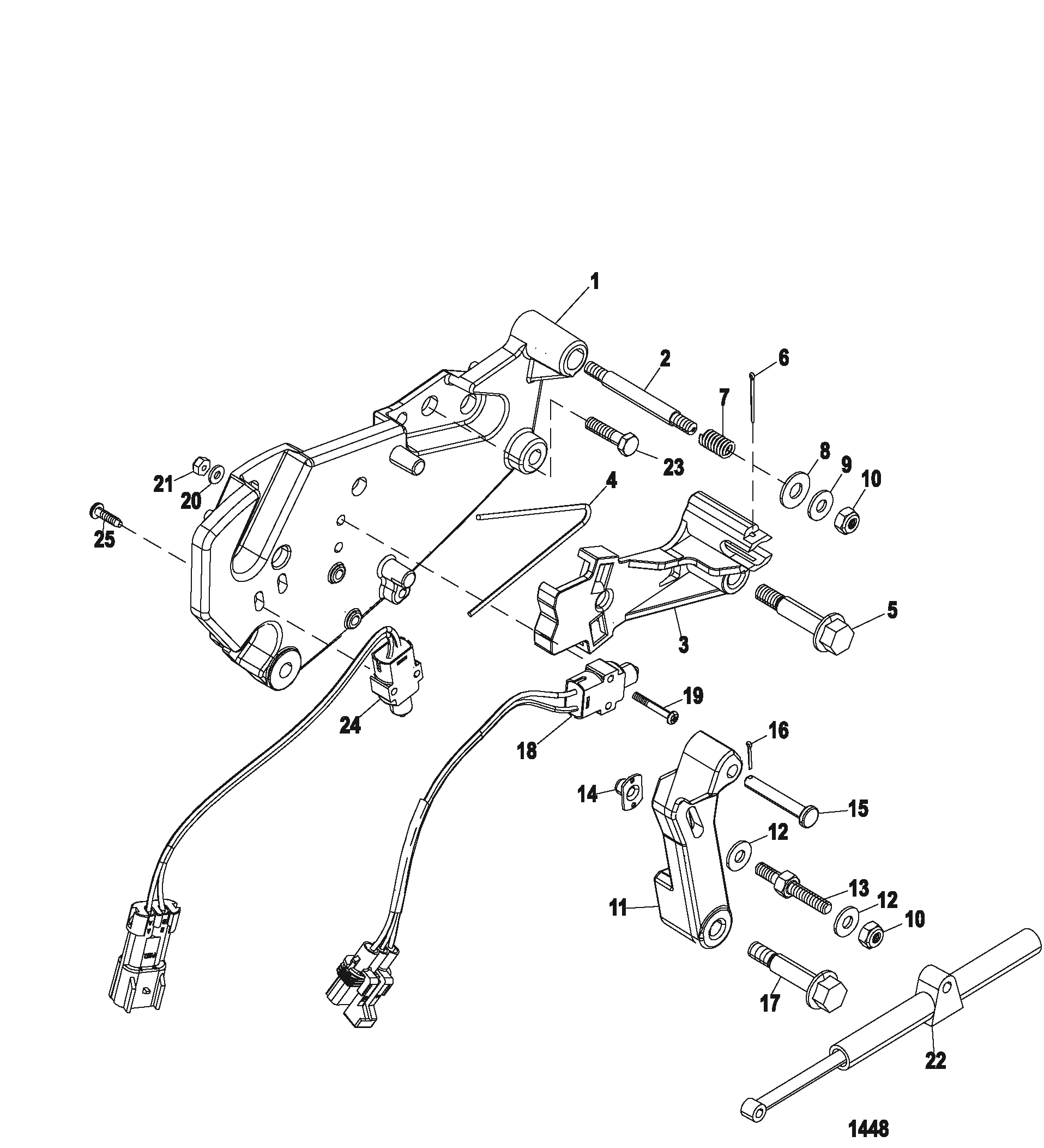

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 807962A10 BRACKET ASSEMBLY   1
2 0016 8140021 STUD (.250 x 2.870)   1
3 0000 13051A8 LEVER ASSEMBLY Actuating   1
4 0024 OEM: 525-24-862850 SPRING   1
5 0010 13743 SCREW (.312-18 x 1.843) Shoulder   1
6 0018 32857 COTTER PIN   1
7 0024 OEM: 525-24-98880 SPRING   1
8 0012 OEM: 525-12-56720 WASHER (.330 x .750 x .060) Stainless Steel   1
9 0012 OEM: 525-12-35462 WASHER (.2656 x .625 x .0625) Stainless Steel   1
10 0011 OEM: 525-11-8267119 NUT (.250-28)   2
11 0000 863911A4 LEVER ASSEMBLY Shift   1
12 0012 OEM: 525-12-35462 WASHER (.2656 x .625 x .0625) Stainless Steel   2
13 0016 961123 STUD (.250-28 x 1.90)   1
14 0011 OEM: 525-11-63341 TEE NUT   1
15 0017 OEM: 525-17-814001 PIN Clevis   1
16 0018 21071 COTTER PIN   1
17 0010 13743 SCREW (.312-18 x 1.843) Shoulder   1
18 0087 OEM: 525-87-808009A2 SWITCH ASSEMBLY Shift Interrupt   1
19 0010 OEM: 525-10-860077 SCREW (#6-32 x 1.00)   2
20 0012 OEM: 525-12-11303 WASHER   2
21 0011 OEM: 525-11-F1669 NUT (#6-32)   2
22 0000 OEM: 525-813995A1 GUIDE ASSEMBLY Spring   1
23 0010 OEM: 525-10-657461 SCREW AND LOCKWASHER (.250- 20 x .625)   3
24 0087 808009A3 SWITCH ASSEMBLY Gear Indication   1
25 0010 OEM: 525-10-88904 SCREW (#8-18 x .620)   2
