5.0L MPI Alpha-Bravo - Serial 1A623185 and Up - Exhaust Manifold and Elbow

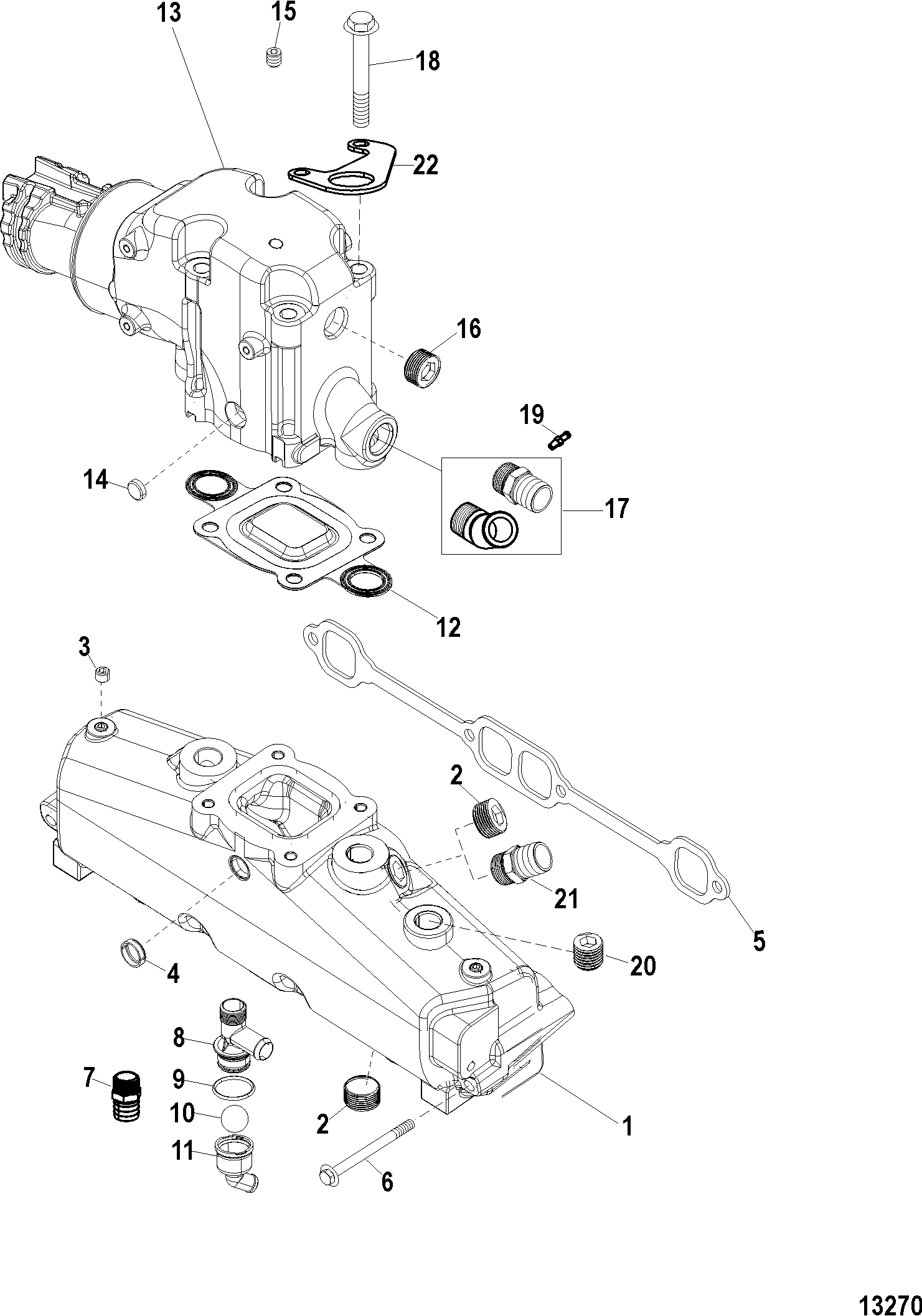

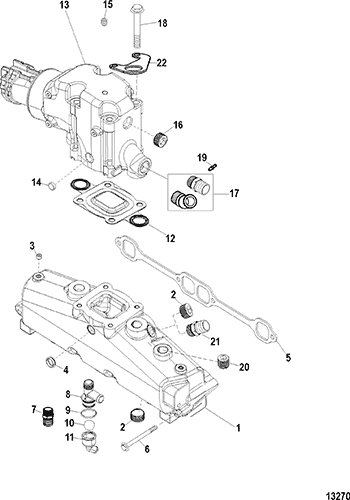

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System (BRAVO) Sea Pump Hoses
- Closed Cooling System (BRAVO) Sea Pump Hoses (SeaCore)
- Closed Cooling System, ALPHA
- Closed Cooling System, BRAVO
- Closed Cooling System, Heat Exchanger
- Cool Fuel System, Bravo
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing and Rear Main Seal
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components, Digital
- Electrical Components, Mechanical
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust Risers
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter, Alpha
- Fuel Module Components -Bravo
- Fuel Supply Module, Alpha
- Gasket Set Components (27-75611A03), Cylinder Head
- Gasket Set Components (27-861246A05), Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Main Kit
- Mercathode Components
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter Assembly
- Sea Water Pump Assembly
- Shift Bracket, Alpha
- Shift Bracket, Bravo
- Shift Bracket, Digital Throttle Shift
- Standard Cooling System - ALPHA, 7 Point Drain
- Standard Cooling System - ALPHA, Single and 3 Point Drain
- Standard Cooling System - BRAVO, 7 Point Drain
- Standard Cooling System - BRAVO, Single and 3 Point Drain
- Standard Cooling System, Sea Pump Hoses
- Starter Motor
- Steering Components
- Thermostat and Housing, 7 Point Drain
- Thermostat and Housing, Single and 3 Point Drain
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Water Distribution Housing
- Water Drain, Air Manifold and Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 865735A02 | MANIFOLD ASSEMBLY, Exhaust, Exhaust | 2 | 865049T01 | |||||
| 2 | 22-428611 | 602-98-102-57 | FITTING, Pipe - Brass (.750-14) | 4 | |||||
| 3 | 22-390721 | PLUG, Pipe (.125-27) Brass | 2 | ||||||
| 4 | 19-864689 | PLUG, Expansion, Expansion | 3 | ||||||
| 5 | 27-33395 | 676-9-61401 | 700-31100 | GASKET, Manifold | 2 | ||||
| 6 | 10-53728 | 700-21745 | SCREW, (.375-16 x 4.75) | 8 | |||||
| 7 | 22-863804 | FITTING, (.750-14) | 2 | (Closed Cooling) No longer made, limited availability | |||||
| 8 | 22-863786A1 | FITTING ASSEMBLY, Drain | 2 | (Standard Cooling) | |||||
| 9 | 25-864701 | O-RING, (1.112 x .103) | 1 | ||||||
| 10 | 30-863129 | BALL, Check | 1 | ||||||
| 11 | 862994T | FITTING | 1 | ||||||
| 12 | 27-864850A02 | 676-9-61429 | GASKET, Elbow, Resitrictor | 2 | (Standard Cooling) | ||||
| 12 | 27-864549A02 | GASKET, Elbow, Block Off | 2 | (Closed Cooling) | |||||
| 13 | 864591T02 | ELBOW ASSEMBLY | 2 | ||||||
| 14 | 19-864689 | PLUG, Expansion, Expansion | 4 | ||||||
| 15 | 22-73379 | 700-22379 | PLUG, (.250-18) | 1 | |||||
| 16 | 22-428611 | 602-98-102-57 | FITTING, Pipe - Brass (.750-14) | 2 | |||||
| 17 | 22-863804 | FITTING, (.750-14) | 1 | No longer made, limited availability | |||||
| 17 | 22-865159 | FITTING, 45 Degree | 1 | ||||||
| 18 | 10-865982057 | SCREW, (.375-16 x 7.50), Exhaust Elbow | 8 | ||||||
| 19 | 22-16604 | FITTING, Straight (.125-27) | 1 | ||||||
| 20 | 22-12524 | PLUG, (.375-18 x .475) Brass | 2 | ||||||
| 21 | 22-863804 | FITTING, (.750-14) | 2 | No longer made, limited availability | |||||
| 22 | 864263 | BRACKET, Flushing Attachment | 1 |
