5.0L MPI Alpha-Bravo - Serial 1A623185 and Up - Oil Pan and Oil Pump

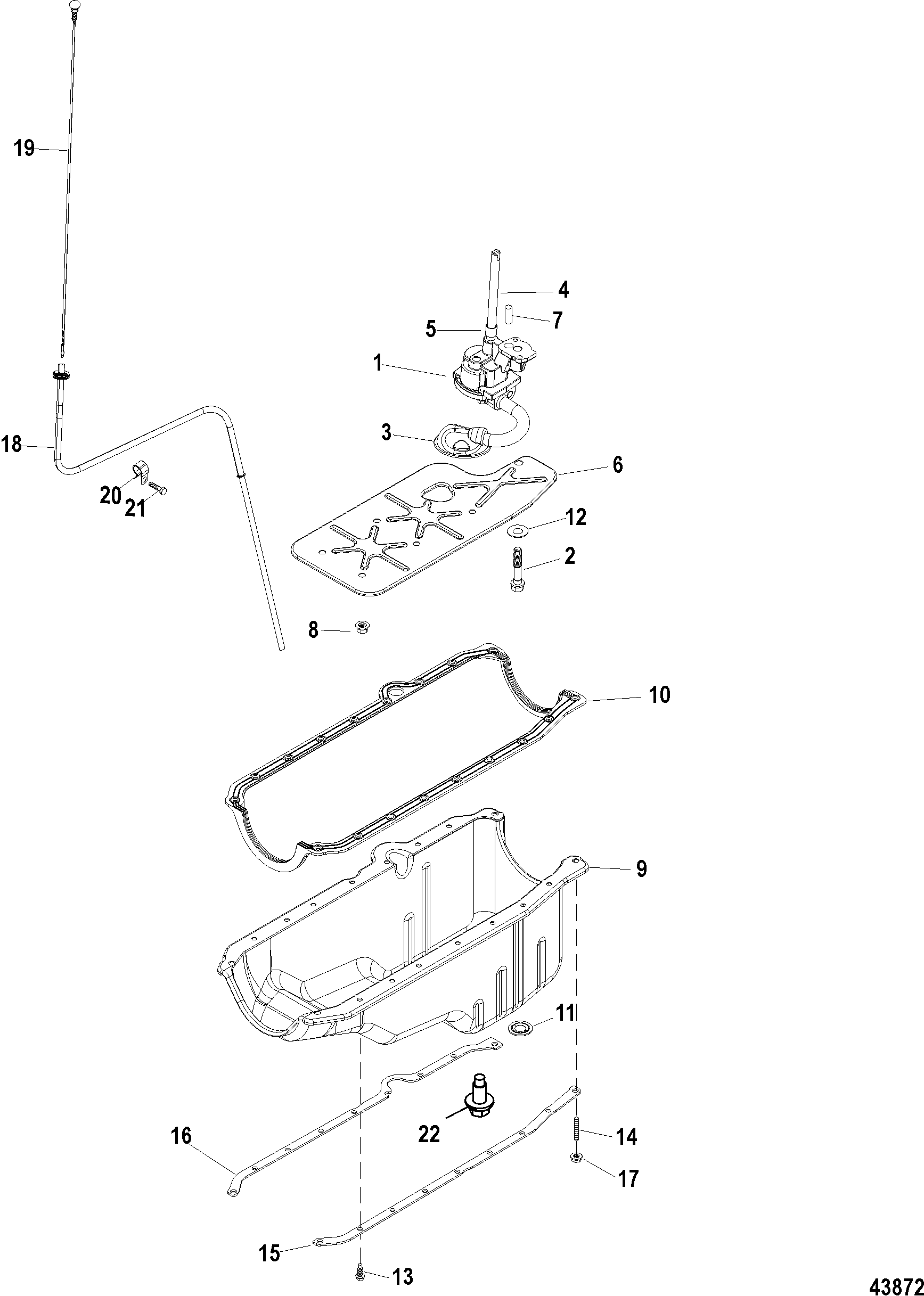

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System (BRAVO) Sea Pump Hoses
- Closed Cooling System (BRAVO) Sea Pump Hoses (SeaCore)
- Closed Cooling System, ALPHA
- Closed Cooling System, BRAVO
- Closed Cooling System, Heat Exchanger
- Cool Fuel System, Bravo
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing and Rear Main Seal
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components, Digital
- Electrical Components, Mechanical
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust Risers
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter, Alpha
- Fuel Module Components -Bravo
- Fuel Supply Module, Alpha
- Gasket Set Components (27-75611A03), Cylinder Head
- Gasket Set Components (27-861246A05), Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Main Kit
- Mercathode Components
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter Assembly
- Sea Water Pump Assembly
- Shift Bracket, Alpha
- Shift Bracket, Bravo
- Shift Bracket, Digital Throttle Shift
- Standard Cooling System - ALPHA, 7 Point Drain
- Standard Cooling System - ALPHA, Single and 3 Point Drain
- Standard Cooling System - BRAVO, 7 Point Drain
- Standard Cooling System - BRAVO, Single and 3 Point Drain
- Standard Cooling System, Sea Pump Hoses
- Starter Motor
- Steering Components
- Thermostat and Housing, 7 Point Drain
- Thermostat and Housing, Single and 3 Point Drain
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Water Distribution Housing
- Water Drain, Air Manifold and Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 809907002 | PUMP ASSEMBLY, Oil | 1 | 4 | |||||
| 2 | 10-17346 | SCREW, Oil Pump | 1 | 4 | |||||
| 3 | 809909 | SCREEN, Oil Pump Pick Up | 1 | 4 | |||||
| 4 | 36184 | SHAFT | 1 | 4 | |||||
| 5 | 23-36183 | RETAINER | 1 | 4 | |||||
| 6 | 986021 | DEFLECTOR, Oil | 1 | 4 | |||||
| 7 | 17-843378 | PIN, Dowel, Alignment, Oil Pump | 1 | 4 | |||||
| 8 | 11-845602 | NUT, (.375-16) | 5 | 4 | |||||
| 9 | 809910 | PAN, Oil | 1 | 4 | |||||
| 10 | 27-138651 | 676-9-61504 | GASKET, Oil Pan | 1 | 4 | ||||
| 11 | 27-8M0077608 | GASKET, Drain Screw | 1 | 27-49955 | 4 | ||||
| 12 | 12-27339 | WASHER | 1 | ||||||
| 13 | 10-14070 | SCREW, (.250-20 x .625) | 14 | 4 | |||||
| 14 | 16-11989 | STUD, (.312-18 x 1.6718) | 2 | 4 | |||||
| 15 | 14257 | REINFORCEMENT, Port | 1 | 4 | |||||
| 16 | 14256 | REINFORCEMENT, Starboard | 1 | 4 | |||||
| 17 | 11-11971 | NUT, (.312-18) | 4 | 4 | |||||
| 18 | 862704A4 | TUBE, Dipstick | 1 | 4 | |||||
| 19 | 861942T9 | DIPSTICK, Oil Level | 1 | ||||||
| 20 | 54-805625 | CLIP, Dipstick Tube | 1 | 4 | |||||
| 21 | 10-35366 | SCREW | 1 | 4 | |||||
| 22 | 10-809911001 | SCREW KIT, Drain | 1 | ||||||
| - | 27-861246A05 | GASKET SET, Engine Overhaul | 1 |
