5.7L (2 BBL) GM 350 V-8 1997 - Serial 0K001527 Thru 0K999999 - Exhaust Manifold And Cast Iron Exhaust Elbow

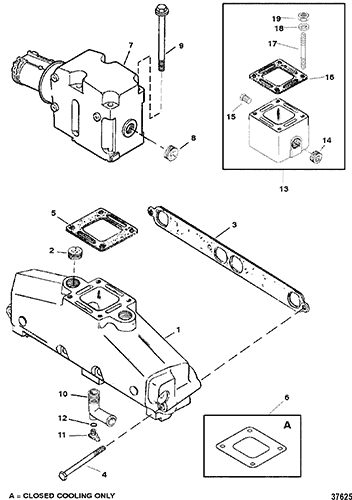

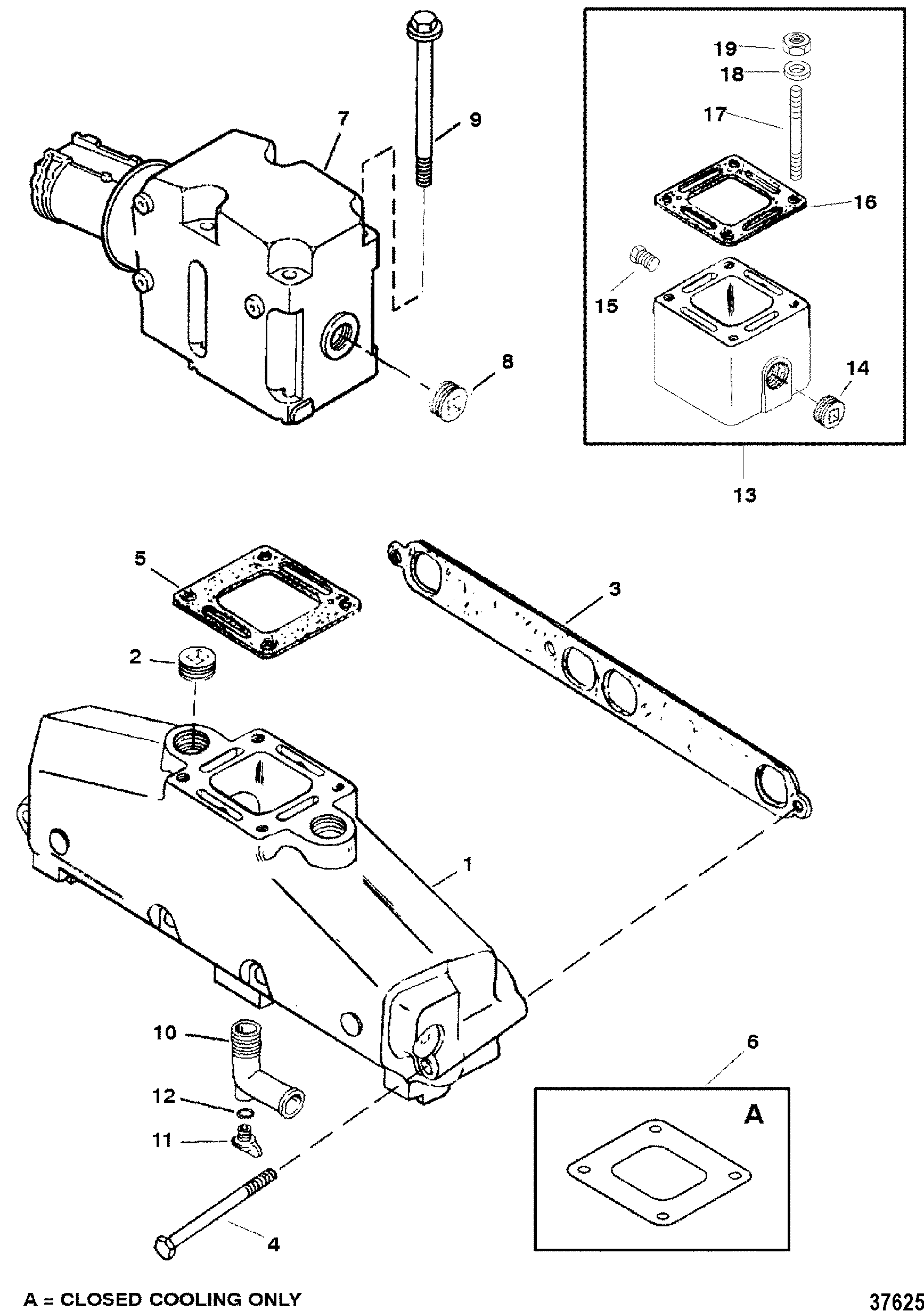

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 860246A15



MANIFOLD ASSEMBLY, Exhaust 2 87114A19
2 22-41622
676-9-41205 700-21892
PLUG, (3/4-14) 8 22-33198A1
3 27-33395



GASKET 2
3
4 10-53728



SCREW, (.375-16 x 4.75) 8

5 27-863724



GASKET 2 27-860233 STANDARD COOLING 3
6 27-8637251



GASKET 2 27-860231 CLOSED COOLING 3
7 807988A03



ELBOW ASSEMBLY, Exhaust (7 DEG.) 2 807914A1
7 807988A03



ELBOW ASSEMBLY, Exhaust 1 44354A10 (PORT) SWISS EMISSIONS
7 807988A03



ELBOW ASSEMBLY, Exhaust 1 44354A9 (STARBOARD.) (BSO1 AND SAV1) SWISS EMISSIONS
8 22-41622
676-9-41205 700-21892
PLUG, (3/4-14) 2 22-33198A1
9 10-43749



SCREW, (.375-16 x 5.750) 8

9 10-43749



SCREW, (.375-16 x 5.750) 2
SWISS EMISSIONS
9 10-44387



SCREW, (.376-16 x 6.750) 2
(BSO1 AND SAV1) SWISS EMISSIONS
9 10-843504



SCREW, (.380-16 x 1.500) Stainless Steel 4
SWISS EMISSIONS
10 22-862210A01
676-9-41206 700-13991
ELBOW KIT, Drain 2 22-806926A1
11 22-806608A02



PLUG KIT, (.500-13) Royal Blue 2 22-806608A1
12 25-32509



QUAD RING 2 25-806609
13 93320A13



RISER KIT, Exhaust Elbow (3 In.) 1 93320A3 (3 IN.)
13 93322A12



RISER KIT, Exhaust Elbow (6 In.) 1 93322A6 (6 IN.)
14 22-41622
676-9-41205 700-21892
PLUG, (3/4-14) 2 22-33198A1
15 22-328022



PLUG, Pipe (.125-27) 2 22-328021
16 27-863726



GASKET 2 27-818832
17 8M0022137



STUD, (.375 x 9.56) 8 16-11375 USE WITH 3 IN. RISER
17 10-865982005



SCREW, (.375-16 x 1.00) 8 10-12244 USE WITH 6 IN. RISER
18 12-46132



WASHER 8

19 11-46335



NUT, (.375-24) 8

- 27-806871A96



GASKET SET, Overhaul 1
