5.7L (2 BBL) GM 350 V-8 1997 - Serial 0K001527 Thru 0K999999 - Swiss Emissions Parts (BSO1 And SAV1)

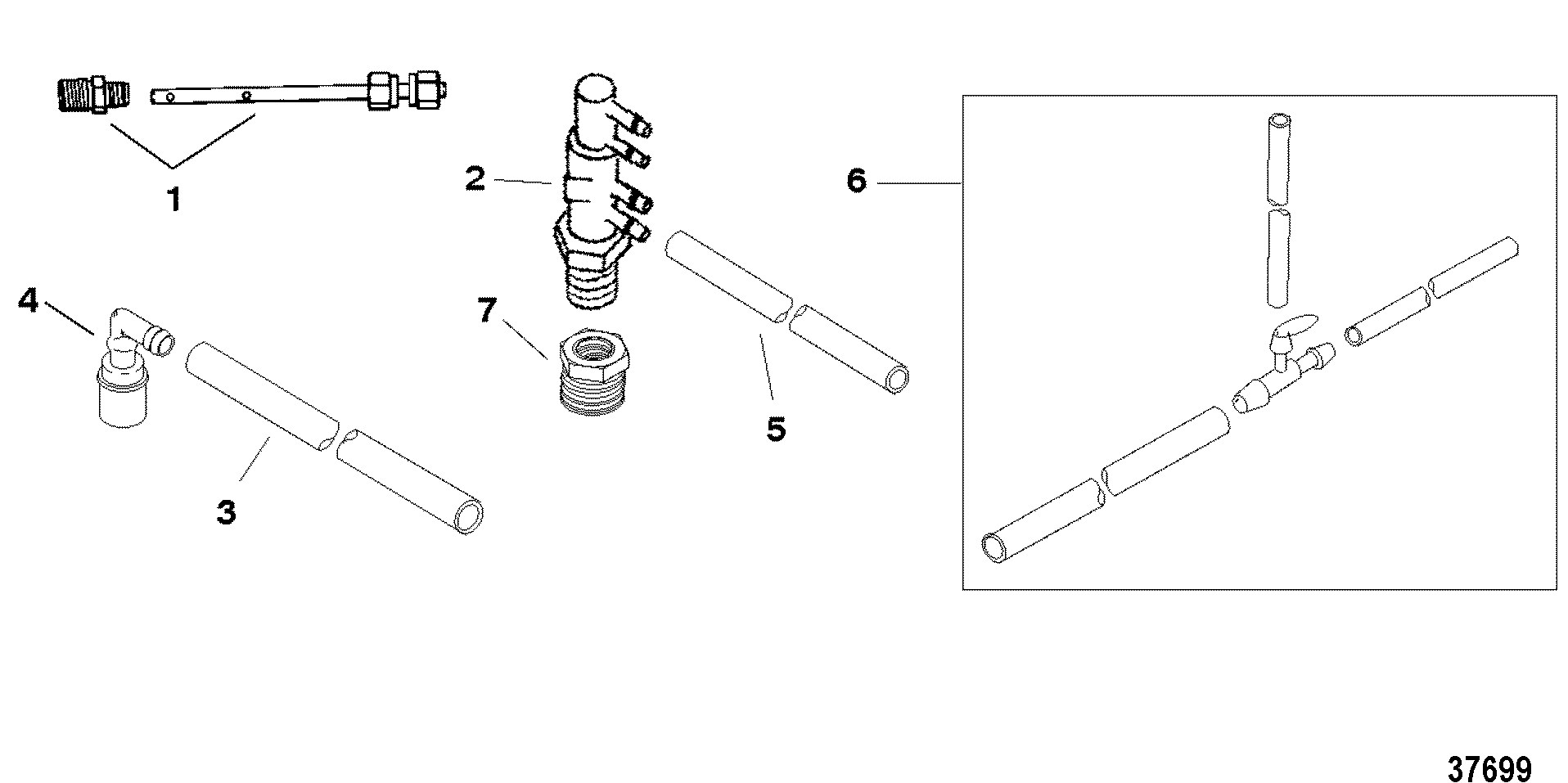

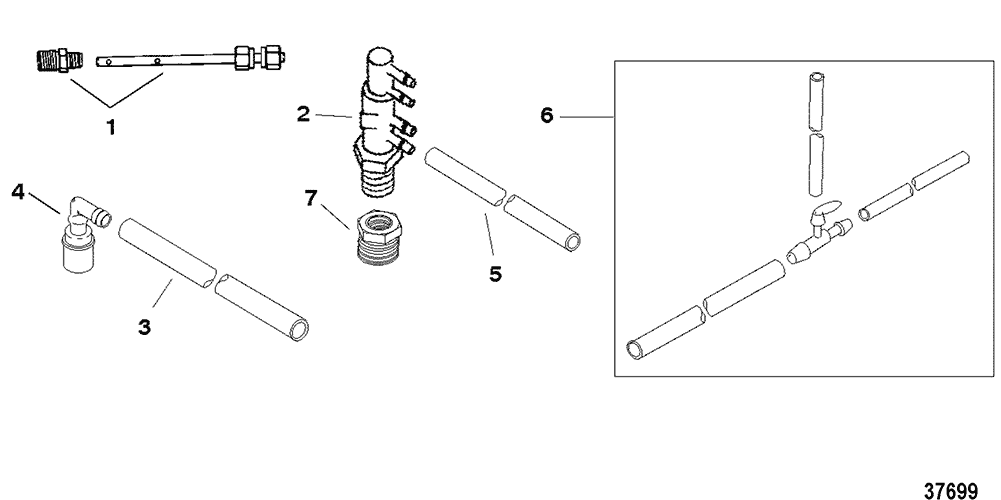

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Carburetor (Mercarb - 2 Barrel)
- Carburetor (Weber)
- Carburetor-Throttle Linkage(2 Barrel)
- Carburetor-Throttle Linkage(4 Barrel)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (350 C.I.D. Flat Lifters)
- Cylinder Block And Camshaft (350 C.I.D. Roller Lifters)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Cast Iron Exhaust Elbow
- Exhaust Manifold And Stainless Steel Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Gasket Set, Overhaul
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly (Use With Bravo Engines)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Alpha Engines)
- Standard Cooling System (Bravo Engines)
- Starter Motor
- Starter Motor And Alternator
- Swiss Emissions Parts (BSO1 And SAV1)
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 91-806141A1 | PROBE ASSEMBLY | 2 | ||||||
| 2 | 806119 | PVS EMISSIONS | 1 | ||||||
| 3 | 80617330 | HOSE, (8.25 Inches) (5/32 IN. I.D.) | 2 | ||||||
| 4 | 21-806118 | VALVE, PVC | 1 | This Part is No Longer Available | |||||
| 5 | 32-8M0062321 | HOSE (3/8 IN. I.D.) | 1 | 32-80617435 | |||||
| 6 | 806175A1 | T-FITTING ASSEMBLY (WITH HOSES) | 1 | ||||||
| 7 | 22-52382 | BUSHING | 1 |
