5.7L (2 BBL) GM 350 V-8 1996 - Serial 0F601000 Thru 0K001526 - Driveshaft Extension Components (Jackshaft Models)

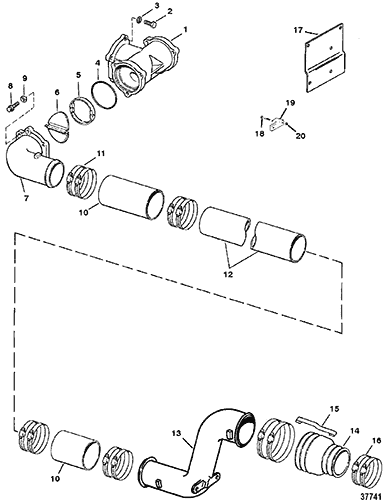

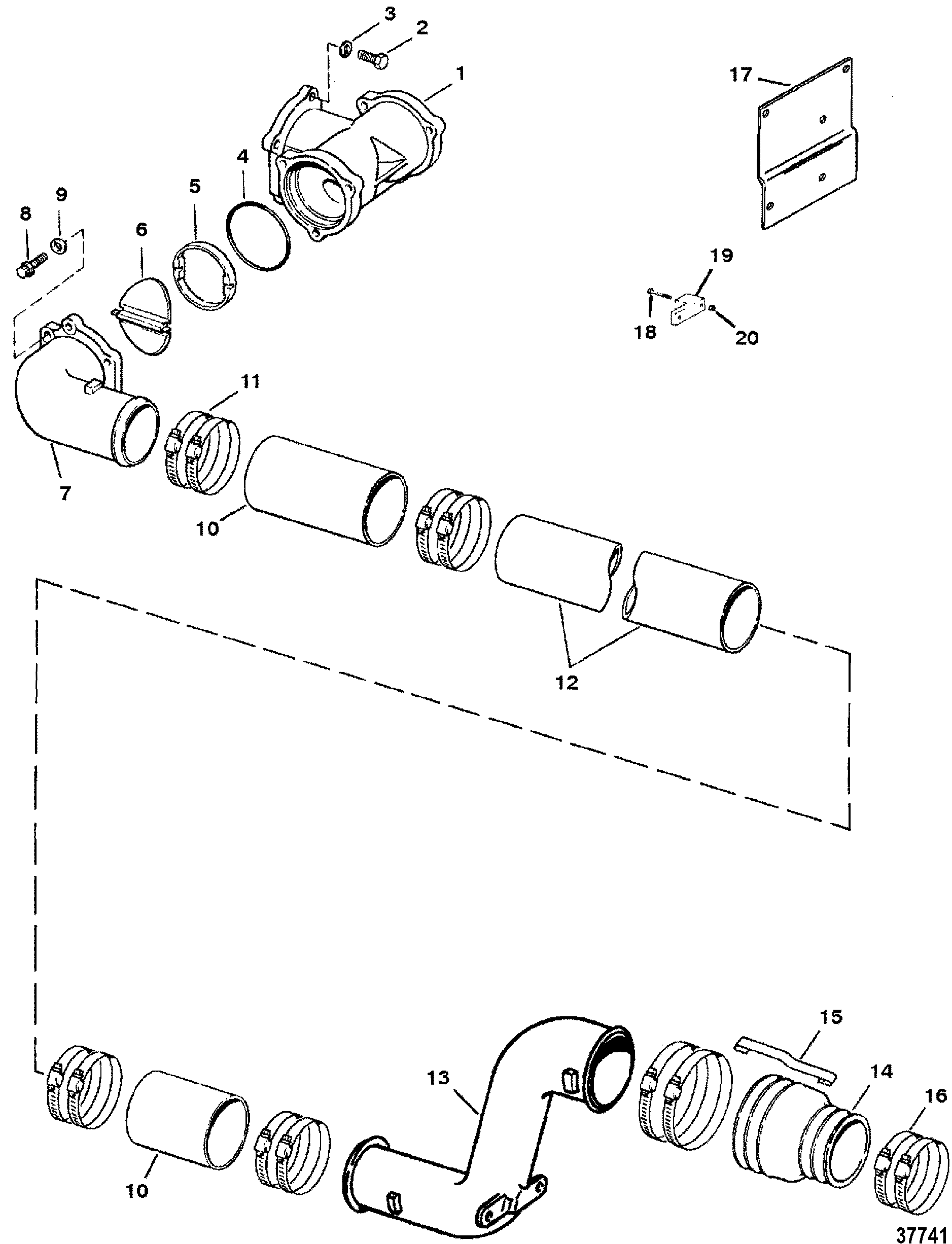

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Audio Warning System
- Bodensee Parts
- Carburetor (Mercarb - 2 Barrel)
- Carburetor (Weber)
- Carburetor-Throttle Linkage (2 Barrel)
- Carburetor-Throttle Linkage (4 Barrel)
- Crankshaft And Flywheel
- Cyl. Block And Camshaft (5.7LX Alpha-Bravo)(350 Mag-Alpha)
- Cylinder Block And Camshaft (5.7L Alpha-Bravo)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Jackshaft Models)
- Engine Mounting
- Exh. Manifold And Cast Iron Exh. Elbow (5.7L-5.7Lx Alpha)
- Exh. Manifold And S. Steel Exh Elbow (5.7L-5.7Lx Bravo`)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Gasket Set, Overhaul
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Sea Water Pump Assembly (Bravo Engines)
- Sea Water Pump Ass'Y (Closed Cooling Sys And Jackshaft Mdls)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (5.7L-5.7Lx Alpha)
- Starter Motor
- Starter Motor And Alternator
- Std. Cooling System (5.7L-5.7Lx Bravo) (350 Magnum-Alpha)
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 98626A3 | SEPARATOR | 1 | ||||||
| 2 | 10-37612 | SCREW, (.375-16 x 1.250) | 4 | ||||||
| 3 | 13-35048 | 700-21495 | LOCKWASHER, (.375) | 4 | |||||
| 4 | 25-35029 | O-RING | 2 | ||||||
| 5 | 60931 | RETAINER | 2 | ||||||
| 6 | 60930 | 676-9-42800 | SHUTTER, Water | 2 | |||||
| 7 | 94018A1 | ELBOW ASSEMBLY, Exhaust | 2 | ||||||
| 8 | 10-58640 | SCREW, (.375-16 x 1.25) | 6 | ||||||
| 9 | 13-58643 | LOCKWASHER, (.375) | 6 | ||||||
| 10 | 32-486594 | HOSE | 4 | This Part is No Longer Available | |||||
| 11 | 54-815504256 | CLAMP, Worm Gear | 20 | ||||||
| 12 | 94608A1 | TUBE ASSEMBLY, Exhaust | 2 | This Part is No Longer Available | |||||
| 13 | 98630A1 | ELBOW ASSEMBLY, Exhaust | 2 | This Part is No Longer Available (USE WITH 3 IN. ELBOW) | |||||
| 13 | 44390T | ELBOW | 2 | (USE WITH 4 IN. ELBOW) | |||||
| 14 | 70981A3 | 676-9-72808 | 700-89070 | BELLOWS ASSEMBLY | 2 | (USE WITH 3 IN. ELBOW) | |||
| 14 | 78458A1 | 676-9-72810 | 602-9A-108-04TK | TUBE | 2 | (USE WITH 4 IN. ELBOW) | |||
| 15 | 95740 | STRAP, Ground | 2 | This Part is No Longer Available | |||||
| 16 | 54-815504372 | 700-01100 | CLAMP, Worm Gear | 4 | |||||
| 17 | 41063A1 | BRACKET ASSEMBLY | 1 | ||||||
| 18 | 10-24231 | SCREW, (#10-32 x .250) | 1 | ||||||
| 19 | 11-46438 | NUT, (#10-32) | 1 | ||||||
| 20 | 45915 | TERMINAL BLOCK | 1 |
