5.7L (2 BBL) GM 350 V-8 1996 - Serial 0F601000 Thru 0K001526 - Shift Bracket (Alpha Engines)

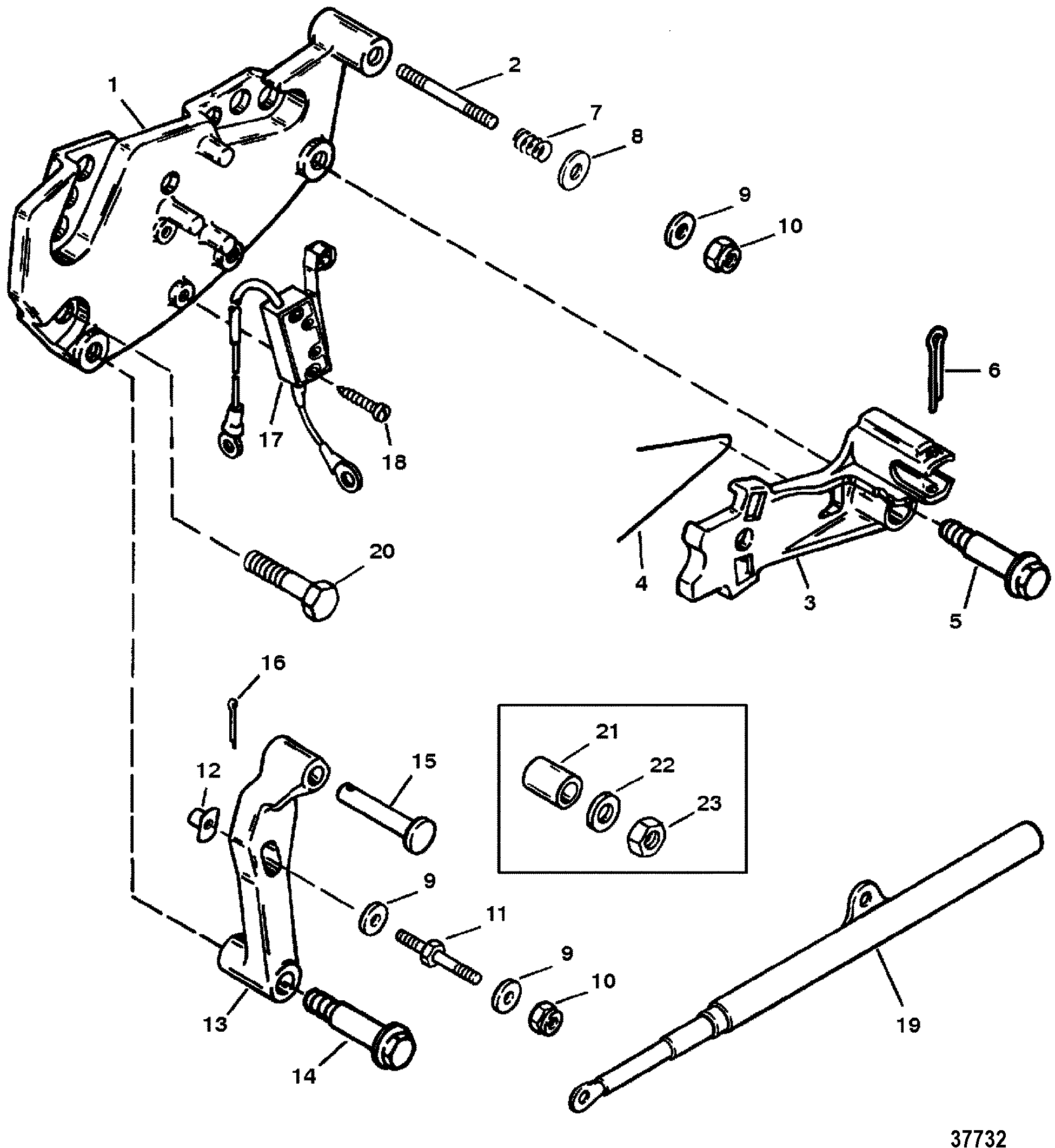

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Audio Warning System
- Bodensee Parts
- Carburetor (Mercarb - 2 Barrel)
- Carburetor (Weber)
- Carburetor-Throttle Linkage (2 Barrel)
- Carburetor-Throttle Linkage (4 Barrel)
- Crankshaft And Flywheel
- Cyl. Block And Camshaft (5.7LX Alpha-Bravo)(350 Mag-Alpha)
- Cylinder Block And Camshaft (5.7L Alpha-Bravo)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Jackshaft Models)
- Engine Mounting
- Exh. Manifold And Cast Iron Exh. Elbow (5.7L-5.7Lx Alpha)
- Exh. Manifold And S. Steel Exh Elbow (5.7L-5.7Lx Bravo`)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Gasket Set, Overhaul
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Sea Water Pump Assembly (Bravo Engines)
- Sea Water Pump Ass'Y (Closed Cooling Sys And Jackshaft Mdls)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (5.7L-5.7Lx Alpha)
- Starter Motor
- Starter Motor And Alternator
- Std. Cooling System (5.7L-5.7Lx Bravo) (350 Magnum-Alpha)
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807962A15 | BRACKET ASSEMBLY | 1 | 99237A10 | |||||
| 2 | 16-8140021 | STUD, (.250 x 2.870) | 1 | No longer made, limited availability | |||||
| 3 | 13051A4 | LEVER ASSEMBLY, Actuating | 1 | This Part is No Longer Available | |||||
| 4 | 24-862850 | SPRING | 1 | 24-45599 | |||||
| 5 | 10-13743 | SCREW, (.312-18 x 1.843), Shoulder | 1 | ||||||
| 6 | 18-328571 | COTTER PIN | 1 | 18-32857 | |||||
| 7 | 24-98880 | SPRING | 1 | ||||||
| 8 | 12-56720 | WASHER, (.330 x .750 x .060) Stainless Steel | 1 | ||||||
| 9 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 3 | ||||||
| 10 | 11-8267119 | NUT, (.250-28) | 2 | 11-13438 | |||||
| 11 | 16-96112 | STUD, (.250-28 x 2.00), Throttle Cable Anchor | 1 | ||||||
| 12 | 11-63341 | TEE NUT | 1 | ||||||
| 13 | 13898T06 | LEVER ASSEMBLY, Shift | 1 | 13898A3 | |||||
| 14 | 10-13743 | SCREW, (.312-18 x 1.843), Shoulder | 1 | ||||||
| 15 | 17-814001 | PIN, Clevis | 1 | ||||||
| 16 | 18-210711 | COTTER PIN | 1 | 18-21071 | |||||
| 17 | 87-19752A6 | SWITCH ASSEMBLY, Cut Out | 1 | This Part is No Longer Available | |||||
| 18 | 10-30902 | SCREW, (#6-32 x .750) | 2 | ||||||
| 19 | 813995A1 | GUIDE ASSEMBLY, Spring | 1 | ||||||
| 20 | 10-657461 | SCREW AND LOCKWASHER, (.250-20 x .625) | 3 | USE WITH CAST IRON ELBOWS | |||||
| 21 | 23-806981 | SPACER | 3 | USE WITH STAINLESS STEEL ELBOWS | |||||
| 22 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 3 | USE WITH STAINLESS STEEL ELBOWS | |||||
| 23 | 11-64015 | NUT, (.250-20) | 3 | USE WITH STAINLESS STEEL ELBOWS |
