Bravo X One - Serial 0W250000 and Up - Driveshaft Extension Kit, QSB 5.9L

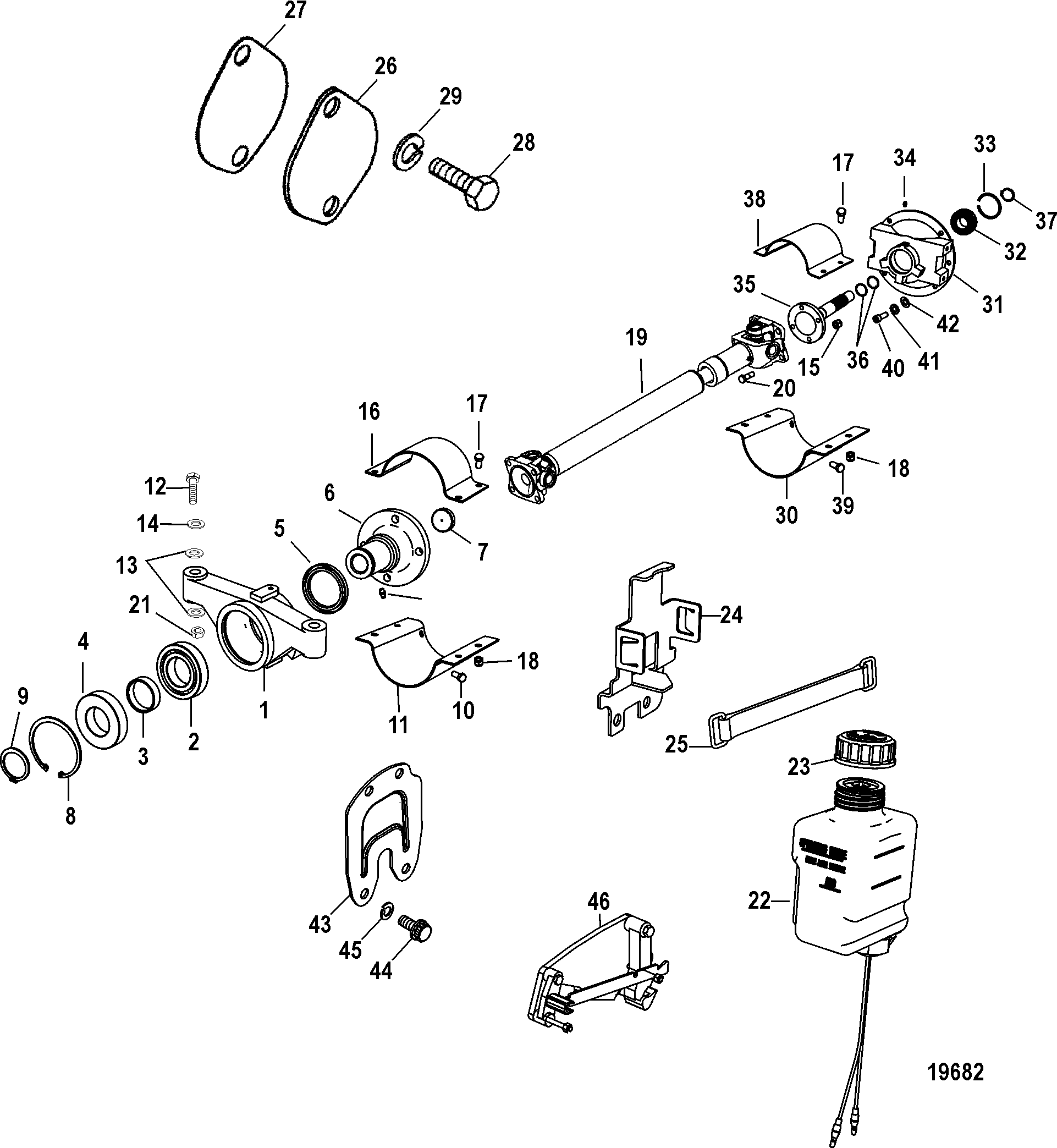

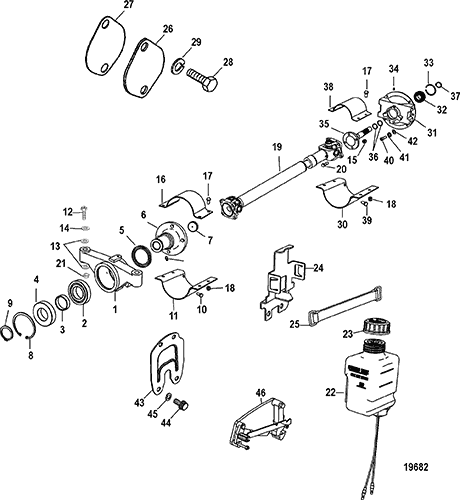

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Compact Hydralic Steering Actuator
- Continuity Kit
- Driveshaft Extension Kit, QSB 5.9L
- Driveshaft Housing and Drive Gears
- Electro-Hydraulic Power Steering Kit
- Gear Housing (Brave One)
- Gear Housing (Bravo Three)
- Gear Housing (Bravo Two)
- Gear Lube Monitor Components
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Ring and Steering Lever
- Gimbal Ring and Steering Lever, AXIUS Gen I
- Mercathode Kit
- Power Steering Actuator
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (BRAVO ONE)
- Special Tools-Gear Housing (BRAVO THREE)
- Special Tools-Gear Housing (BRAVO TWO)
- Special Tools-Transom
- Steering Actuator, Axius (Gen I), Sensors Screw In
- Steering Actuator, Axius (Gen I), Sensors w- E-Clip-End Cap
- Steering Actuator, Axius (Gen II)
- Sterndrive Unit Chart, Bravo I-II-III X (Diesel)
- Sterndrive Unit Chart, Bravo I-II-III X (Gasoline)
- Transom Assembly Chart
- Transom Plate and Shift Cable
- Trim Cylinder Components
- Trim Cylinders and Hydraulic Hoses (Standard Transoms)
- Trim Pump and Motor Components
- Trim Pump Assembly (Complete)
- Universal Joint and Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 866274A01 | EXTENSION KIT, Driveshaft | 1 | ||||||
| 1 | 817416A4 | HOUSING ASSEMBLY | 1 | ||||||
| 2 | 30-93944A2 | BEARING SET, Ball (Includes Item 4) | 1 | ||||||
| 3 | 817417 | SPACER | 1 | ||||||
| 4 | 30-93944A2 | BEARING SET, Ball (Includes Item 2) | 1 | ||||||
| 5 | 26-93924 | SEAL | 1 | ||||||
| 6 | 817415T | SHAFT | 1 | ||||||
| 7 | 19-93921 | EXPANSION PLUG | 1 | ||||||
| 8 | 53-93914 | RING, Retaining | 1 | ||||||
| 9 | 53-93915 | RING, Retaining | 1 | ||||||
| 10 | 10-76926 | SCREW, (.375-16 x .875) | 3 | ||||||
| 11 | 93918A1 | SHIELD, Lower | 1 | ||||||
| 12 | 10-57053 | SCREW, (.500-20 x 4.500) | 2 | ||||||
| 13 | 12-42307 | WASHER | 4 | ||||||
| 14 | 12-35777 | 700-19320 | WASHER, (.5156 x 1.375 x .125) Aluminium | 2 | |||||
| 15 | 11-82670815 | NUT, (.437-20) | 8 | ||||||
| 16 | 862873T | SHIELD | 1 | ||||||
| 17 | 10-76926 | SCREW, (.375-16 x .875) | 8 | ||||||
| 18 | 11-82670912 | NUT, (.375-16) | 8 | 11-82670812 | |||||
| 19 | 45-864286A1 | DRIVESHAFT ASSEMBLY, (63.00 Inches) | 1 | ||||||
| 19 | 8M2000586 | DRIVESHAFT, (9.69 inch) | 1 | ||||||
| 20 | 10-805159 | SCREW, (.437-20 x 1.500) | 8 | ||||||
| 21 | 11-863332 | 700-19350 | NUT, (.500-20) Aluminium | 2 | |||||
| 22 | 806193A51 | MONITOR ASSEMBLY, Drive Lube | 1 | ||||||
| 23 | 36-8067271 | CAP, Drive Lube Monitor | 1 | ||||||
| 24 | 860065A1 | BRACKET KIT | 1 | ||||||
| 25 | 808023T | STRAP | 1 | ||||||
| - | 818304A1 | BLOCK OFF KIT | 1 | ||||||
| 26 | 818304A1 | COVER | 1 | 818304 | |||||
| 27 | 27-818305 | GASKET | 1 | ||||||
| 28 | 10-28636 | SCREW, (.250-20 x .750) | 2 | ||||||
| 29 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 2 | ||||||
| - | 93911A15 | TAILSTOCK KIT | 1 | ||||||
| 30 | 93918A1 | SHIELD, Lower | 1 | ||||||
| - | NSS | NOT SOLD SEPARATE, Housing Assembly | 1 | This Part is not sold separately | |||||
| 31 | NSS | NOT SOLD SEPARATE, Housing | 1 | This Part is not sold separately | |||||
| 32 | 879194A03 | BEARING, Ball | 1 | 30-62780 | |||||
| 33 | 53-94104 | RING, Retaining | 1 | ||||||
| 34 | 22-74036 | FITTING, Grease | 3 | (Use with greased bearing) | |||||
| 34 | 8M2015913 | PLUG, (.250-28 x .320) | 3 | (Use with non-greased bearing) | |||||
| 35 | NSS | NOT SOLD SEPARATE, Shaft | 1 | This Part is not sold separately | |||||
| 36 | 25-29845 | 525-25-29845 | O-RING, (.924 x .103) | 2 | |||||
| 37 | 53-841897T | RING, Retaining | 1 | ||||||
| 38 | 93919A1 | SHIELD, Upper | 1 | ||||||
| 39 | 10-96995 | SCREW, (.375-16 x .880) | 3 | ||||||
| 40 | 10-29081 | SCREW, (.437-14 x 1.250) | 6 | ||||||
| 41 | 13-32993 | LOCKWASHER, (.437) | 6 | ||||||
| 42 | 12-28195 | WASHER, (.469 x 1.125 x .063) | 6 | ||||||
| 43 | 861776A2 | PLATE KIT | 1 | ||||||
| 44 | 10-98794 | 676-9-78129 | 700-28300 | 525-10-98794 | SCREW, (.375-16 x 1.00) | 4 | |||
| 45 | 13-41471 | LOCKWASHER, (.375) | 4 | ||||||
| 46 | 99237A27 | BRACKET ASSEMBLY, Shift | 1 |
