Bravo X One - Serial 0W250000 and Up - Sterndrive Unit Chart, Bravo I-II-III X (Gasoline)

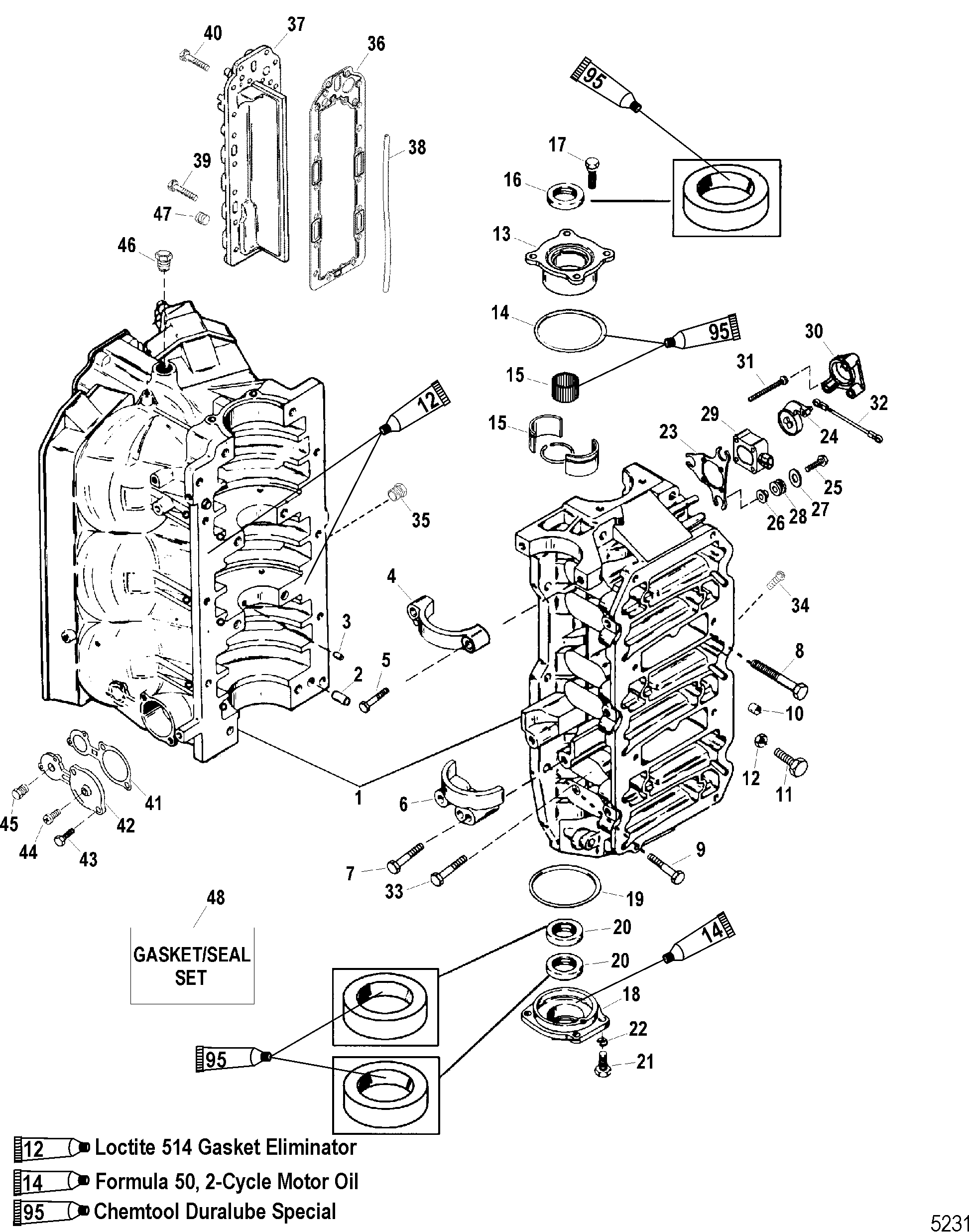

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Compact Hydralic Steering Actuator
- Continuity Kit
- Driveshaft Extension Kit, QSB 5.9L
- Driveshaft Housing and Drive Gears
- Electro-Hydraulic Power Steering Kit
- Gear Housing (Brave One)
- Gear Housing (Bravo Three)
- Gear Housing (Bravo Two)
- Gear Lube Monitor Components
- Gimbal Housing
- Gimbal Housing Cover
- Gimbal Ring and Steering Lever
- Gimbal Ring and Steering Lever, AXIUS Gen I
- Mercathode Kit
- Power Steering Actuator
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (BRAVO ONE)
- Special Tools-Gear Housing (BRAVO THREE)
- Special Tools-Gear Housing (BRAVO TWO)
- Special Tools-Transom
- Steering Actuator, Axius (Gen I), Sensors Screw In
- Steering Actuator, Axius (Gen I), Sensors w- E-Clip-End Cap
- Steering Actuator, Axius (Gen II)
- Sterndrive Unit Chart, Bravo I-II-III X (Diesel)
- Sterndrive Unit Chart, Bravo I-II-III X (Gasoline)
- Transom Assembly Chart
- Transom Plate and Shift Cable
- Trim Cylinder Components
- Trim Cylinders and Hydraulic Hoses (Standard Transoms)
- Trim Pump and Motor Components
- Trim Pump Assembly (Complete)
- Universal Joint and Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| NS | 5-5237100TP | STERNDRIVE, Bravo-I X (1.36:1 Ratio) | 1 | ||||||
| NS | 5-5237200TP | STERNDRIVE, Bravo-I X (1.50:1 Ratio) | |||||||
| NS | 5-5237300TP | STERNDRIVE, Bravo-I X (1.65:1 Ratio) | 1 | ||||||
| NS | 5-5337400TP | STERNDRIVE, Bravo-II X (1.81:1 Ratio) | 1 | ||||||
| NS | 5-5337600TP | STERNDRIVE, Bravo-II X (2.00:1 Ratio) | 1 | ||||||
| NS | 5-5337500TP | STERNDRIVE, Bravo-II X (2.20:1 Ratio) | 1 | ||||||
| NS | 5-5447400TZ | STERNDRIVE, Bravo-III X (1.81:1 Ratio) | 1 | 5-5447400TP | |||||
| NS | 5-5447600TZ | STERNDRIVE, Bravo-III X (2.00:1 Ratio) | 1 | 5-5447600TP | |||||
| NS | 5-5447610TZ | STERNDRIVE, Bravo III X ITS (2.00:1) | 1 | 5-5447610TP | |||||
| NS | 5-5447500TZ | STERNDRIVE, Bravo-III X (2.20:1 Ratio) | 1 | 5-5447500TP | |||||
| NS | 5-5J37100TP | STERNDRIVE, Bravo-I X (1.36:1) | 1 | (SEACORE) | |||||
| NS | 5-5J37200TP | STERNDRIVE, Bravo-I X (1.50:1) | 1 | (SEACORE) | |||||
| NS | 5-5J37300TP | STERNDRIVE, Bravo-I X (1.65:1) | 1 | (SEACORE) | |||||
| NS | 5-5K37400TP | STERNDRIVE, Bravo-II X (1.81:1) | 1 | (SEACORE) | |||||
| NS | 5-5K37600TP | STERNDRIVE, Bravo-II X (2.00:1) | 1 | (SEACORE) | |||||
| NS | 5-5L47400TP | STERNDRIVE, Bravo-III X (1.81:1) | 1 | (SEACORE) | |||||
| NS | 5-5L47600TP | STERNDRIVE, Bravo-III X (2.00:1) | 1 | (SEACORE) | |||||
| NS | 5-5L47500TP | STERNDRIVE, Bravo-III X (2.20:1) | 1 | (SEACORE) | |||||
| NS | 5-5447400TZ | STERNDRIVE, Bravo-III X (1.81:1) Dual Water Pick-Up | 1 | ||||||
| NS | 5-5447600TZ | STERNDRIVE, Bravo-III X (2.00:1) Dual Water Pick-Up | 1 | ||||||
| NS | 5-5447500TZ | STERNDRIVE, Bravo-III X (2.20:1) Dual Water Pick-Up | 1 | ||||||
| NS | 5-5447610TZ | STERNDRIVE, Bravo III X ITS (2.00:1) Dual Water Pick-Up | 1 | ||||||
| NS | 5-5442100TZ | STERNDRIVE, Bravo-III X (1.36:1) Dual Water Pick-Up | 1 |
