Alpha One (Gen. II) 1998 and Up - Serial 0L100040 and Up - Driveshaft Housing And Driveshaft

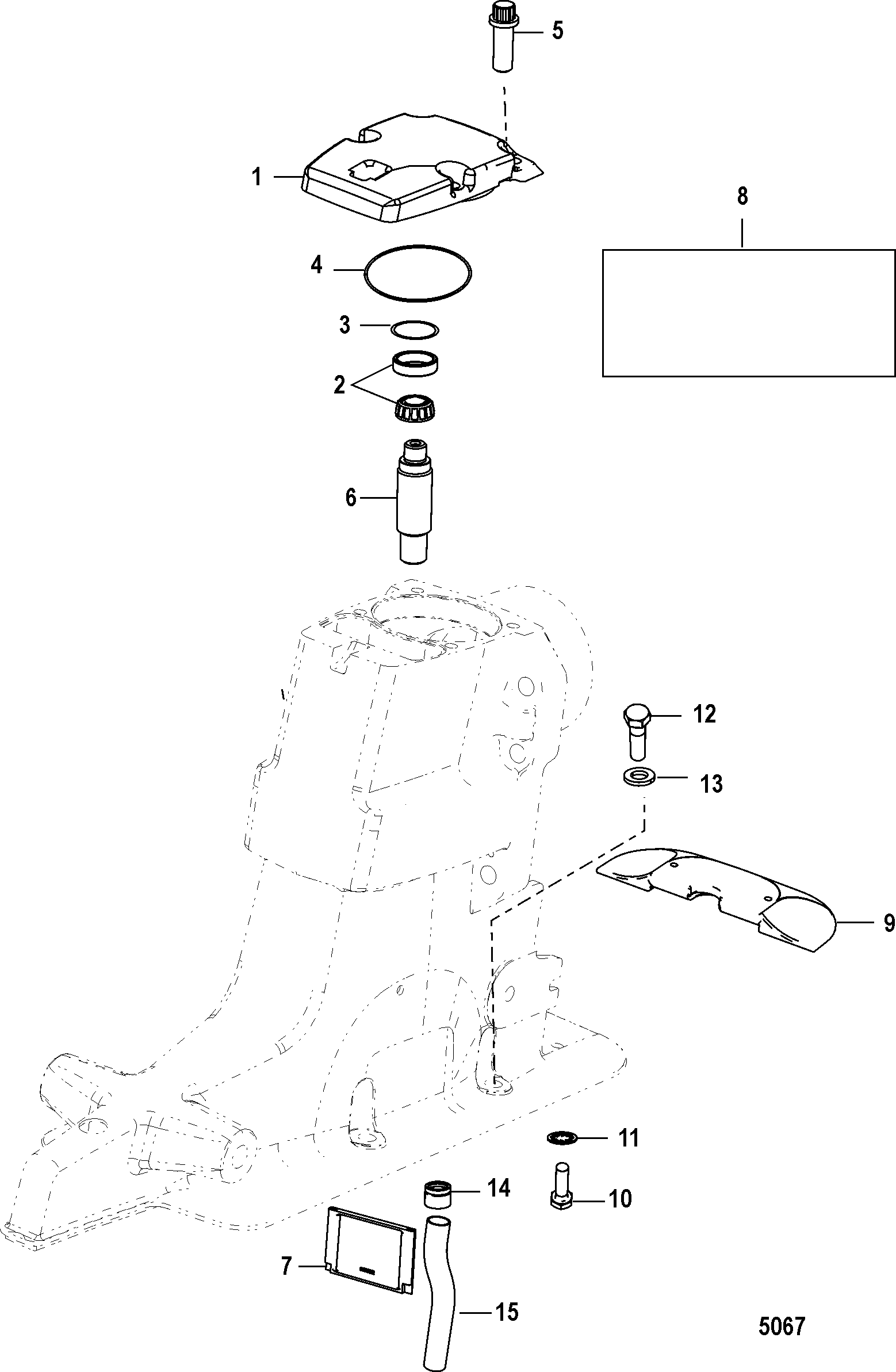

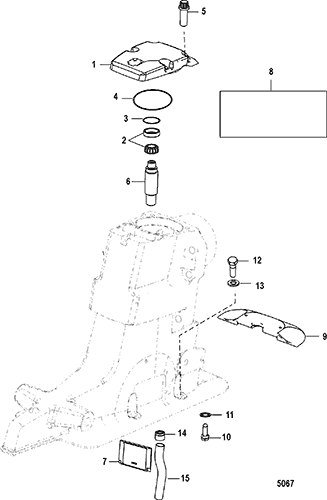

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 828692A1



COVER ASSEMBLY 1

2 31-32575T1
676-9-75106

BEARING ASSEMBLY, Roller 1 31-32575A1
3 15-32563A1

700-23261
SHIM SET AR

4 25-32546
676-9-76546 700-80420
O-RING 1
17
5 10-98794
676-9-78129 700-28300 525-10-98794 SCREW, (.375-16 x 1.00) 4

6 45-557961



DRIVESHAFT, Upper 1

7 815932

700-10991
FILLER WALL 1

8 37-861431A98



DECAL SET (STANDARD ROTATION) 1

8 37-861431A99



DECAL SET (STANDARD ROTATION) 1

8 37-861431A05



DECAL SET (STANDARD ROTATION) 1 37-861431A04 SN# 0W535000 & Up
8 37-861446A98



DECAL SET (COUNTER ROTATION) 1

8 37-861446A99



DECAL SET (COUNTER ROTATION) 1

8 37-898111A05



DECAL SET (COUNTER ROTATION) 1 37-898111A04 SN# 0W535000 & Up
9 821629Q1

700-12711
ANODE ASSEMBLY 1 821629A1
10 10-28668
676-9-78127 700-22440
SCREW, (.250-20 x .875) Stainless Steel 2

11 13-78968
676-9-78144

LOCKWASHER, Internal (.250) 2

12 10-816601

700-28430
SCREW, (.437-20 x 1.500) 4

13 12-45176

700-28420
WASHER, (.453 x .812 x .105) Stainless Steel 4

14 26-88397

700-12831
SEAL 1
17
15 32-860220
676-9-44010 700-12829
TUBE, Water 1
- 26-88397A1

700-87501
SEAL KIT, Driveshaft Housing -
