Alpha One (Gen. II) 1998 and Up - Serial 0L100040 and Up - Transom Plate And Shift Cable

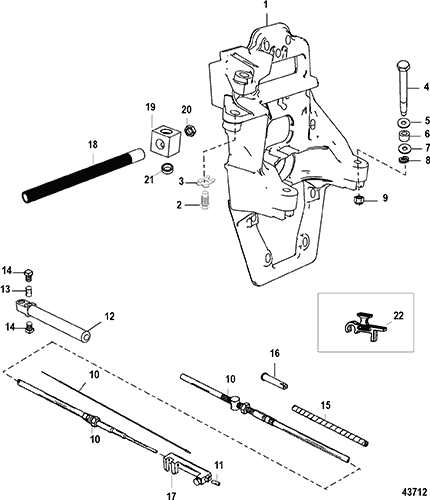

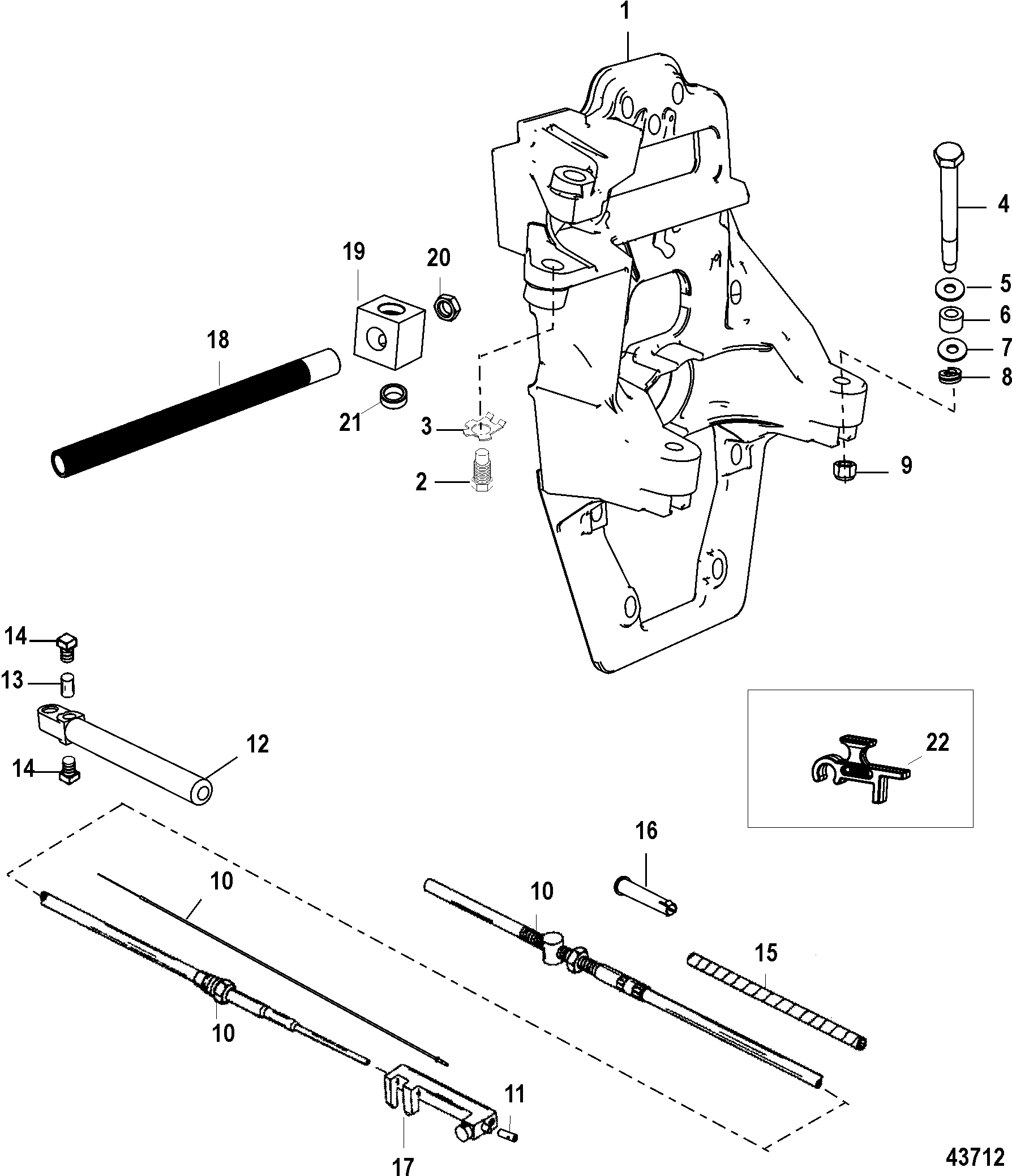

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Compact Hydralic Steering Actuator
- Continuity Kit
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Driveshaft Housing Chart
- Gear Housing (Driveshaft)(Standard Rotation)
- Gear Housing (Prop Shaft)(Counter Rotation)
- Gear Housing (Prop Shaft)(Standard Rotation)
- Gear Housing Chart(Counter Rotation)
- Gear Housing Chart(Standard Rotation)
- Gear Housing(Driveshaft)(Counter Rotation)
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump And Bracket
- Mercathode Components
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Pump-Motor (Bottom Mt Reservoir)(Design I-14336A8)
- Pump-Motor (Top Mt Reservoir) (Design III - 14336A31)
- Pump-Motor (Top Mt Reservoir)(Design I-14336A20)
- Pump-Motor (Top Mt Reservoir)(Design II-14336A25)
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (Counter Rotation)
- Special Tools-Gear Housing (Standard Rotation)
- Special Tools-Transom
- Stern Drive Unit Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 44117A8 | PLATE ASSEMBLY, Transom | 1 | ||||||
| 2 | 10-42253 | BOLT | 2 | ||||||
| 3 | 14-42254 | WASHER | 2 | ||||||
| 4 | 10-97934 | 700-19310 | SCREW, (.500-20 x 5.370) Special | 2 | |||||
| 5 | 12-35777 | 700-19320 | WASHER, (.5156 x 1.375 x .125) Aluminium | 2 | |||||
| 6 | 23-99299 | 700-19340 | SPACER, (.520 x .870 x .630) | 2 | |||||
| 7 | 12-32834 | 700-30020 | WASHER, (.9375 x 1.750 x .172) | 2 | |||||
| 8 | 13-33734 | 700-19330 | LOCKWASHER, (.500) | 2 | |||||
| 9 | 11-863332 | 700-19350 | NUT, (.500-20) | 2 | 11-99298 | ||||
| 10 | 865436A02 | 700-21451 | CABLE ASSEMBLY, Shift | 1 | 19543A8 | ||||
| 11 | 10-31700 | 676-9-72152 | 700-21090 | SCREW, (.250-28 x .750) | 1 | ||||
| - | 43433A01 | GUIDE KIT | 1 | ||||||
| 12 | 43433 | 676-9-72150 | 700-21430 | GUIDE | 1 | ||||
| 13 | 43436 | 700-21432 | ANCHOR | 1 | |||||
| 14 | 10-20518 | 676-9-72164 | 700-21433 | SET SCREW, (#8-32) | 2 | ||||
| 15 | 38473 | 700-21462 | WRAPPING, Spiral | 1 | |||||
| 16 | 14705 | 700-21463 | INSERT | 1 | |||||
| 17 | 8507522 | SLIDE | 1 | 8507521 | |||||
| - | 95846A3 | TUBE ASSEMBLY, Steering | 1 | (Non Power Steering) | |||||
| 18 | 96400 | TUBE, Steering | 1 | (Non Power Steering) | |||||
| 19 | 95846 | SWIVEL BLOCK | 1 | (Non Power Steering) | |||||
| 20 | 11-47525 | NUT, (.875-14) | 1 | (Non Power Steering) | |||||
| 21 | 23-95803 | BUSHING | 2 | (Non Power Steering) | |||||
| 22 | 91-865232 | TOOL, Shift Slide | 1 |
