SSM Six - All Serials - Gear Housing Assembly (SSM Six - Driveshaft)

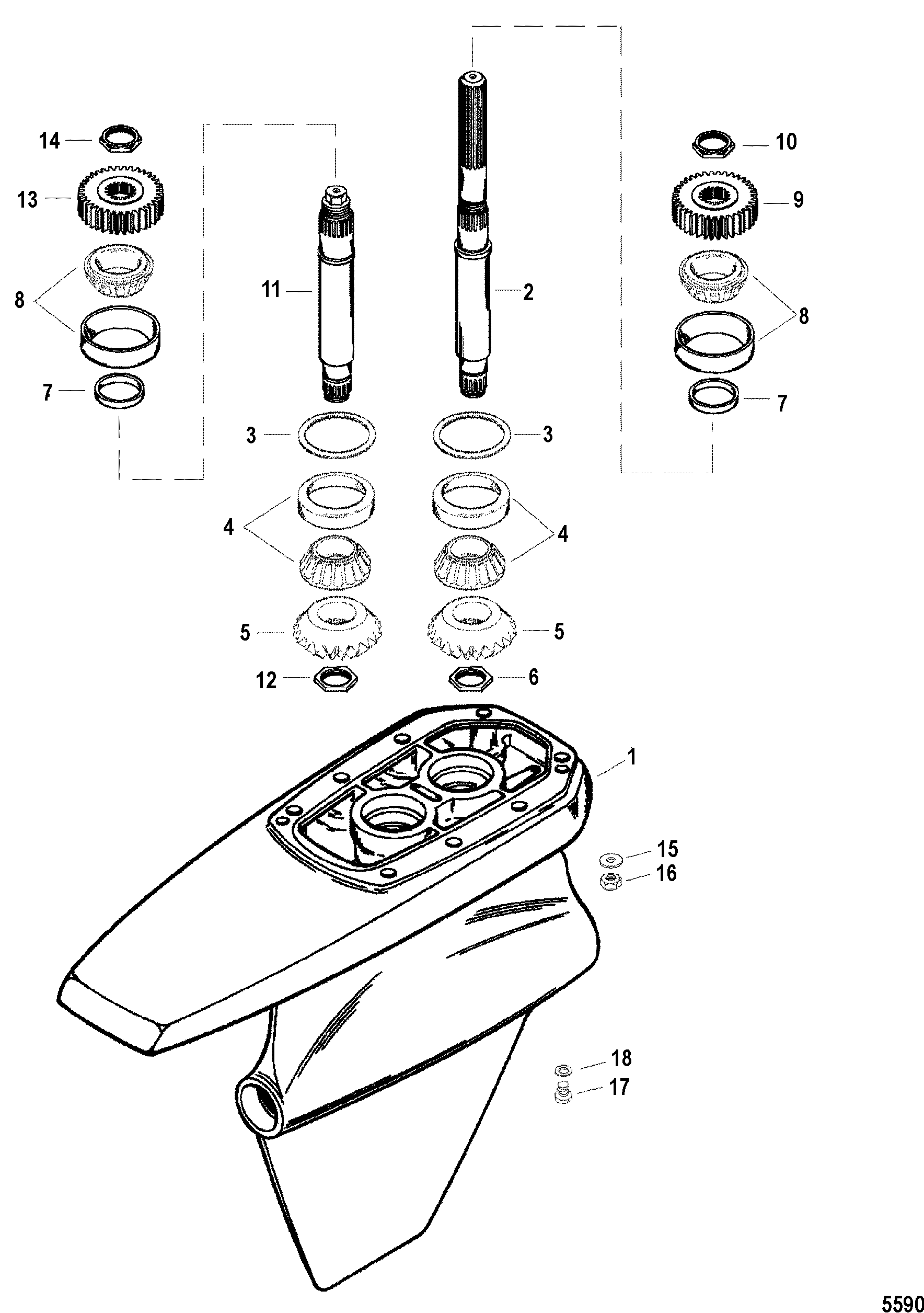

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Cable Actuator Components, Design-I
- Cable Actuator Components, Design-II
- Connector Block And Hydraulic Hoses
- Gear Housing Assembly (Dry Sump Six-NXT1 - Driveshaft)
- Gear Housing Assembly (Dry Sump Six-NXT1 - Propshaft)
- Gear Housing Assembly (SSM Seven - Driveshaft-Propshaft)
- Gear Housing Assembly (SSM Six - Driveshaft)
- Gear Housing Assembly (SSM Six - Propshaft)
- Gimbal Housing Assembly (Close Couple)
- Gimbal Housing Assembly (Driveline)
- Gimbal Ring And Bell Housing Assembly (With Trim Sensor)
- Gimbal Ring And Bell Housing Assembly (Without Trim Sensor)
- Inner Transom Plate Assembly (Dry Sump Six)
- Inner Transom Plate Assembly (SSM Six And Seven)
- Prop Ventilation Kit, SSM Six
- Spacer Kit (.500 Inch Thru 3.00 Inch)-SSM Six
- Spacer Kit (1.00 Inch Thru 3.00 Inch)-SSM Seven
- Spacer Kit (5.75 Inch)-SSM Six
- Steering Cylinder Assembly
- Tool List (Dry Sump Six-NXT1 SSM Six - Lower)
- Tool List (Dry Sump Six-NXT1 SSM Six - Transom)
- Tool List (Dry Sump Six-NXT1 SSM Six - Upper)
- Tool List (SSM Seven)
- Tool List (SSM Six)
- Trim Cylinder Assembly (With Trim Sensor Plate)
- Trim Cylinder Assembly (Without Trim Sensor Plate)
- Trim Pump Assembly (843017T03)
- Trim Pump Assembly (846860T1)
- Trim Pump Components (Design I - 846859A1)
- Trim Pump Components (Design II - 846859A1)
- U Joint Housing Assembly (Dry Sump Six-NXT1 SSM)
- U Joint Housing Assembly (SSM Seven)
- U Joint Housing Assembly (SSM Six - Early Style)
- U Joint Housing Assembly (SSM Six - Late Style)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1680-846795A3 | GEAR HOUSING ASSEMBLY | 1 | 1680-846795A1 | This Part is No Longer Available Satin | ||||
| 1 | 1680-846306A16 | GEAR HOUSING ASSEMBLY | 1 | 1680-846306A7 | This Part is No Longer Available Painted | ||||
| 2 | 45-846326 | DRIVESHAFT, Front | 1 | ||||||
| 3 | 15-846351A1 | SHIM SET | 2 | ||||||
| 4 | 31-846480T1 | BEARING SET, Cup And Cone | 2 | ||||||
| 5 | NSS | NOT SOLD SEPARATE, Pinion Gear | 1 | This Part is not sold separately NOTE: Order Gear Set - See Gear Housing Lower Assembly SSM - Propshaft Reference No. 27 Or 34 |
|||||
| 6 | 11-846396 | NUT, (1.25-16) | 1 | ||||||
| 7 | 23-846505500 | SPACER, (.2500) | AR | ||||||
| 7 | 23-846505505 | SPACER, (.2505) | AR | ||||||
| 7 | 23-846505510 | SPACER, (.2510) | AR | ||||||
| 7 | 23-846505515 | SPACER, (.2515) | AR | ||||||
| 7 | 23-846505520 | SPACER, (.2520) | AR | ||||||
| 7 | 23-846505525 | SPACER, (.2525) | AR | ||||||
| 7 | 23-846505530 | SPACER, (.2530) | AR | ||||||
| 7 | 23-846505535 | SPACER, (.2535) | AR | ||||||
| 7 | 23-846505540 | SPACER, (.2540) | AR | ||||||
| 7 | 23-846505545 | SPACER, (.2545) | AR | ||||||
| 7 | 23-846505550 | SPACER, (.2550) | AR | ||||||
| 7 | 23-846505555 | SPACER, (.2555) | AR | ||||||
| 7 | 23-846505560 | SPACER, (.2560) | AR | ||||||
| 7 | 23-846505565 | SPACER, (.2565) | AR | ||||||
| 7 | 23-846505570 | SPACER, (.2570) | AR | ||||||
| 7 | 23-846505575 | SPACER, (.2575) | AR | ||||||
| 7 | 23-846505580 | SPACER, (.2580) | AR | ||||||
| 7 | 23-846505585 | SPACER, (.2585) | AR | ||||||
| 7 | 23-846505590 | SPACER, (.2590) | AR | ||||||
| 7 | 23-846505595 | SPACER, (.2595) | AR | ||||||
| 7 | 23-846505600 | SPACER, (.2600) | AR | ||||||
| 7 | 23-846505605 | SPACER, (.2605) | AR | ||||||
| 7 | 23-846505610 | SPACER, (.2610) | AR | ||||||
| 7 | 23-846505615 | SPACER, (.2615) | AR | ||||||
| 7 | 23-846505620 | SPACER, (.2620) | AR | ||||||
| 7 | 23-846505625 | SPACER, (.2625) | AR | ||||||
| 7 | 23-846505630 | SPACER, (.2630) | AR | ||||||
| 7 | 23-846505635 | SPACER, (.2635) | AR | ||||||
| 7 | 23-846505640 | SPACER, (.2640) | AR | ||||||
| 7 | 23-846505645 | SPACER, (.2645) | AR | ||||||
| 7 | 23-846505650 | SPACER, (.2650) | AR | ||||||
| 7 | 23-846505655 | SPACER, (.2655) | AR | ||||||
| 7 | 23-846505660 | SPACER, (.2660) | AR | ||||||
| 7 | 23-846505665 | SPACER, (.2665) | AR | ||||||
| 7 | 23-846505670 | SPACER, (.2670) | AR | ||||||
| 7 | 23-846505675 | SPACER, (.2675) | AR | ||||||
| 7 | 23-846505680 | SPACER, (.2680) | AR | ||||||
| 7 | 23-846505685 | SPACER, (.2685) | AR | ||||||
| 7 | 23-846505690 | SPACER, (.2690) | AR | ||||||
| 8 | 31-30894A1 | 676-9-75118 | 700-11330 | BEARING SET, Cup And Cone | 2 | ||||
| 9 | 8M0050238 | GEAR, Drive | 1 | 43-846323 | |||||
| 10 | 11-846393 | NUT, (1.560-16 LH) | 1 | ||||||
| 11 | 45-8M0050952 | DRIVESHAFT, Rear | 1 | 45-846327 | |||||
| 12 | 11-846395 | NUT, Left Hand (1.250-16) | 1 | ||||||
| 13 | 8M0050239 | GEAR, Driven | 1 | 43-846324 | |||||
| 14 | 11-846394 | NUT, (1.440-16) | 1 | ||||||
| 15 | 12-844850 | WASHER, (.660 x 1.310 x .09) Stainless Steel | 8 | ||||||
| 16 | 11-47302 | NUT, (.562-18) Stainless Steel | 8 | ||||||
| 17 | 10-79953Q04 | SCREW KIT, (.375-16 x .250) , Drain | 1 | 10-79953A2 | |||||
| 18 | 12-191833 | 525-12-191833 | WASHER, Fiber | 1 | 12-19183 |
