525 EFI - Serial 0M956327 Thru 0M962885 - Engine Components (Cylinder Block And Camshaft)

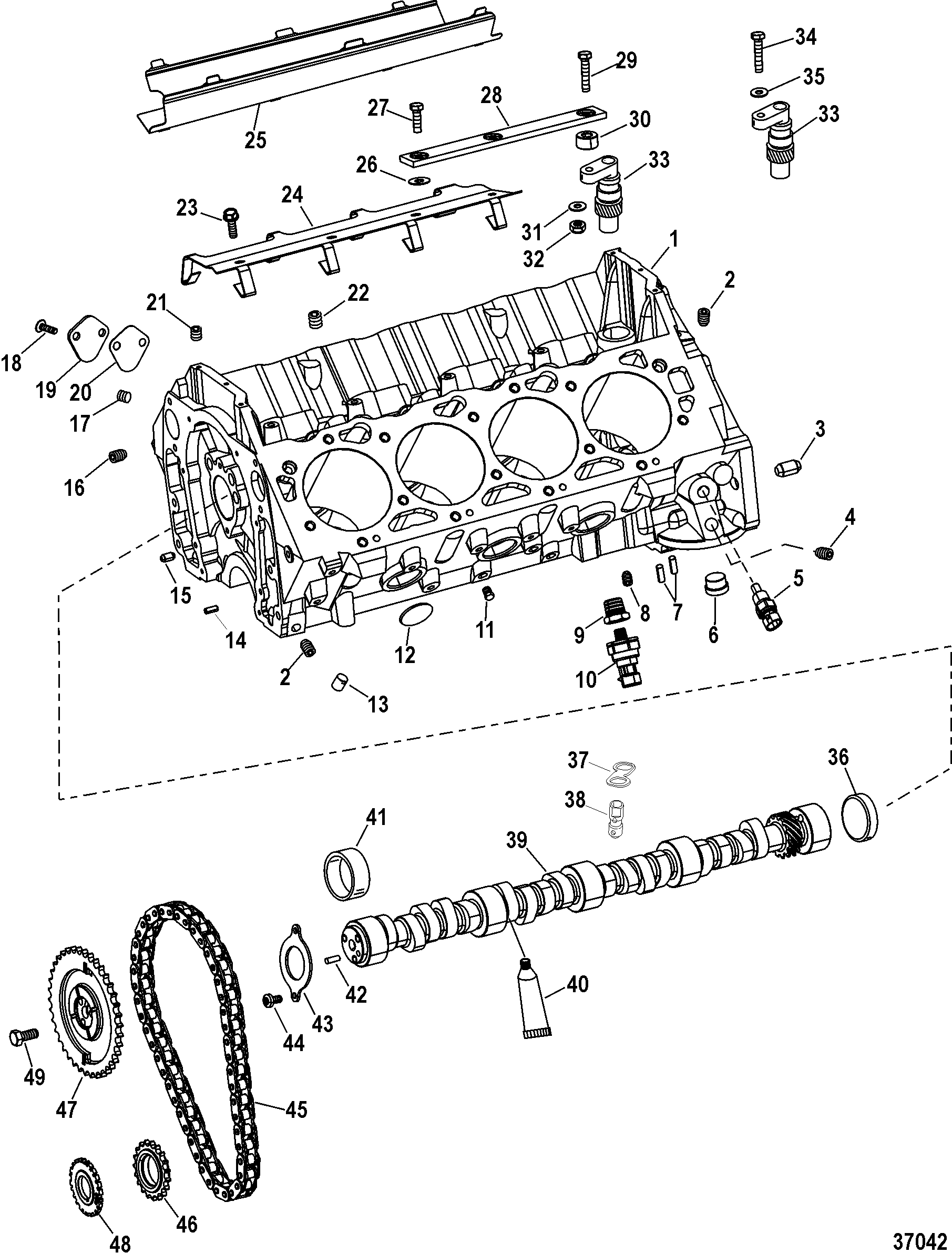

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)(Bravo)
- Flywheel Housing (Driveline)(NXT1)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul(27-843073A06)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates (Engine)
- Oil Cooler (Transmission)(Bravo)
- Oil Cooler (Transmission)(NXT1)
- Oil Cooler And Oil Filter(Engine)
- Oil Pan And Oil Pump
- Paint Color Chart
- Power-Assisted Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo)
- Shift Plate Components (NXT1)
- Tool List (NXT1 Transmission)
- Tool List (Special - Engine)
- Transmission (Reservoir-Pump)(NXT1)
- Transmission (Shaft And Gears)(NXT1)
- Transmission (Shift Cover)(NXT1)
- Transmission (Tailstock)(NXT1)
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly
- Trim Pump-Motor Assembly (865380A13)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 841178A05 | PARTIAL ENGINE ASSEMBLY | 1 | NOTE: Bravo Models With Driveline Also Require Pilot Bushing Part Number | 23-823108 | |||||
| 2 | 22-32561 | PLUG, Pipe - Allen Head (.250-18), Oil Gallery Rear Cam Plugs | 3 | 5 | ||||||
| 3 | 17-843379 | PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing | 2 | 5 | ||||||
| 4 | 22-328022 | PLUG, Pipe (.125-27) Brass | 1 | SN# 0M959863 & Up | ||||||
| 5 | 805218T | 676-9-42402 | SENSOR, Coolant Temperature | 1 | ||||||
| 6 | 19-8M0007929 | PLUG, Block Off | 1 | 5 | ||||||
| 7 | 17-843378 | PIN, Dowel (.250) Bottom Of Block | 2 | 5 | ||||||
| 8 | 22-36373 | PLUG, (.375-18) Hex - Steel | 1 | NOTE: Bottom Of Block Oil Plug 5 | ||||||
| 8 | 22-36373 | PLUG, (.375-18) Hex - Steel | 2 | NOTE: Rear Of Block Oil Plugs 5 | ||||||
| 9 | 22-64013 | FITTING, (.375 Male To .125 Female) | 1 | |||||||
| 10 | 881879T11 | SENSOR, Pressure (0 - 100 PSI), Oil Pressure | 1 | 881879011 | ||||||
| 11 | 22-36382 | 700-21887 | FITTING, (.250-18 x .62) Brass, Lower Side Of Block | 2 | 5 | |||||
| 12 | 19-34270 | EXPANSION PLUG, (1.625) | 6 | 5 | ||||||
| 13 | 17-845758 | PIN, Dowel, .660 Relaxed Outside Diameter x .500 | 4 | 5 | ||||||
| 14 | 17-843143 | PIN, Spring, Port Side - Timing Cover | 1 | 5 | ||||||
| 15 | 17-843378 | PIN, Dowel (.250) Timing Cover | 1 | 5 | ||||||
| 16 | 845606 | PLUG, (.250-18 x .410) Allen Head With Hole, Oil Gallery | 2 | 5 | ||||||
| 17 | 22-36373 | PLUG, (.375-18) Hex - Steel | 1 | SN# 0M959863 & Up 5 | ||||||
| 18 | 10-16498 | SCREW, (.375-16 x .750) Button Head - Stainless Steel | 2 | SN# 0M959863 & Up 5 | ||||||
| 19 | 8M0001406 | PLATE, Block Off - Fuel Pump | 1 | SN# 0M959863 & Up 5 | ||||||
| 20 | 27-34213 | 676-9-61041 | 700-31360 | GASKET, Block Off Plate | 1 | SN# 0M959863 & Up 5 | ||||
| 21 | 22-390721 | PLUG, Pipe (.125-27) Brass | 1 | SN# 0M959863 & Up 5 | ||||||
| 22 | 22-328022 | PLUG, Pipe (.125-27) Brass, Oil Gallery | 3 | 5 | ||||||
| 23 | 10-841389 | SCREW, (.312-18 x .620) | 2 | Design I - With Support 5 | ||||||
| 23 | 10-841389 | SCREW, (.312-18 x .620) | 4 | Design II - Without Support 5 | ||||||
| 24 | 8M0050807 | RETAINER, Lifter Guide | 1 | 845755 | 5 | |||||
| 25 | 845756T | SHIELD, Oil Intake | 1 | 816073 | 5 | |||||
| 26 | 12-63032 | WASHER, (.320 x 1.00 x .120) Stainless Steel | 2 | Design I - With Support 5 | ||||||
| 27 | 10-35386 | SCREW, (.312-18 x 1.00) | 2 | Design I - With Support 5 | ||||||
| 28 | 842956 | SUPPORT, Oil Pump Drive | 1 | Design I SN# 0M956327 THRU 0M959862 5 | ||||||
| 29 | 10-73657 | SCREW, (.312-18 x 1.50) | 1 | Design I - With Support 5 | ||||||
| 30 | 23-842963 | SPACER | 1 | Design I - With Support 5 | ||||||
| 31 | 12-56720 | WASHER, (.330 x .750 x .060) Stainless Steel | 1 | Design I - With Support 5 | ||||||
| 32 | 11-82670910 | NUT, (.312-18) Stainless Steel | 1 | Design I - With Support 5 | ||||||
| 33 | 881669 | DRIVE, Oil Pump | 1 | 5 | ||||||
| 34 | 10-35386 | SCREW, (.312-18 x 1.00) | 1 | Design II - Without Support 5 | ||||||
| 35 | 12-56720 | WASHER, (.330 x .750 x .060) Stainless Steel | 1 | Design II - Without Support 5 | ||||||
| 36 | 19-94140 | EXPANSION PLUG | 1 | 5 | ||||||
| 37 | 845754 | GUIDE, Lifter | 8 | 5 | ||||||
| 38 | 849947T01 | LIFTER | 16 | 849947T | 5 | |||||
| 39 | 8M0043065 | CAMSHAFT | 1 | 2409-840919T | 5 | |||||
| 40 | 92-15875 | LUBE, Camshaft (8 Ounces) | AR | |||||||
| 41 | 23-85684 | BEARING SET | 1 | 5 | ||||||
| 42 | 17-843378 | PIN, Dowel (.250) | 1 | 5 | ||||||
| 43 | 845941 | RETAINER, Gear Thrust | 1 | 5 | ||||||
| 44 | 10-845943 | SCREW, (.250-20 x .500) | 2 | 5 | ||||||
| 45 | 8M8023355 | TIMING SET KIT | 1 | 5 | ||||||
| 46 | NSS | NOT SOLD SEPARATE, Crankshaft Sprocket | 1 | This Part is not sold separately 5 | ||||||
| 47 | NSS | NOT SOLD SEPARATE, Camshaft Sprocket | 1 | This Part is not sold separately 5 | ||||||
| 48 | 8M0050760 | WHEEL, Sensor Target | 1 | 8M0000102 | 5 | |||||
| 49 | 10-845942 | SCREW, (.312-18 x .750) | 3 | 5 | ||||||
| - | 27-843073A06 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
