525 EFI - Serial 0M956327 Thru 0M962885 - Exhaust Header - Tailpipe Assembly

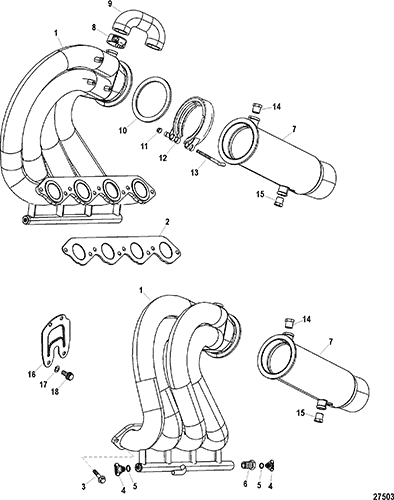

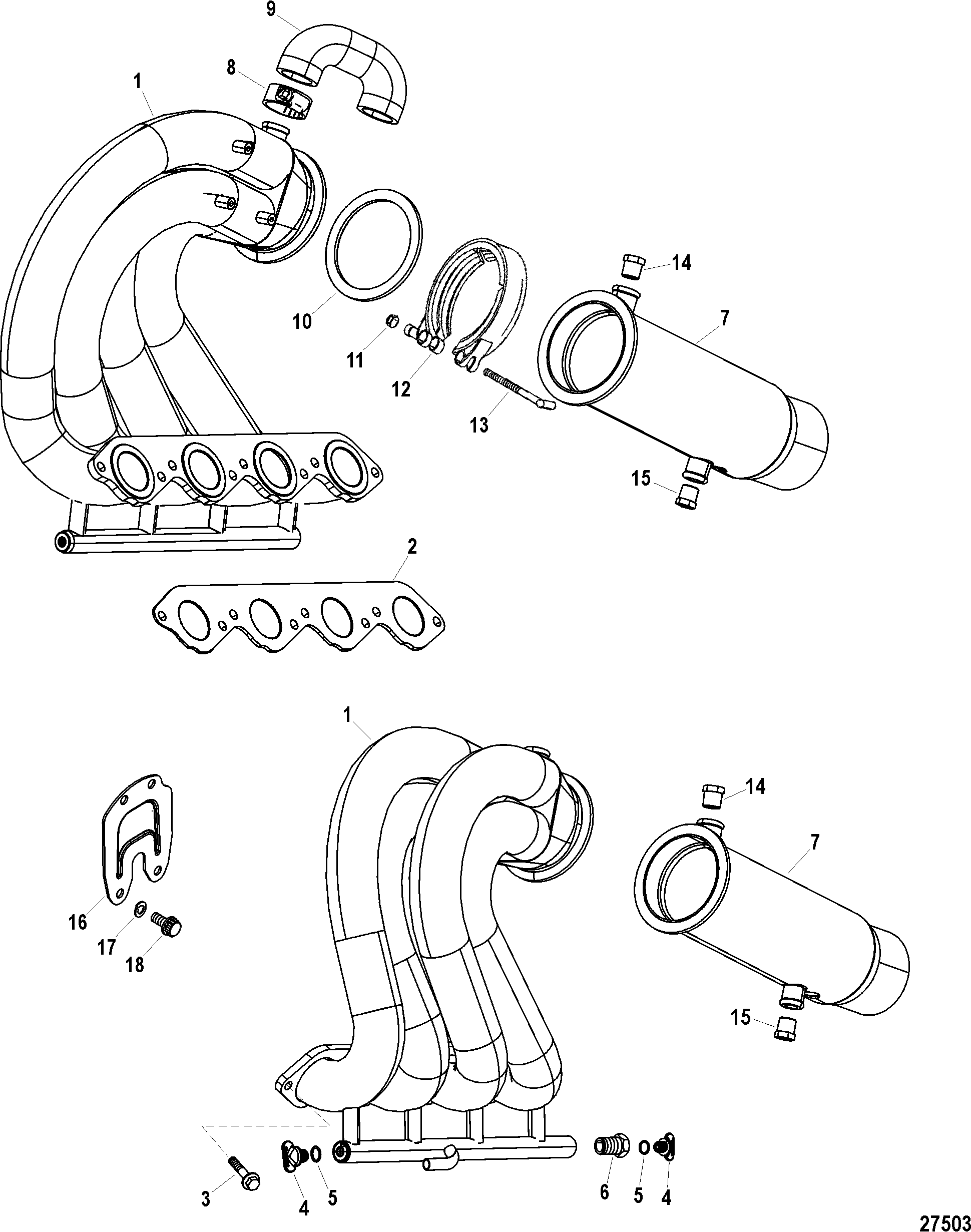

Section Drawing: (Hover or click to view larger)

Return To Parts Finder

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 843933T03         HEADER KIT, Exhaust - Starboard, Also Includes Tailpipe Gasket 27-842454 1 843933A01 This Part is No Longer Available SN# 0M956602 THRU 0M960481
1 843933T03         HEADER KIT, Exhaust - Starboard, Also Includes Tailpipe Gasket 27-842454 1 843933T02 This Part is No Longer Available SN# 0M960482 & Up
1 843934T03         HEADER KIT, Exhaust - Port, Also Includes Tailpipe Gasket 27-842454 1 843934A01 This Part is No Longer Available SN# 0M956602 THRU 0M960481
1 843934T03         HEADER KIT, Exhaust - Port, Also Includes Tailpipe Gasket 27-842454 1 843934T02 This Part is No Longer Available SN# 0M960482 & Up
2 27-840940         GASKET, Exhaust Header 2
2,5
3 10-821131         SCREW, (.375-16 x 1.00) 16

4 22-806608A02         PLUG KIT, (.500-13) Royal Blue 4 22-806608A1 Design I - Marked 22-806608
4 22-806608A02         PLUG ASSEMBLY, (.500-13) Blue 4
Design II - Marked 8M2000874
5 25-831985         O-RING, (.468 x .078) 4
Design I 2
5 25-26802         SEAL 4 25-8M2000926 Design II
6 22-8M0022059         BUSHING, Reducer (.750-14/.500-13) 2

7 8M0025008         TAILPIPE ASSEMBLY 2   This Part is No Longer Available
8 54-180763         CLAMP, Worm Gear 4

9 32-8424181         HOSE, Molded 2

10 27-842454         GASKET, Tailpipe 2
2
11 11-82671110         NUT, (.250-20) 2 11-842458
12 54-842456         CLAMP, Band 2

13 10-842457         T BOLT, (.250-20) 2

14 22-842453406         FITTING, Restrictor (.406) 2

15 22-32803     700-21894   PLUG, Pipe (.375-18) Brass 2

16 861776A2         PLATE KIT, Exhaust Blockoff 1

17 13-41471         LOCKWASHER, (.375) 4

18 10-98794   676-9-78129 700-28300 525-10-98794 SCREW, (.375-16 x 1.00) 4

- 27-843073A06         GASKET/SEAL SET, Engine Overhaul 1
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
- 841178A05         PARTIAL ENGINE ASSEMBLY 1
