600 SCi - Serial 0M962886 and Up - Electrical Components (Mercathode) Bravo

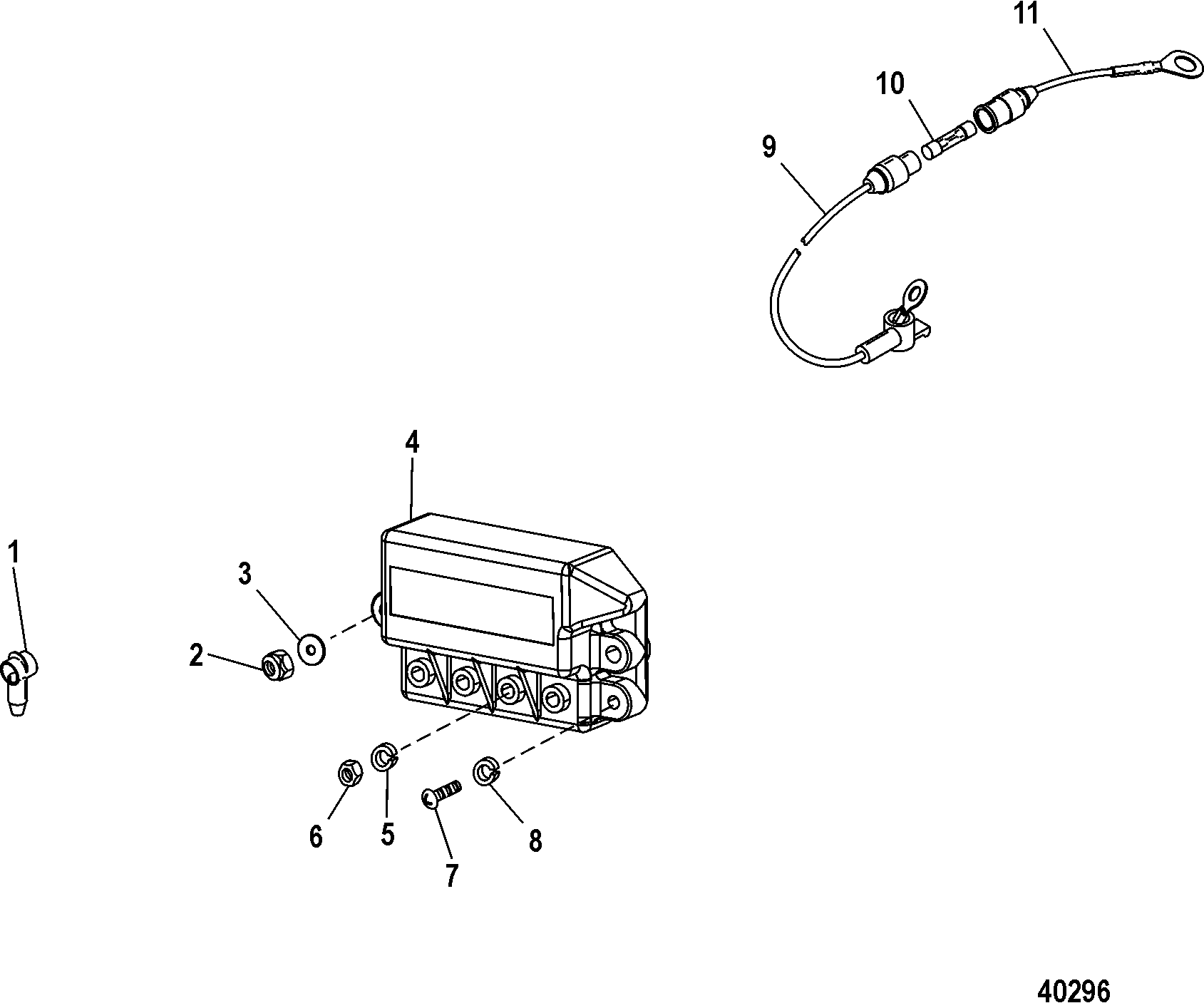

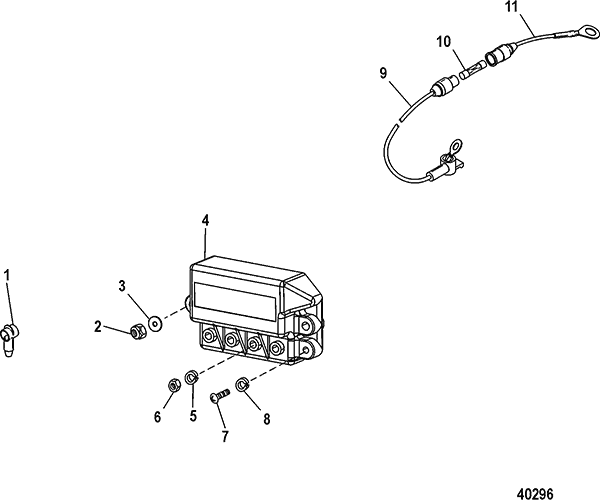

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 85-65208



BOOT, Insulator - Black 3
2 11-826709106



NUT, (#10-32) Stainless Steel 2

3 12-30164



WASHER, (.192 x .375 x .0312) Stainless Steel 2
4 42600A09



MERCATHODE ASSEMBLY 1

5 13-26996



LOCKWASHER, (#10) Stainless Steel 4
6 11-68219



NUT, (#10-32) Stainless Steel 4
7 10-62568



SCREW, (#10-16 x .375) 1
8 13-26996



LOCKWASHER, (#10) Stainless Steel 1
9 84-95084A9



CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip 1
10 88-79091



FUSE, 20 Ampere 1
11 84-95084A10



CABLE ASSEMBLY, (5.00 Inches) Red 1
