600 SCi - Serial 0M962886 and Up - Exhaust Header - Tailpipe Assembly

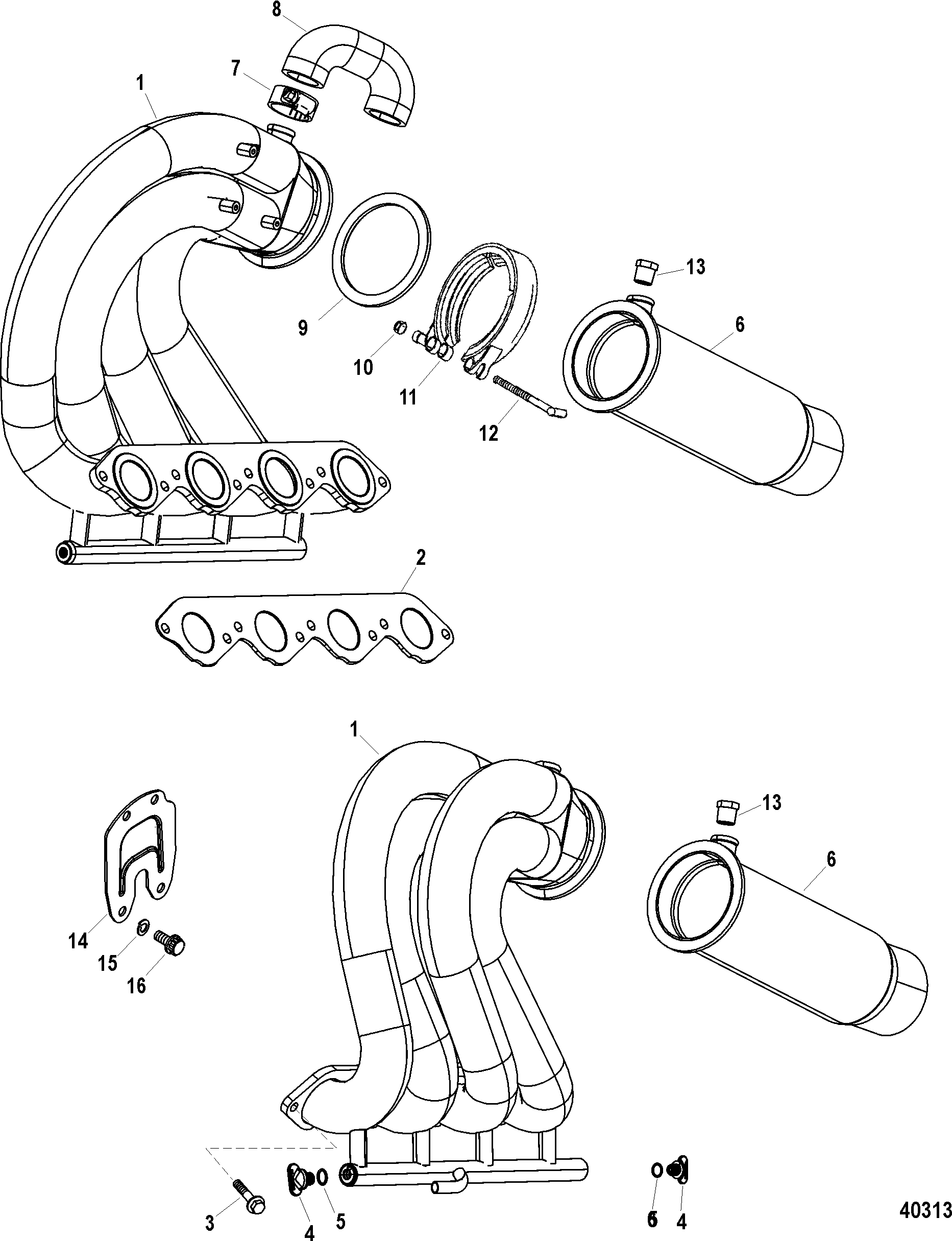

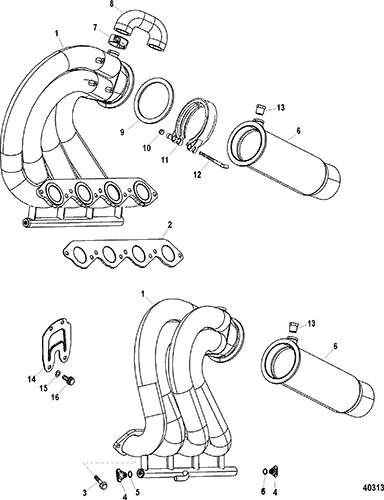

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Mounting
- Closed Cooling System Components
- Driveshaft Extension Components (Bravo)
- Electrical Components (Coils)
- Electrical Components (Engine Harness)
- Electrical Components (Mercathode) Bravo
- Electrical Components (Mounting Box)
- Electrical Components (Starter Motor)
- Engine Comp. (Crankshaft- Piston- Conn. Rods) Bravo
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)(Bravo)
- Fuel Lines And Fuel Components
- Fuel Pump And Fuel Cooler
- Gasket-Seal Set - Engine Overhaul(27-843073A05)
- Intake Components (Air Plenum)
- Intake Components (Boost Valve)
- Intake Components (Intercooler And Manifold)
- Intake Components (Supercharger Assembly)
- Mount Plates
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Paint Color Chart
- Power-Assisted Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components(Bravo)
- Tool List(Special - Engine)
- Trim Pump Assembly (Bravo)
- Trim Pump-Motor Assembly (Bravo)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 843934T03 | HEADER KIT, Exhaust - Port, Includes Gasket Ref No 9 | 1 | This Part is No Longer Available | |||||
| 1 | 843933T03 | HEADER KIT, Exhaust - Starboard, Includes Gasket Ref No 9 | 1 | This Part is No Longer Available | |||||
| 2 | 27-840940 | GASKET, Exhaust Header | 2 | 2,5 | |||||
| 3 | 10-821131 | SCREW, (.375-16 x 1.00) | 16 | ||||||
| 4 | 22-806608A02 | PLUG ASSEMBLY, (.500-13) Blue | 2 | ||||||
| 5 | 25-26802 | SEAL | 2 | 25-8M2000926 | |||||
| 6 | 843384A1 | TAILPIPE ASSEMBLY, Port | 1 | This Part is No Longer Available Without Intercooler Water Exit Please email and ask us for the service bulletin regarding this part | |||||
| 6 | 842964A01 | TAILPIPE ASSEMBLY, Starboard | 1 | This Part is No Longer Available With Intercooler Water Exit Please email and ask us for the service bulletin regarding this part | |||||
| 7 | 54-180763 | CLAMP, Worm Gear | 4 | ||||||
| 8 | 32-8424181 | HOSE, Molded | 2 | ||||||
| 9 | 27-842454 | GASKET, Tailpipe | 2 | 2 | |||||
| 10 | 11-82671110 | NUT, (.250-20) | 2 | 11-842458 | |||||
| 11 | 54-842456 | CLAMP, Band | 2 | ||||||
| 12 | 10-842457 | T BOLT, (.250-20) | 2 | ||||||
| 13 | 22-842453406 | FITTING, Restrictor (.406) | 2 | ||||||
| 14 | 861776A2 | PLATE KIT | 1 | ||||||
| 15 | 13-41471 | LOCKWASHER, (.375) | 4 | ||||||
| 16 | 10-98794 | 676-9-78129 | 700-28300 | 525-10-98794 | SCREW, (.375-16 x 1.00) | 4 | |||
| - | 27-843073A05 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
