850 SCi - Serial 0M962886 and Up - Cooling Components (Water Thermostat Housing)

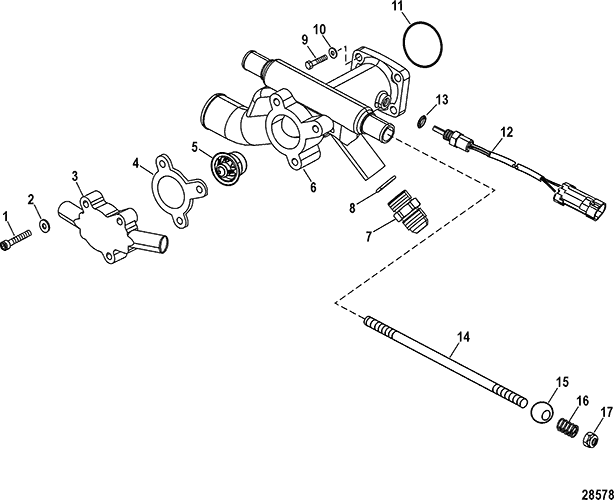

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Sea Water Pump Mounting
- Cooling (Water Hoses And Fittings - Port)
- Cooling (Water Hoses And Fittings - Starboard)
- Cooling Components (Sea Water Pump)
- Cooling Components (Water Thermostat Housing)
- Electrical Components (Ignition Coils)
- Electrical Components (Mounting Box)
- Electrical Components (Starter Motor)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block)
- Engine Components (Cylinder Head)
- Engine Components (Drive Belt)
- Engine Components (Front Cover And Camshaft)
- Engine Components (Water Pump)
- Filter Kit (Remote) (Water - Fuel Separating)
- Flywheel Housing And Components
- Fuel Line Components
- Fuel Pump (Remote)
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-842593A01)
- Intake Components (Air Plenum And Flame Arrestor)
- Intake Components (Boost Valve)
- Intake Components (Manifold)
- Intake Components (Supercharger) (1200)
- Intake Components (Supercharger) (850-1075)
- Intake Components (Water Intercooler)
- Mount Plates (Engine)
- Oil Cooler - Transmission
- Oil Filter Adaptor And Components
- Oil Hoses And Fittings (Port Side View)
- Oil Hoses And Fittings (Starboard Side View)
- Oil Pan And Oil Pump
- Oil Tank And Breather Assembly (Remote)
- Power-Assisted Steering Components
- Reservoir Bottle (Transmission Fluid)
- Rigging Kit (Dual Engines)
- Rigging Kit (Quad Engines)
- Rigging Kit (Single Engine)
- Rigging Kit (Triple Engines)
- Tool List (Special - Engine)
- Transmission (Driveline Models)
- Transmission (Plug In Models)
- Transmission Components (Plug In Models)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 10-30206 | 700-22430 | SCREW, (.375-16 x 1.00) Stainless Steel | 3 | |||||
| 2 | 12-37828 | WASHER, (.390 x .625 x .062) Stainless Steel | 3 | ||||||
| 3 | 849875T01 | COVER | 1 | ||||||
| 4 | 27-818364 | GASKET, Thermostat, Cover To Thermostat Housing | 1 | 2 | |||||
| 5 | 8M0074922 | THERMOSTAT, 71°C (160°F) | 1 | 863358001 | |||||
| 6 | 840047A02 | HOUSING KIT, Thermostat - Black | 1 | ||||||
| 7 | 22-8M0053646 | FITTING ASSEMBLY, (2.040) Stainless Steel | 1 | 22-8M0005503 | |||||
| 8 | 25-843858 | O-RING, (1.188 x .125) | 1 | ||||||
| 9 | 10-815687 | SCREW, (.375-16 x 1.250) Stainless Steel | 4 | ||||||
| 10 | 12-37828 | WASHER, (.390 x .625 x .062) Stainless Steel | 4 | ||||||
| 11 | 25-20826 | 700-82280 | 525-25-20826 | O-RING, (2.230 x .139), Thermostat Housing To Intake Manifold | 1 | 2 | |||
| 12 | 885342002 | SENSOR ASSEMBLY | 1 | ||||||
| 13 | 25-896699 | O-RING, (1.78 mm x .08 mm) | 1 | ||||||
| 14 | 16-847742 | STUD, (#10-32 x 11.810) | 1 | ||||||
| 15 | 30-98475 | BALL, Nylon | 2 | ||||||
| 16 | 24-75533 | SPRING | 2 | ||||||
| 17 | 11-826709106 | NUT, (#10-32) Stainless Steel | 2 | ||||||
| - | 27-842593A01 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
