850 SCi - Serial 0M962886 and Up - Flywheel Housing And Components

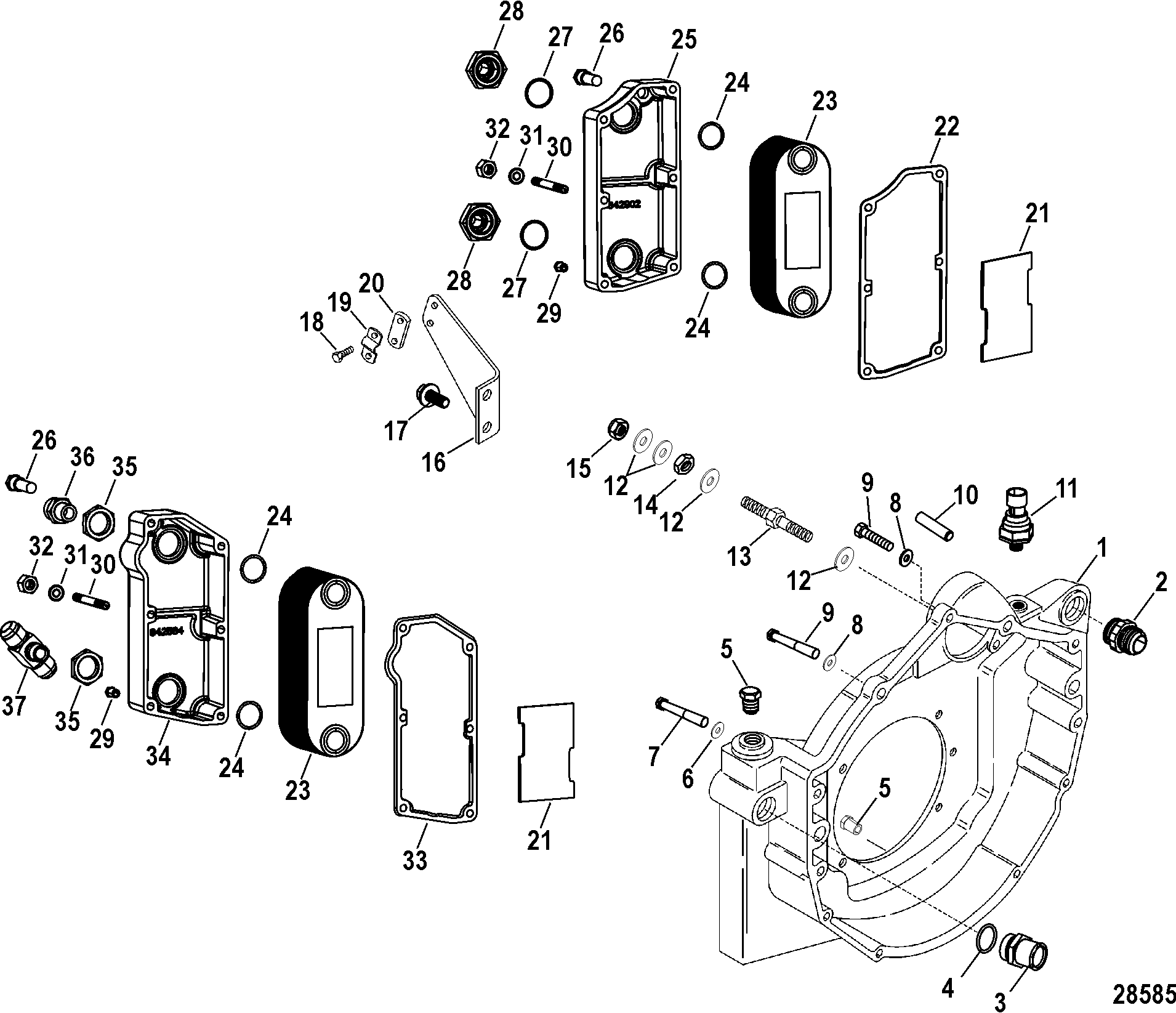

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Sea Water Pump Mounting
- Cooling (Water Hoses And Fittings - Port)
- Cooling (Water Hoses And Fittings - Starboard)
- Cooling Components (Sea Water Pump)
- Cooling Components (Water Thermostat Housing)
- Electrical Components (Ignition Coils)
- Electrical Components (Mounting Box)
- Electrical Components (Starter Motor)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block)
- Engine Components (Cylinder Head)
- Engine Components (Drive Belt)
- Engine Components (Front Cover And Camshaft)
- Engine Components (Water Pump)
- Filter Kit (Remote) (Water - Fuel Separating)
- Flywheel Housing And Components
- Fuel Line Components
- Fuel Pump (Remote)
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-842593A01)
- Intake Components (Air Plenum And Flame Arrestor)
- Intake Components (Boost Valve)
- Intake Components (Manifold)
- Intake Components (Supercharger) (1200)
- Intake Components (Supercharger) (850-1075)
- Intake Components (Water Intercooler)
- Mount Plates (Engine)
- Oil Cooler - Transmission
- Oil Filter Adaptor And Components
- Oil Hoses And Fittings (Port Side View)
- Oil Hoses And Fittings (Starboard Side View)
- Oil Pan And Oil Pump
- Oil Tank And Breather Assembly (Remote)
- Power-Assisted Steering Components
- Reservoir Bottle (Transmission Fluid)
- Rigging Kit (Dual Engines)
- Rigging Kit (Quad Engines)
- Rigging Kit (Single Engine)
- Rigging Kit (Triple Engines)
- Tool List (Special - Engine)
- Transmission (Driveline Models)
- Transmission (Plug In Models)
- Transmission Components (Plug In Models)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 8M0084514 | HOUSING ASSEMBLY, Flywheel | 1 | 843330A01 | |||||
| 2 | 22-8M0053646 | FITTING ASSEMBLY, (2.040) Stainless Steel | 1 | 22-8M0005503 | |||||
| 3 | 22-8M0007483 | FITTING ASSEMBLY, Straight - Stainless Steel | 1 | ||||||
| 4 | 25-843858 | O-RING, (1.188 x .125) | 1 | ||||||
| 5 | 22-328022 | PLUG, Pipe (.125-27) Brass | 3 | ||||||
| 6 | 12-33181 | WASHER, (.375 x .812 x .062) Copper | 4 | 2 | |||||
| 7 | 10-95802 | SCREW, (.375-16 x 2.750) Stainless Steel | 4 | ||||||
| 8 | 12-34931 | WASHER, (.406 x .734 x .063) Stainless Steel | 2 | ||||||
| 9 | 10-846294 | SCREW, (.375-16 x 1.500) Stainless Steel | 2 | ||||||
| 10 | 16-57982 | STUD, (.437-14/.437-20 x 1.875) | 2 | ||||||
| 11 | 881879T11 | SENSOR, Pressure (0 - 100 PSI) | 1 | 881879011 | |||||
| 12 | 12-34931 | WASHER, (.406 x .734 x .063) Stainless Steel | 4 | ||||||
| 13 | 16-64066 | STUD, (.375-16 x 2.750) Special | 1 | ||||||
| 14 | 11-58186 | NUT, (.375-16) Zinc Plated, Plain Hex | 1 | ||||||
| 15 | 11-82670912 | NUT, (.375-16) Stainless Steel, Nylon Insert | 1 | ||||||
| 16 | 849091 | BRACKET, Shift Cable | 1 | Driveline Models | |||||
| 17 | 10-817505 | SCREW, (.250-20 x .620) Stainless Steel | 2 | Driveline Models | |||||
| 18 | 10-88865 | SCREW, (#10-24 x .750) Stainless Steel | 2 | Driveline Models | |||||
| 19 | 54-846341 | BRACKET, Cable | 1 | Driveline Models | |||||
| 20 | 846344 | SPACER | 1 | Driveline Models | |||||
| 21 | 15-840041001 | SHIM (.059), Oil Cooler | AR | This Part is No Longer Available | |||||
| 21 | 15-840041002 | SHIM (.090), Oil Cooler | AR | This Part is No Longer Available | |||||
| 21 | 15-840041003 | SHIM (.105), Oil Cooler | AR | This Part is No Longer Available | |||||
| 22 | 27-848382 | GASKET, Oil Cooler - Port, Flywheel Housing To Oil Cooler | 1 | 2 | |||||
| 23 | 8M0050390 | COOLER, Oil | 2 | 843524 | |||||
| 24 | 25-35480 | O-RING, (1.237 x .103) | 4 | ||||||
| 25 | 842902001 | COVER, Oil Cooler - Port | 1 | ||||||
| 26 | 806000 | ANODE | 2 | ||||||
| 27 | 25-35480 | O-RING, (1.237 x .103) | 2 | ||||||
| 28 | 22-840039 | FITTING | 2 | ||||||
| 29 | 22-328022 | PLUG, Pipe (.125-27) Brass | 2 | ||||||
| 30 | 16-68202 | STUD, (.312-24 x 3.00) | 12 | ||||||
| 31 | 12-36533 | WASHER, (.328 x .562 x .0312) Copper | 4 | 2 | |||||
| 31 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 8 | ||||||
| 32 | 11-82670911 | NUT, (.312-24) Stainless Steel | 12 | ||||||
| 33 | 27-848383 | GASKET, Oil Cooler - Starboard, Flywheel Housing To Oil Cooler | 1 | 2 | |||||
| 34 | 842584001 | COVER, Oil Cooler - Starboard | 1 | ||||||
| 35 | 11-47521 | NUT, (1.125-12) | 2 | ||||||
| 36 | 22-84772013 | FITTING | 1 | ||||||
| 37 | 22-847550 | ADAPTOR, Tee | 1 | 22-847550 | |||||
| - | 27-842593A01 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
