900 SC Dry Sump 2000 - Serial 0L306805 and Up - Dry Sump Pan And Oil Pump

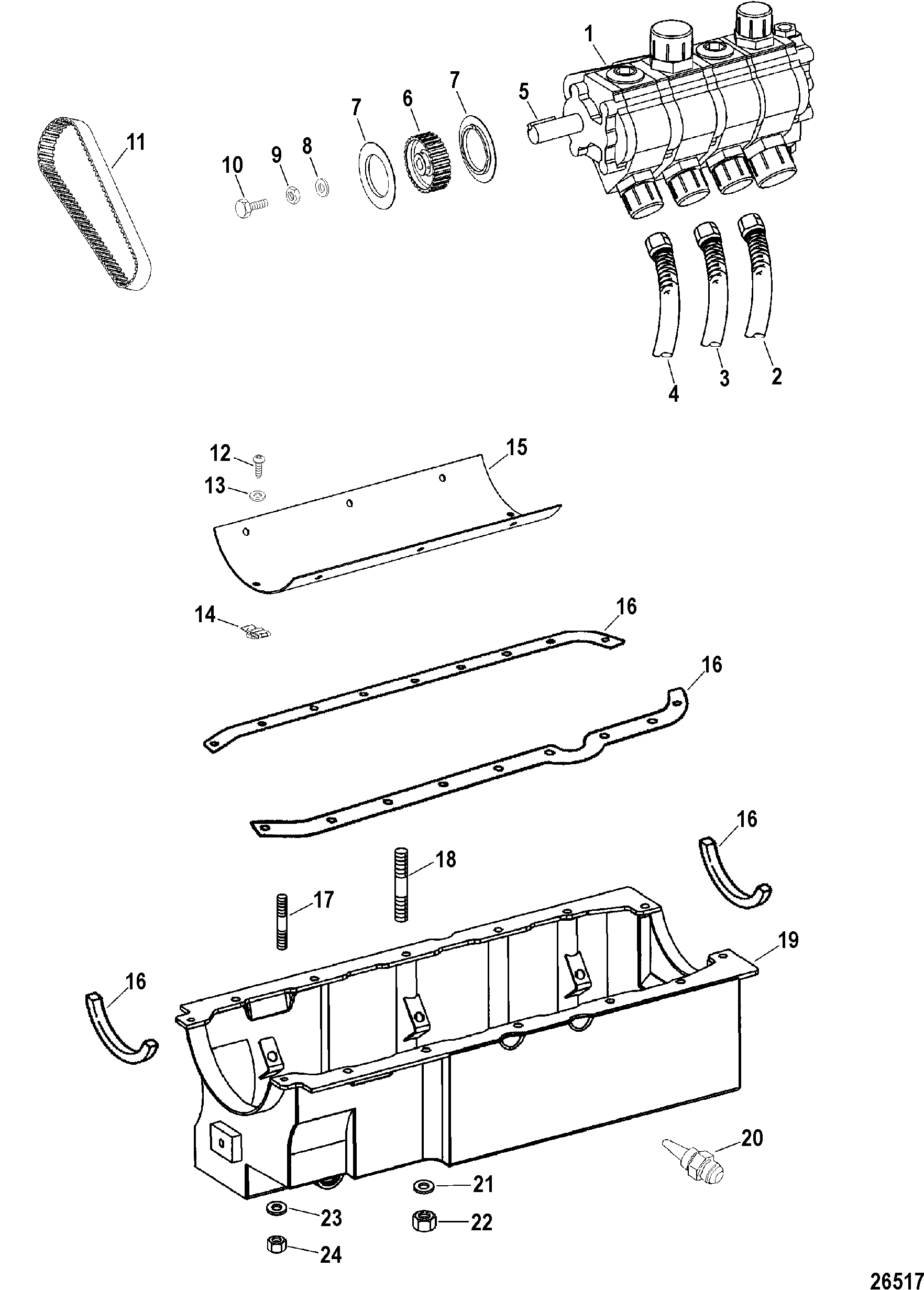

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Carburetor And Linkage
- Crankshaft - Piston - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Dry Sump Pan And Oil Pump
- Electrical Components
- Flywheel Housing
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates
- Oil Tank And Breather Assembly
- Power-Assisted Steering Pump Assembly
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Switches
- Starter Motor And Alternator
- Starter Motor Components (50-808011A 1)
- Supercharger Assembly
- Supercharger Components
- Thermostat Housing And Oil Cooler
- Transmission And Components (Driveline)
- Transmission And Components (Plug In)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 841437A1 | PUMP ASSEMBLY, Oil | 1 | ||||||
| 2 | 32-821284A24 | HOSE ASSEMBLY | 1 | NOTE: Straight/90 Degree Swivel Ends - 35.50 Inches - Back Of Oil Pump To Front Of Pan | |||||
| 3 | 32-821284A25 | HOSE ASSEMBLY | 1 | NOTE: Straight/90 Degree Swivel Ends - 24.50 Inches - Center Of Oil Pump To Center Of Pan | |||||
| 4 | 32-821284A26 | HOSE ASSEMBLY | 1 | NOTE: Straight Ends - 17.50 Inches - Front Of Oil Pump To Rear Of Pan | |||||
| 5 | 28-8424171 | KEY, Oil Pump Shaft | 1 | ||||||
| 6 | 822827A1 | PULLEY ASSEMBLY | 1 | ||||||
| 7 | 843591 | GUIDE, Oil Pump Belt | 2 | ||||||
| 8 | 12-69057 | WASHER, (.281 x .734 x .063) | 1 | ||||||
| 9 | 11-29598 | NUT, (.250-28) Stainless Steel | 1 | ||||||
| 10 | 10-36137 | SCREW, (.250-28 x 1.00) | 1 | ||||||
| 11 | 57-841442 | BELT, Oil Pump | 1 | ||||||
| 12 | 10-847657 | SCREW, (.250-20 x .500) | 8 | 5 | |||||
| 13 | 12-69057 | WASHER, (.281 x .734 x .063) | 8 | 5 | |||||
| 14 | 11-845226 | CLIPNUT, Special, Clip | 8 | 5 | |||||
| 15 | 845228 | SCREEN, Windage Tray | 1 | 5 | |||||
| 16 | 27-848305 | GASKET SET, Oil Pan | 1 | 2,5 | |||||
| 17 | 16-822961 | STUD, (.250-20/.250-28 x 1.500) | 2 | 5 | |||||
| 18 | 16-848019 | STUD, (.312-18/.312-24 x 1.625) | 12 | 5 | |||||
| 19 | 843500 | PAN, Dry Sump | 1 | 5 | |||||
| 20 | 8M0050231 | FITTING ASSEMBLY, With Screen And O-Ring | 3 | 22-845168A1 | 5 | ||||
| 21 | 12-20546 | WASHER, (.330 x .500 x .060) | 12 | 5 | |||||
| 22 | 11-82670911 | NUT, (.312-24) Stainless Steel | 12 | 5 | |||||
| 23 | 12-20028 | WASHER, (.265 x .437 x .060) | 2 | 5 | |||||
| 24 | 11-35888 | 676-9-72001 | 700-21180 | NUT, (.250-28) Stainless Steel | 2 | 5 | |||
| - | 27-840277A1 | GASKET/SEAL SET, Engine Overhaul | 1 | This Part is No Longer Available |
