900 SC Dry Sump 2000 - Serial 0L306805 and Up - Senders And Switches

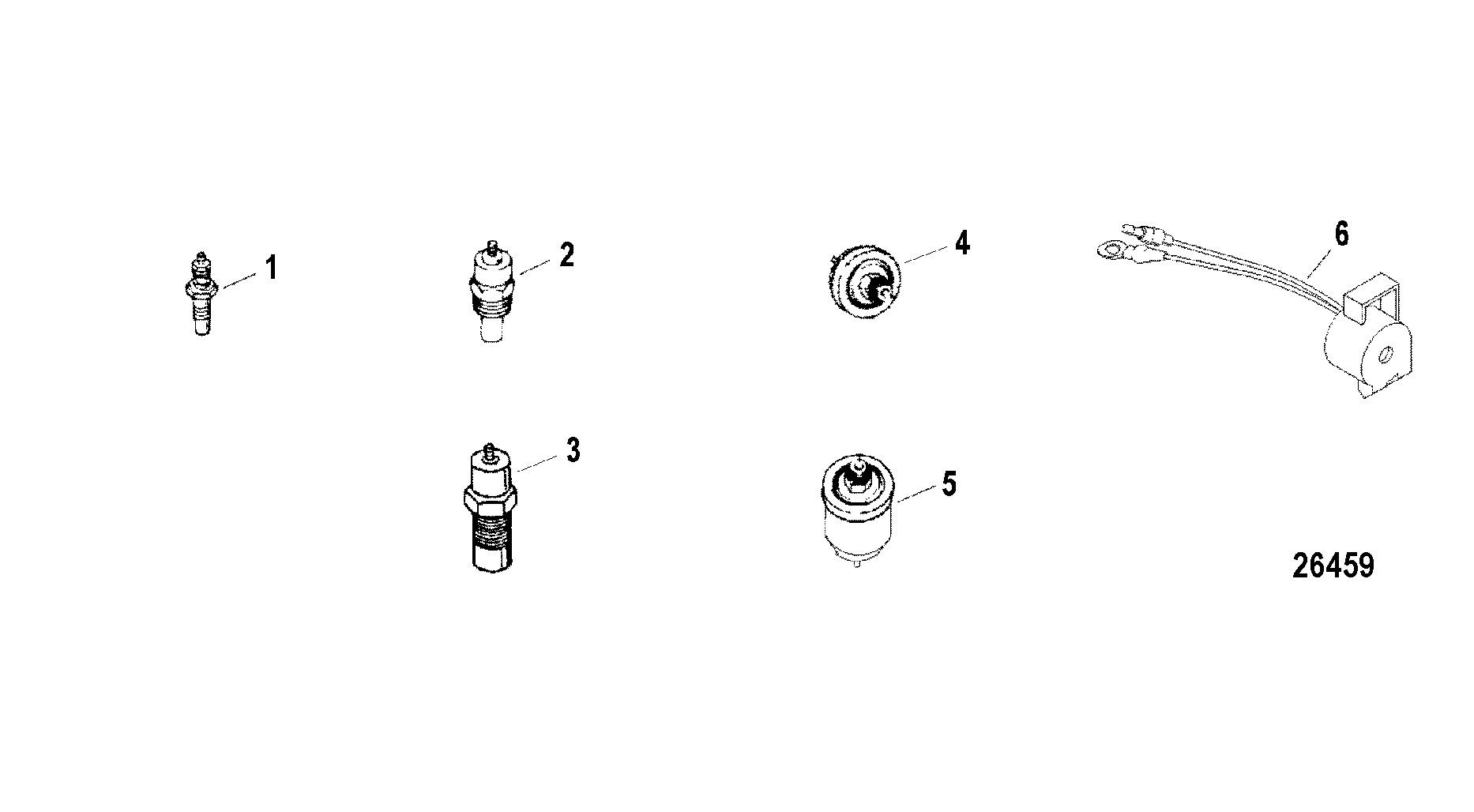

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 849363         SENDER ASSEMBLY, Oil Temperature 1
2 806490T         SENDER ASSEMBLY, Water Temperature 1 97257A1
3 48952         SWITCH ASSEMBLY, Water Temperature 1
4 87-805605A1         SWITCH ASSEMBLY, Engine Block Pressure 1
5 8M0068784         SENDER ASSEMBLY, Oil Pressure 1 87-815425T
6 816492A6         ALARM KIT, Audio Warning 1
