7.4L Bravo (Gen 5) GM 454 V-8 1992-1996 - Serial 0D0603118 Thru 0F800699 - Distributor And Ignition Components

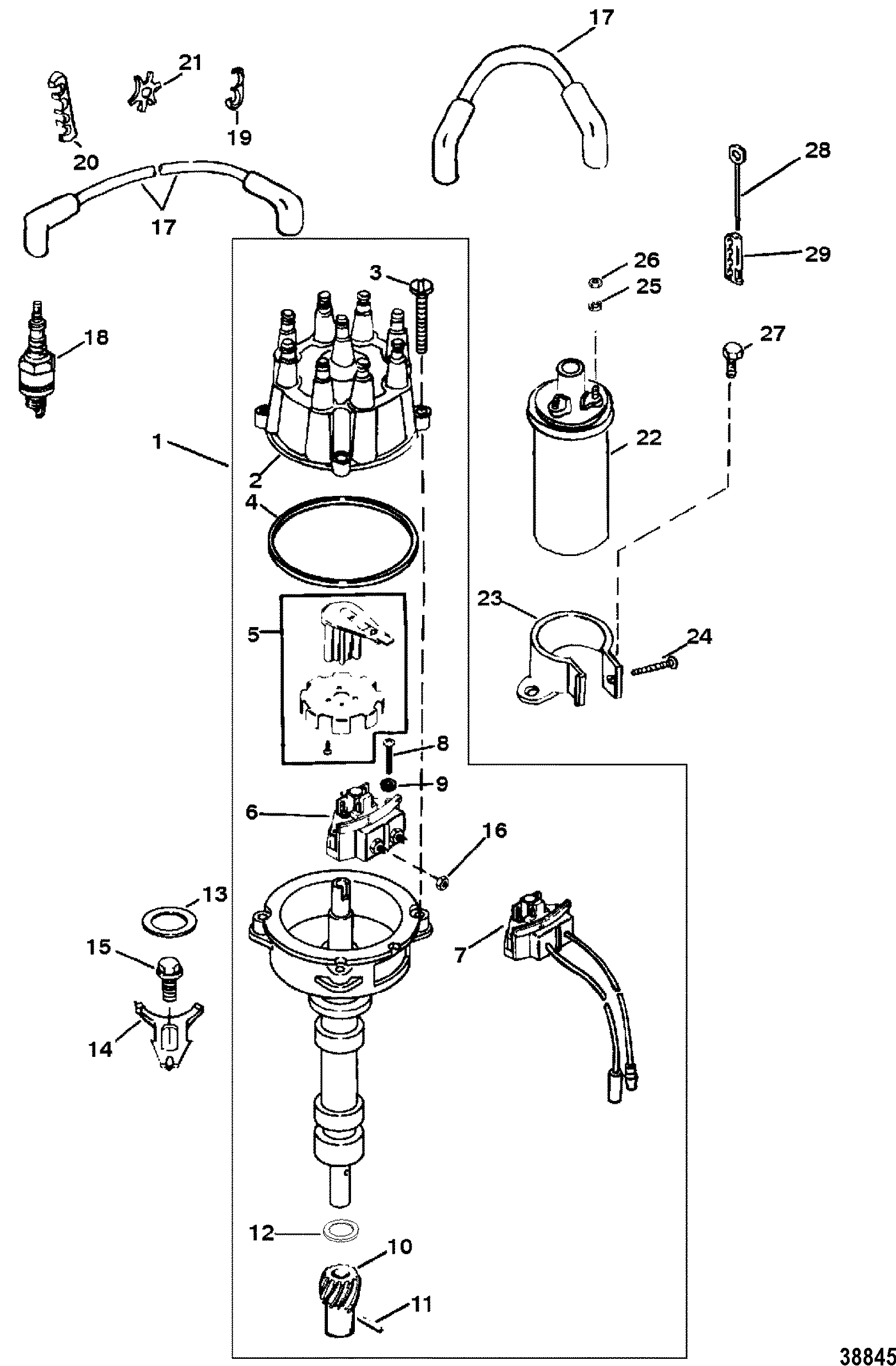

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando # AC155603)
- Alternator (Mando #AR-150)
- Alternator (Prestolite #8EM2003KA)
- Audio Warning System
- Carburetor (Weber)
- Carburetor And Linkage
- Crankshaft And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (454 Magnum)
- Cylinder Head And Rocker Cover (7.4L Bravo)
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate (454 Magnum)
- Exhaust System (7.4L Bravo)
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Filter And Adaptor (454 Magnum) 0F114759 and Below
- Oil Filter And Adaptor (7.4L Bravo) 0F114759 and Below
- Oil Filter And Adaptor (7.4L Bravo-454 Mag) 0F114760 and Up
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor (3-1-4 In. Diameter End Cap)
- Starter Motor (8 In. (Pg 260) 2-7-8 In. Diameter End Cap)
- Thermostat Housing (Standard Cooling) S-N: 0F305000 and Up
- Thermostat Housing (Standard Cooling) S-N: 0F3519999 and Below
- Wiring Harness-Electrical (Mounted On Distributor) Tb Iv
- Wiring Harness-Electrical (Mounted On Exhaust Elbow) Tb Iv
- Wiring Harness-Electrical (Thunderbolt V Ignition)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 805185A36 | DISTRIBUTOR ASSEMBLY | 1 | 90747A27 | 1 | |||
| 1 | 805185A36 | DISTRIBUTOR ASSEMBLY | 1 | 805185A26 | 6 | |||
| 2 | 805759T1 | CAP ASSEMBLY | 1 | 805759A2 | ||||
| 3 | 10-90926 | SCREW, (#10-32 x .810) | 4 | |||||
| 4 | 27-805760 | GASKET | 1 | |||||
| 5 | 13524T1 | WHEEL ASSEMBLY | 1 | 13524A1 | ||||
| 6 | 87-892150Q02 | SENSOR ASSEMBLY | 1 | 87-91019A3 | 1 | |||
| 7 | 87-892150Q02 | SENSOR ASSEMBLY | 1 | 87-91019A6 | 6 | |||
| 8 | 10-47618 | SCREW, (#10-32 x 1.00 | 1 | This Part is NLA from Mercruiser. | ||||
| 9 | 12-89302 | WASHER | 2 | 12-27736 | ||||
| 10 | 43-818807 | GEAR | 1 | |||||
| 11 | 17-47617 | PIN | 1 | |||||
| 12 | 12-90931 | THRUST WASHER | 1 | |||||
| 13 | 27-344863 | GASKET | 1 | 4,5 | ||||
| 14 | 52185 | CLAMP | 1 | |||||
| 15 | 10-806681 | SCREW, (.375-16 x .875) | 1 | |||||
| 16 | 11-68219 | NUT, (#10-32) Stainless Steel | 2 | |||||
| 17 | 84-816608Q61 | CABLE KIT | 1 | 84-816608A61 | ||||
| 18 | 33-898264001 | SPARK PLUG | 8 | 33-59571 | ||||
| 19 | 54676 | RETAINER, Two Wire | 2 | |||||
| 20 | 32783 | RETAINER, Three Wire | 2 | |||||
| 21 | 32784 | RETAINER, Four Wire | 2 | . | ||||
| 22 | 300-8M0079202 | COIL KIT | 1 | 392-805570A2 | ||||
| 23 | 77294T | BRACKET | 1 | This Part is NLA from Mercruiser. 1 | ||||
| 23 | 65970T1 | BRACKET | 1 | 6 | ||||
| 24 | 10-41408 | SCREW, (#10-32 x 1.50) | 1 | |||||
| 25 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | 11-68219/tr> | ||||
| 26 | 11-68219 | NUT, (#10-32) Stainless Steel | 2 | |||||
| 27 | 10-98261 | SCREW, (.375-16 x .750) | 2 | 1 | ||||
| 27 | 10-92913 | SCREW, (.437-14 x .750) | 1 | 6 | ||||
| 28 | 16-90096A1 | STUD ASSEMBLY, (#10-32 x Special) | 2 | |||||
| 29 | 54-72821 | RETAINER | 2 | |||||
| - | 27-811547A92 | GASKET SET, Engine | 1 | (7.4L BRAVO) | ||||
| - | 27-811572A92 | GASKET SET, Overhaul | 1 | This Part is NLA from Mercruiser. (454 MAGNUM) |
