7.4L Bravo (Gen 5) GM 454 V-8 1992-1996 - Serial 0D0603118 Thru 0F800699 - Wiring Harness-Electrical (Mounted On Exhaust Elbow) Tb Iv

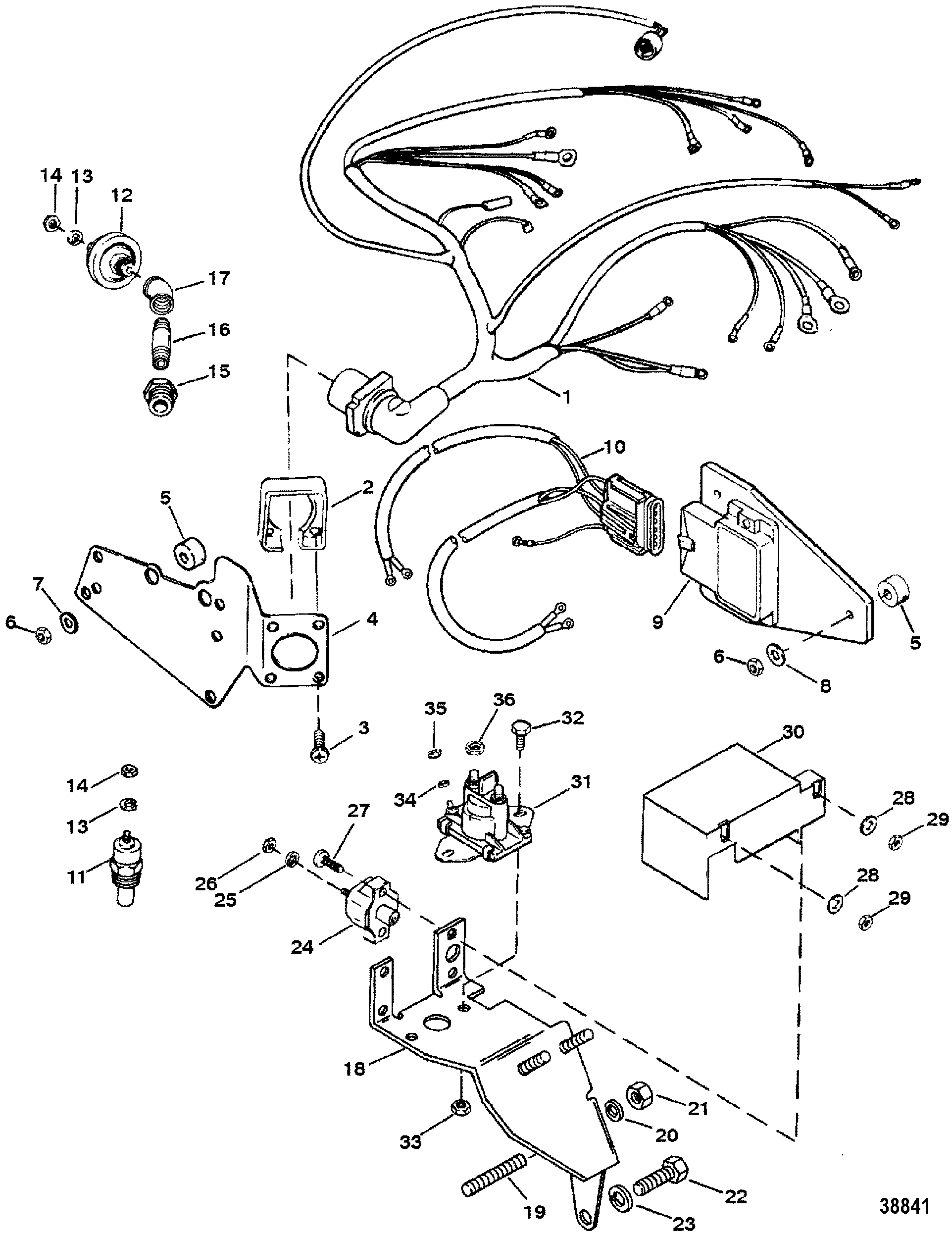

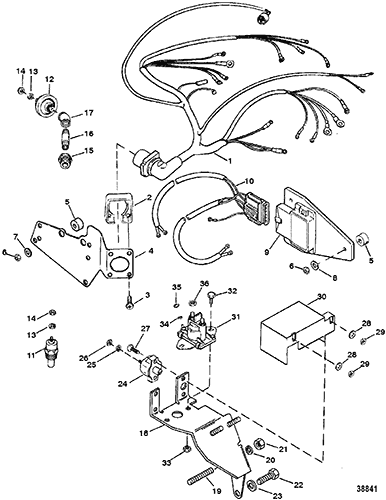

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando # AC155603)
- Alternator (Mando #AR-150)
- Alternator (Prestolite #8EM2003KA)
- Audio Warning System
- Carburetor (Weber)
- Carburetor And Linkage
- Crankshaft And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (454 Magnum)
- Cylinder Head And Rocker Cover (7.4L Bravo)
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate (454 Magnum)
- Exhaust System (7.4L Bravo)
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Filter And Adaptor (454 Magnum) 0F114759 and Below
- Oil Filter And Adaptor (7.4L Bravo) 0F114759 and Below
- Oil Filter And Adaptor (7.4L Bravo-454 Mag) 0F114760 and Up
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor (3-1-4 In. Diameter End Cap)
- Starter Motor (8 In. (Pg 260) 2-7-8 In. Diameter End Cap)
- Thermostat Housing (Standard Cooling) S-N: 0F305000 and Up
- Thermostat Housing (Standard Cooling) S-N: 0F3519999 and Below
- Wiring Harness-Electrical (Mounted On Distributor) Tb Iv
- Wiring Harness-Electrical (Mounted On Exhaust Elbow) Tb Iv
- Wiring Harness-Electrical (Thunderbolt V Ignition)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 84-96020A6 | HARNESS ASSEMBLY | 1 | |||||
| 2 | 26079A2 | PLATE KIT, Wire Harness Mount | 1 | |||||
| 3 | 10-15001 | SCREW, (#8-16 x .875) | 4 | |||||
| 4 | 98493A2 | BRACKET | 1 | This Part is NLA from Mercruiser. | ||||
| 5 | 23-92152T | SPACER, (.27 x .75 x .38) | 6 | 23-92152 | ||||
| 6 | 11-64015 | NUT, (.250-20) | 6 | |||||
| 7 | 23-806981 | SPACER | 3 | |||||
| 8 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 3 | |||||
| 9 | 15248A1 | MODULE KIT, Ignition | 1 | This Part is NLA from Mercruiser. | ||||
| 10 | 84-15275A1 | HARNESS ASSEMBLY | 1 | This Part is NLA from Mercruiser. | ||||
| 11 | 806490T | 676-9-42400 | SENDER ASSEMBLY, Water Temperature | 1 | 97257A1 | |||
| 11 | 49734 | SENDER ASSEMBLY, Water Temperature | OPT | 49734A1 | (DUAL STATION) 7 | |||
| 12 | 8M0068784 | SENDER ASSEMBLY, Oil Pressure | 1 | 815425 | ||||
| 12 | 37293T | SENDER ASSEMBLY, Oil Pressure | OPT | 37293 | (DUAL STATION) 7 | |||
| 13 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | |||||
| 14 | 11-68219 | NUT, (#10-32) Stainless Steel | 2 | |||||
| 15 | 22-48556 | BUSHING , Reducer (.250 To .125) | 1 | |||||
| 16 | 22-885153 | NIPPLE | 1 | 22-42554 | ||||
| 17 | 22-46932 | ELBOW | 1 | This Part is NLA from Mercruiser. | ||||
| 18 | 818384T1 | BRACKET | 1 | This Part is NLA from Mercruiser. | ||||
| 19 | 16-64281 | STUD, (.375-16/.375-24 x 1.880) | 1 | This Part is NLA from Mercruiser. | ||||
| 20 | 13-35048 | 700-21495 | LOCKWASHER, (.375) | 1 | ||||
| 21 | 11-46335 | NUT, (.375-24) | 1 | |||||
| 22 | 10-47462 | SCREW, (.437-14 x 1.250) | 1 | |||||
| 23 | 13-32993 | LOCKWASHER, (.437) | 1 | |||||
| 24 | 88-11178A01 | BREAKER, Circuit - 50 Ampere | 1 | 88-11178 | This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. | |||
| 25 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | 11-68219/tr> | ||||
| 26 | 11-68219 | NUT, (#10-32) Stainless Steel | 2 | |||||
| 27 | 10-45862 | SCREW, (#10-32 x .875) | 2 | |||||
| 28 | 12-56681 | WASHER, (.203 x .500 x .032) | 2 | |||||
| 29 | 11-61356 | NUT, (#10-32) Reduced Hex | 2 | |||||
| 30 | 85-96819T | INSULATOR | 1 | |||||
| 31 | 89-96054T | 700-72390 | SOLENOID ASSEMBLY, Starter | 1 | 89-96054 | |||
| 32 | 10-96138 | SCREW, (1/4-28 x 5/8) (5/8 IN.) | 2 | 10-47910 | ||||
| 33 | 11-20088 | NUT | 2 | This Part is NLA from Mercruiser. | ||||
| 34 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 2 | |||||
| 35 | 11-26419 | NUT, (#8-32) Brass | 2 | |||||
| 36 | 11-94330 | NUT, (.250-20) Brass | 2 |
