MX 6.2L MPI HORIZON MIE - Serial 0M398395 Thru 0W389999 - Closed Cooling System

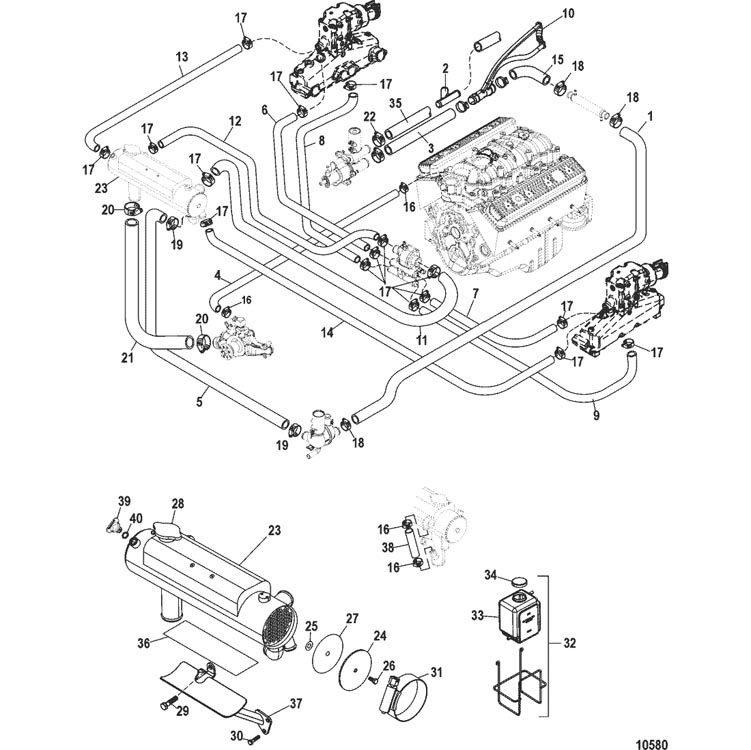

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System
- Cylinder Block, CAMSHAFT AND CRANKSHAFT
- Cylinder Block, Flywheel Housing
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Exhaust Manifold and Elbow
- Front Cover and Circulating Pump
- Fuel Supply Module, Bravo
- Intake Manifold and Fuel Rail
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Standard Cooling System
- Starter Motor
- Thermostat and Housing
- Throttle Body
- Transmission and Engine Mounting(BORG-WARNER 5000)
- Transmission and Engine Mounting(BORG-WARNER 71C and 72C)
- Transmission and Engine Mounting(HURTH 630)
- Transmission and Related Parts(BORG-WARNER 5000)
- Transmission and Related Parts(BORG-WARNER 71C and72C)
- Transmission and Related Parts(HURTH 630)
- Transmission(WALTER V-DRIVE)
- Water Distribution Housing
- Water Drain, Air Manifold and Air Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-865247 | HOSE, Transmission Cooler to Accumulator Housing | 1 | ||||||
| 2 | 22-864727 | FITTING, Y, (3) 1-1/4 In. OD Hose Barbs | 1 | ||||||
| 3 | 32-865234 | HOSE, Sea Water Pump to Water Orifice | |||||||
| 4 | 32-864551 | HOSE, Intake Bypass to Circulating Pump | 1 | ||||||
| 5 | 32-864431 | HOSE, Distribution Fitting to Heat Exchanger | 1 | ||||||
| 6 | 32-864539 | HOSE, Thermostat Housing to Upper Manifold | 1 | ||||||
| 6 | 32-864956 | HOSE, Thermostat Housing to Upper Manifold | 1 | ||||||
| 7 | 32-864552 | HOSE, Thermostat Housing to Upper Manifold | 1 | ||||||
| 7 | 32-864954 | HOSE, Thermostat Housing to Upper Manifold | 1 | ||||||
| 8 | 32-864509 | HOSE, Thermostat Housing to Lower Manifold | 1 | ||||||
| 9 | 32-864508 | HOSE, Thermostat Housing to Lower Manifold | 1 | ||||||
| 11 | 32-864506 | HOSE, Heat Exchanger to Thermostat Housing | 1 | ||||||
| 12 | 32-864507 | HOSE, Heat Exchanger to Thermostat Housing | 1 | ||||||
| 13 | 32-8M2005027 | HOSE, Heat Exchanger to Starboard Elbow | 1 | ||||||
| 13 | 32-864955 | HOSE, Heat Exchanger to Starboard Elbow | 1 | ||||||
| 13 | 32-864544 | HOSE, Heat Exchanger to Starboard Elbow | 1 | ||||||
| 13 | 32-864974 | HOSE, Heat Exchanger to Starboard Elbow | 1 | ||||||
| 14 | 32-864726 | HOSE, Heat Exchanger to Port Elbow | 1 | ||||||
| 14 | 32-864953 | HOSE, Heat Exchanger to Port Elbow | 1 | ||||||
| 14 | 32-864543 | HOSE, Heat Exchanger to Port Elbow | 1 | ||||||
| 14 | 32-864973 | HOSE, Heat Exchanger to Port Elbow | 1 | ||||||
| 15 | 32-8M2021655 | HOSE, Water Orifice to Power Steering Cooler | 1 | 865235 | |||||
| 16 | 54-815504212 | CLAMP, Worm Gear | 1 | ||||||
| 17 | 54-815504216 | CLAMP, Worm Gear (1.56 Diameter) | 1 | ||||||
| 18 | 54-815504228 | CLAMP, Worm Gear | 1 | 54-32781 54-853232 54-853432 |
|||||
| 19 | 54-815504232 | CLAMP, Worm Gear | 1 | 8M2001490 | |||||
| 21 | 32-864886 | HOSE, Heat Exchanger to Circulating Pump | 1 | ||||||
| 23 | 864395T01 | HEAT EXCHANGER, Closed Cooling | 1 | ||||||
| 24 | 864708 | COVER, End, Heat Exchanger | 2 | ||||||
| 25 | 25-818679 | O-RING | 4 | ||||||
| 26 | 10-94247 | SCREW, (.375-16 x .750) Stainless Steel | 2 | ||||||
| 27 | 27-8M0084884 | SEAL | 2 | 866152 | |||||
| 28 | 36-8148791 | CAP, Pressure | 1 | ||||||
| 29 | 10-805559 | SCREW, (.375-16 x .875) Stainless Steel | 1 | ||||||
| 30 | 10-34353 | SCREW, (.375-16 x 1.00) | 3 | ||||||
| 31 | 54-815504396 | CLAMP, Worm Gear, Heat Exchanger | 1 | ||||||
| 32 | 71587A10 | RECOVERY KIT, Coolant | 1 | ||||||
| - | 32-774572 | HOSE, (48.00 Inches Bulk) | 1 | ||||||
| 33 | 71587A11 | BOTTLE, Plastic, Coolant Recovery Kit | 1 | ||||||
| 34 | 72508 | CAP, Coolant Recovery Bottle | 1 | ||||||
| 35 | 32-8M0062666 | HOSE, (96.00 Inches Bulk), Sea Water Pump to Water Pick Up | 1 | 865672079 | |||||
| 36 | 18431 | PAD, Heat Exchanger | 1 | ||||||
| 37 | 864429T | BRACKET, Cooler | 1 | ||||||
| 38 | 32-864533 | HOSE | 1 | ||||||
| 39 | 22-806608A02 | 700-13992 | PLUG ASSEMBLY, (.500-13) Blue | 1 | 22-806608A1 | ||||
| 40 | 25-26802 | 700-81110 | SEAL | 1 | 8M2000926 |
