MX 6.2L MPI HORIZON MIE - Serial 0M398395 Thru 0W389999 - Electrical Components

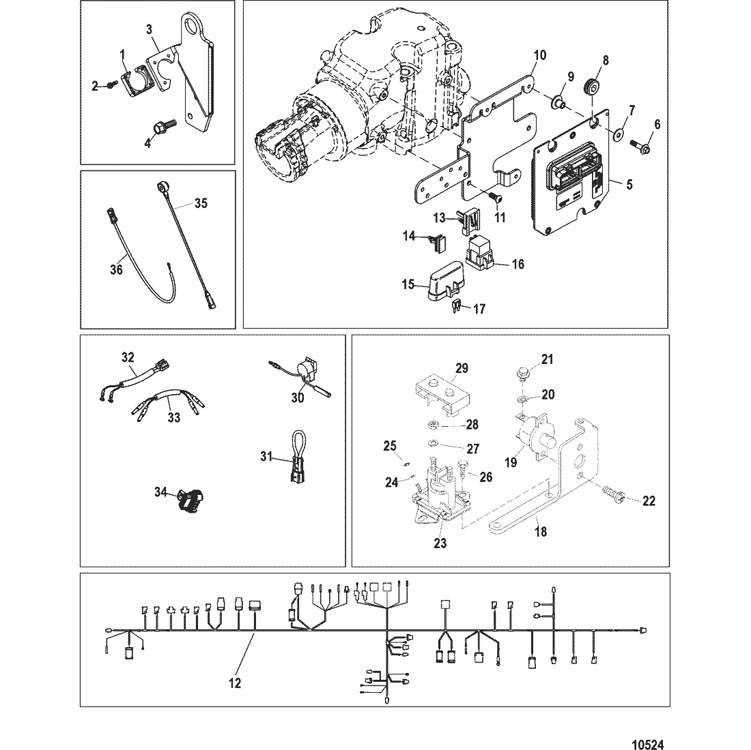

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System
- Cylinder Block, CAMSHAFT AND CRANKSHAFT
- Cylinder Block, Flywheel Housing
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Exhaust Manifold and Elbow
- Front Cover and Circulating Pump
- Fuel Supply Module, Bravo
- Intake Manifold and Fuel Rail
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Standard Cooling System
- Starter Motor
- Thermostat and Housing
- Throttle Body
- Transmission and Engine Mounting(BORG-WARNER 5000)
- Transmission and Engine Mounting(BORG-WARNER 71C and 72C)
- Transmission and Engine Mounting(HURTH 630)
- Transmission and Related Parts(BORG-WARNER 5000)
- Transmission and Related Parts(BORG-WARNER 71C and72C)
- Transmission and Related Parts(HURTH 630)
- Transmission(WALTER V-DRIVE)
- Water Distribution Housing
- Water Drain, Air Manifold and Air Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 26079A2 | PLATE KIT, Wire Harness Mount | 1 | ||||||
| 2 | 10-15001 | SCREW, (#8-16 x .875) | 4 | ||||||
| 3 | 865480T | BRACKET, Harness Mounting/Lifting Eye | 1 | 863440T | |||||
| 4 | 10-98261 | SCREW, (.375-16 x .750) | 2 | ||||||
| 5 | 864298T07 | ECM, Engine Control Module | 1 | 865842T01 | |||||
| 5 | 865006T04 | ECM, Engine Control Module | 1 | 865843T01 | |||||
| 5 | 864300T08 | ECM, Engine Control Module | 1 | 865847T01 | |||||
| 5 | 865009T04 | ECM, Engine Control Module | 1 | 865848T01 | |||||
| 6 | 10-82130025 | SCREW, (M6 x 25) | 3 | ||||||
| 7 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel | 3 | ||||||
| 8 | 25-834985 | GROMMET | 3 | ||||||
| 9 | 23-856954 | BUSHING | 3 | ||||||
| 10 | 863424T | BRACKET | 1 | ||||||
| 11 | 10-860008 | SCREW, (.250-20 x .625) Torx | 3 | ||||||
| 12 | 84-865455T02 | HARNESS ASSEMBLY | 1 | ||||||
| 13 | 54-865205 | CLIP, Relay Mounting | 2 | 804351 | |||||
| 14 | 54-804352 | CLIP, Fuse Block Mounting | 1 | ||||||
| 15 | 883562 | COVER, Fuse | 1 | ||||||
| 16 | 865202T | 676-9-15211 | RELAY | 2 | 807057T | ||||
| 17 | 88-832969T20 | FUSE, Mini - Yellow - 20 Ampere | 3 | 83296920 | |||||
| 18 | 899719T01 | BRACKET, Electrical, Mounting | 1 | 805368T | |||||
| 19 | 88-11178A01 | BREAKER, Circuit - 50 Ampere | 1 | No Longer Available | |||||
| 20 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 21 | 10-68513 | SCREW, (#10-32 x .375) Stainless Steel | 2 | ||||||
| 22 | 10-57583T | SCREW, (#8-32 x .375) | 2 | 57583 | |||||
| 23 | 89-96158T | 620-3387M | 676-9-15112 | 700-72400 | SOLENOID, Starter | 1 | |||
| 24 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 2 | ||||||
| 25 | 11-26419 | NUT, (#8-32) Brass | 2 | ||||||
| 26 | 10-805564 | SCREW, (.250-20 x .750) | 1 | ||||||
| 27 | 13-26995 | LOCKWASHER, (#8) Stainless Steel | 2 | ||||||
| 28 | 11-26419 | NUT, (#8-32) Brass | 2 | ||||||
| 29 | 85-97861 | INSULATOR, Starter Solenoid | 1 | ||||||
| 30 | 816492A15 | ALARM KIT | 1 | ||||||
| 31 | 805592A1 | CONNECTOR ASSEMBLY, Jumper | 1 | ||||||
| 32 | 84-861940T1 | HARNESS ASSEMBLY, Neutral Safty Switch | 1 | ||||||
| 33 | 84-862021T1 | HARNESS ASSEMBLY, Transmission Temperature | 1 | ||||||
| 34 | 8M3000055 | CAP, Weather Proof (10 Pin Harness Plug) | 1 | 891735 | |||||
| 35 | 8M6003194 | SENSOR ASSEMBLY, Knock | 1 | 878187 | |||||
| 36 | 84-865145T02 | HARNESS ASSEMBLY, Wiring | 1 | 865145A02 |
