6.2L MPI HORIZON MIE - Serial 1A090000 Thru 1A092168 - Throttle Body, Digital Throttle and Shift
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System
- Cool Fuel System -Bravo(SN 1A091622 and Below)
- Cool Fuel System -Bravo(SN 1A091623 and Above)
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components, Digital (SN 1A091517 and Below)
- Electrical Components, Digital (SN 1A091518 to 1A091825)
- Electrical Components, Digital (SN 1A091826 and Up)
- Electrical Components, Mechanical (SN 1A091517 and Below)
- Electrical Components, Mechanical (SN 1A091518 to 1A091825)
- Electrical Components, Mechanical (SN 1A091826 and Up)
- Exhaust Manifold and Elbow
- Exhaust Risers
- Front Cover and Circulating Pump
- Fuel Module Components -Bravo(SN 1A091622 and Below)
- Fuel Module Components -Bravo(SN 1A091623 and Above)
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components (27-861246A05), Engine Overhaul
- Intake Manifold and Fuel Rail
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Standard Cooling System
- Starter Motor
- Thermostat and Housing
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Transmission and Engine Mounting(BORG-WARNER 5000)
- Transmission and Engine Mounting(BORG-WARNER 71C and 72C)
- Transmission and Engine Mounting(HURTH 630)
- Transmission and Related Parts(BORG-WARNER 71C and72C)
- Transmission and Related Parts(Hurth 630 800)
- Transmission(WALTER V-DRIVE)
- Water Distribution Housing
- Water Drain, Air Manifold and Air Pump

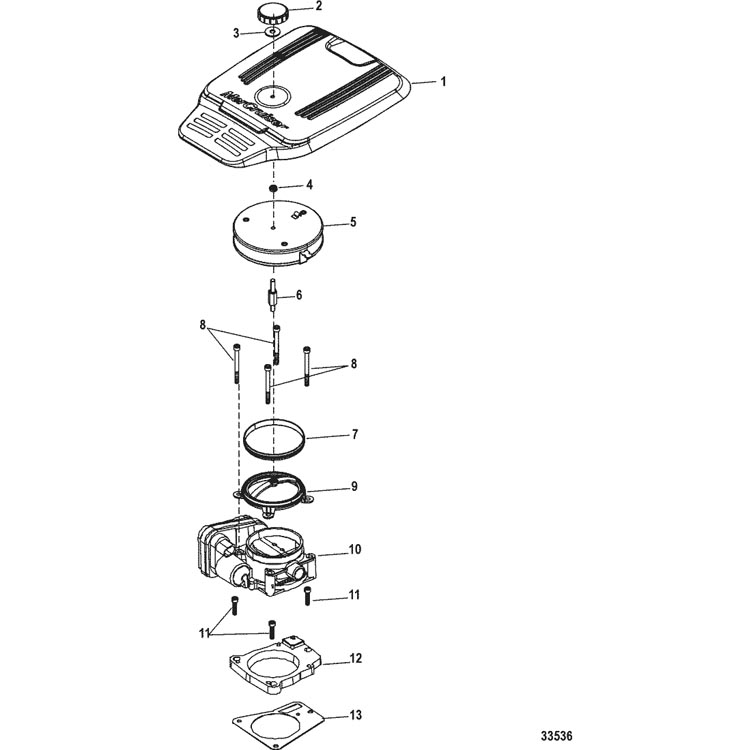

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
1 | 879288T67 | COVER, Silver, Engine | 1 | ||||||
2 | 11-863701 | KNOB | 1 | ||||||
3 | 12-86400 | WASHER | 1 | ||||||
4 | 11-8267138 | NUT, (.25-20) | 1 | ||||||
5 | 866206T | FLAME ARRESTOR | 1 | ||||||
6 | 16-866204 | STUD | 1 | ||||||
7 | 26-866232 | SEAL, Flame Arrestor | 1 | ||||||
8 | 10-4008855 | SCREW, (M6 x 55) | 4 | ||||||
9 | 8M0046370 | MOUNT , Flame Arrestor | 1 | 866205 | |||||
10 | 8M0046460 | THROTTLE BODY ASSEMBLY | 1 | 866592A04 | |||||
11 | 10-4008825 | SCREW, (M6 x 25) | 3 | ||||||
12 | 862538001 | ADAPTOR, Throttle Body | 1 | ||||||
13 | 27-863215 | GASKET | 1 |
