6.2L MPI HORIZON MIE - Serial 1A090000 Thru 1A092168 - Throttle Body, Mechanical

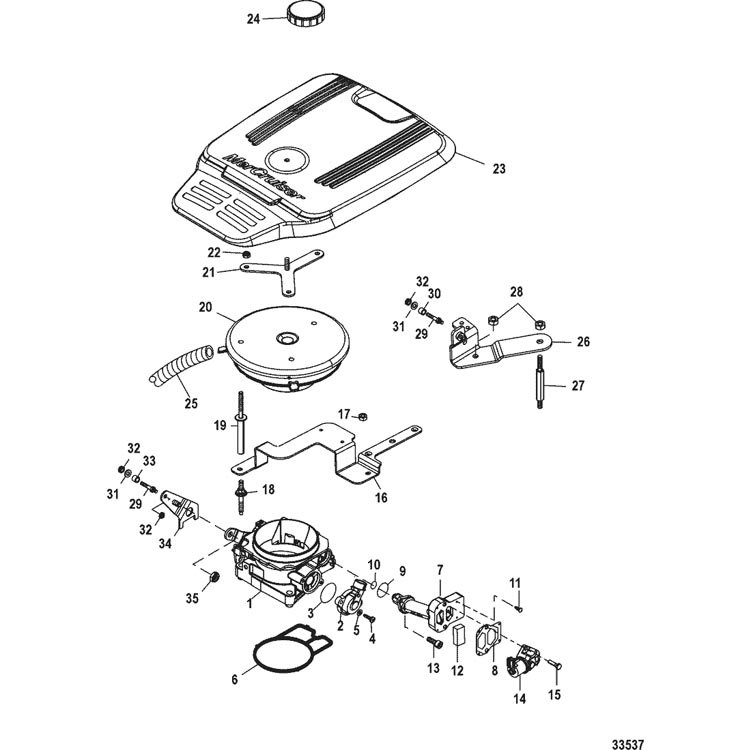

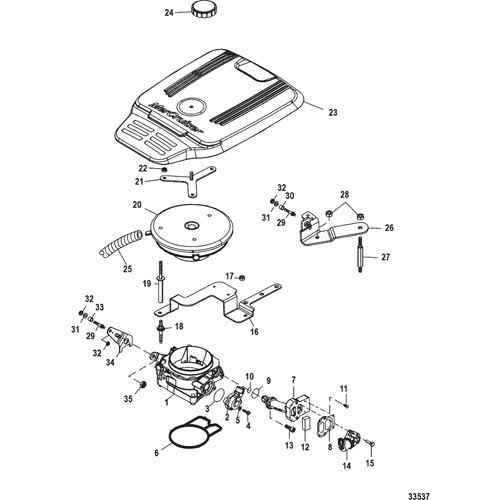

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System
- Cool Fuel System -Bravo(SN 1A091622 and Below)
- Cool Fuel System -Bravo(SN 1A091623 and Above)
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components, Digital (SN 1A091517 and Below)
- Electrical Components, Digital (SN 1A091518 to 1A091825)
- Electrical Components, Digital (SN 1A091826 and Up)
- Electrical Components, Mechanical (SN 1A091517 and Below)
- Electrical Components, Mechanical (SN 1A091518 to 1A091825)
- Electrical Components, Mechanical (SN 1A091826 and Up)
- Exhaust Manifold and Elbow
- Exhaust Risers
- Front Cover and Circulating Pump
- Fuel Module Components -Bravo(SN 1A091622 and Below)
- Fuel Module Components -Bravo(SN 1A091623 and Above)
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components (27-861246A05), Engine Overhaul
- Intake Manifold and Fuel Rail
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Standard Cooling System
- Starter Motor
- Thermostat and Housing
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Transmission and Engine Mounting(BORG-WARNER 5000)
- Transmission and Engine Mounting(BORG-WARNER 71C and 72C)
- Transmission and Engine Mounting(HURTH 630)
- Transmission and Related Parts(BORG-WARNER 71C and72C)
- Transmission and Related Parts(Hurth 630 800)
- Transmission(WALTER V-DRIVE)
- Water Distribution Housing
- Water Drain, Air Manifold and Air Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0069801 | THROTTLE BODY ASSEMBLY | 1 | 888770T | |||||
| 2 | 853678T | SENSOR, TPS | 1 | ||||||
| 3 | NSS | NOT SOLD SEPARATE, O-RING | 1 | This Part is not sold separately | |||||
| 4 | NSS | NOT SOLD SEPARATE, SCREW KIT, TP | 2 | This Part is not sold separately | |||||
| 5 | NSS | NOT SOLD SEPARATE, O-RING | 2 | This Part is not sold separately | |||||
| 6 | 27-885172 | GASKET, Throttle Body | 1 | ||||||
| 7 | 866295A02 | IAC ADAPTOR KIT | 1 | ||||||
| 8 | NSS | NOT SOLD SEPARATE, Gasket | 1 | This Part is not sold separately | |||||
| 9 | 25-863006 | O-RING | 1 | ||||||
| 10 | 25-808547 | O-RING | 1 | ||||||
| 11 | NSS | NOT SOLD SEPARATE, Screw-Drive | 4 | This Part is not sold separately | |||||
| 12 | 35-8M2001030 | FILTER | 1 | ||||||
| 13 | 10-4008612 | SCREW, (M4 x 12) | 2 | ||||||
| 14 | 862998 | VALVE, Idle Air | 1 | ||||||
| 15 | 10-4008820 | SCREW, (M6 x 20) | 2 | ||||||
| 16 | 863647T | BRACKET | 1 | ||||||
| 17 | 11-401366 | NUT, (M6) Stainless Steel | 1 | ||||||
| 18 | 16-885171 | STUD | 3 | ||||||
| 19 | 16-864338 | STUD, Special | 3 | ||||||
| 20 | 863416T | FLAME ARRESTOR | 1 | ||||||
| 21 | 863423 | BRACKET, Cover Mount | 1 | ||||||
| 22 | 11-401386 | 602-98-206-03 | NUT, (M6) Stainless Steel | 3 | |||||
| 23 | 879288T67 | COVER, Silver | 3 | ||||||
| 24 | 11-863701 | KNOB, Engine Cover | 1 | ||||||
| 25 | 32-1589424 | HOSE, (16.50 Inches Bulk), Breather | 1 | ||||||
| 26 | 863420T | BRACKET, Throttle Anchor | 1 | ||||||
| 27 | 16-863439 | STUD | 1 | ||||||
| 28 | 11-401366 | NUT, (M6) Stainless Steel | 2 | ||||||
| 29 | 16-97477A3 | STUD KIT, Throttle Anchor | 2 | ||||||
| 29 | 16-866641A01 | STUD KIT, Throttle Anchor | 2 | (SEACORE) | |||||
| 30 | 23-31866 | SPACER, (.256 x .313 x .625) | 2 | ||||||
| 30 | 23-11284 | SPACER, (.62 Diameter) | 1 | ||||||
| 31 | 12-20533 | 602-98-260-49 | WASHER | 2 | |||||
| 32 | 11-8267139 | NUT, (.250-28) | 3 | ||||||
| 32 | 11-826709109 | NUT, (.250-28) Stainless Steel | 3 | (SEACORE) | |||||
| 33 | NSS | NOT SOLD SEPARATE, Spacer | 1 | This Part is not sold separately | |||||
| 34 | 863417 | BRACKET, Throttle | 1 | ||||||
| 35 | 11-8267138 | NUT, (.25-20) | 1 | ||||||
| 35 | 11-826709108 | NUT, (.250-20) Stainless Steel | 1 | (SEACORE) |
