6.2L MPI MIE EC - Serial 1A091600 Thru 1A092168 - Transmission and Related Parts(Hurth 630 800)

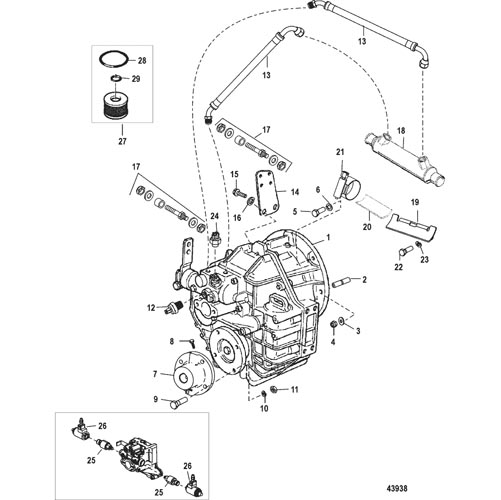

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling Sys., Sea Water Pump Hoses (1A091622 and Below)
- Closed Cooling Sys., Sea Water Pump Hoses (1A091623 and Above)
- Closed Cooling System (INLINE)
- Closed Cooling System (V-DRIVE)
- Closed Cooling System, Heat Exchanger
- Closed Cooling System, Poppet Valve
- Cool Fuel System -Bravo(SN 1A091622 and Below)
- Cool Fuel System -Bravo(SN 1A091623 and Above)
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head Assembly
- Distributor and Ignition Components
- Electrical Components, Digital Throttle and Shift
- Electrical Components, Mechanical Throttle and Shift
- Exhaust Manifold and Elbow
- Front Cover and Circulating Pump
- Fuel Module Components -Bravo(SN 1A091622 and Below)
- Fuel Module Components -Bravo(SN 1A091623 and Above)
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components, Engine Overhaul
- Intake Manifold and Fuel Rail
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter
- Rocker Cover
- Sea Water Pump Assembly
- Standard Cooling System -INLINE
- Standard Cooling System, V-DRIVE
- Starter Motor
- Thermostat and Housing, Closed Cooling
- Thermostat and Housing, Standard Cooling
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Transmission and Engine Mounting(BORG-WARNER 5000)
- Transmission and Engine Mounting(BORG-WARNER 71C and 72C)
- Transmission and Engine Mounting(HURTH 630)
- Transmission and Related Parts(BORG-WARNER 5000)
- Transmission and Related Parts(BORG-WARNER 71C and 72C)
- Transmission and Related Parts(Hurth 630 800)
- Transmission(WALTER V-DRIVE)
- Water Distribution Housing
- Water Drain, Air Manifold and Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 863744T2 | TRANSMISSION, (1.5:1 Ratio) (630A) Down Angle | 1 | ||||||
| 1 | 863744T3 | TRANSMISSION, (2.0:1 Ratio) (630A) Down Angle | 1 | ||||||
| 1 | 863744T4 | TRANSMISSION, (2.50:1 Ratio) (630A) Down Angle | 1 | ||||||
| 1 | 863744T5 | TRANSMISSION, (2.70:1 Ratio) (630A) Down Angle | 1 | ||||||
| 1 | 806730A1 | TRANSMISSION, (2.85:1 Ratio) (800A) Down Angle | 1 | No Longer Available | |||||
| 1 | 8M0070754 | TRANSMISSION, (1.2:1 Ratio) (630A) Down Angle | 1 | ||||||
| 1 | 865703T02 | TRANSMISSION, (1.5:1 Ratio) (630A) Down Angle | 1 | ||||||
| 1 | 865703T03 | TRANSMISSION, (2.0:1 Ratio) (630A) Down Angle | 1 | ||||||
| 1 | 865703T04 | TRANSMISSION, (2.50:1 Ratio) (630A) Down Angle | 1 | ||||||
| 1 | 865703T05 | TRANSMISSION, (2.70:1 Ratio) (630A) Down Angle | 1 | ||||||
| 1 | 865705T01 | TRANSMISSION, (2.85:1 Ratio) (800A) Down Angle | 1 | ||||||
| 1 | 863745T2 | TRANSMISSION, (1.5:1 Ratio) (630V) V-Drive | 1 | ||||||
| 1 | 863745T3 | TRANSMISSION, (2.0:1 Ratio) (630V) V-Drive | 1 | ||||||
| 1 | 863745T4 | TRANSMISSION, (2.5:1 Ratio) (630V) V-Drive | 1 | ||||||
| 1 | 865704T02 | TRANSMISSION, (1.5:1 Ratio) (630V) V-Drive | 1 | ||||||
| 1 | 865704T03 | TRANSMISSION, (2.0:1 Ratio) (630V) V-Drive | 1 | ||||||
| 1 | 865704T04 | TRANSMISSION, (2.5:1 Ratio) (630V) V-Drive | 1 | ||||||
| 2 | 16-805259 | STUD | 4 | ||||||
| 2 | 16-8M0034453 | STUD, (.437-14/.437-20 x 2.190) | 4 | 57933 | |||||
| 3 | 12-22248 | WASHER, (.453 x .875 x .060) | 4 | ||||||
| 3 | 12-79552 | WASHER, (.453 x .750 x .062) Stainless Steel | 4 | ||||||
| 4 | 11-34933 | NUT, (.437-20) Stainless Steel | 4 | ||||||
| 4 | 11-859116 | NUT, (.437-20) | 4 | ||||||
| 5 | 10-47462 | SCREW, (.437-14 x 1.250) | 2 | ||||||
| 6 | 13-32993 | LOCKWASHER, (.437) | 2 | 13-37272 | |||||
| 7 | 79476A1 | FLANGE ASSEMBLY, (5.00 x 1.00) | OPT | ||||||
| 7 | 79476A3 | FLANGE ASSEMBLY, (5.00 x 1.25) | OPT | ||||||
| 7 | 79476A4 | FLANGE ASSEMBLY, (5.00 x 1.375) | OPT | ||||||
| 7 | 79476A5 | FLANGE ASSEMBLY, (5.00 x 1.50) | OPT | ||||||
| 7 | 79476A6 | FLANGE ASSEMBLY, (5.00 x 1.75) | OPT | ||||||
| 8 | 10-60171 | SCREW, (.375-16 x 1.250) | 2 | 10-60170 | |||||
| 8 | 10-60169 | SCREW, (.375-16 x .750) | 2 | ||||||
| 9 | 10-805159 | SCREW, (.437-20 x 1.500) | 4 | 10-52498 | |||||
| 11 | 11-22024 | NUT, (.437-14) | 4 | ||||||
| 12 | 87-88031 | SWITCH ASSEMBLY | 1 | 87-813708 | |||||
| 13 | 32-8054781 | HOSE, (19.50) | 2 | 32-8126992 | |||||
| 14 | 806238 | BRACKET | 1 | ||||||
| 15 | 10-40001124 | SCREW, (M8 x 14) | 2 | ||||||
| 16 | 13-400247 | LOCKWASHER, (M8) | 2 | ||||||
| 17 | 16-97477A3 | STUD KIT | 2 | 16-97477, 16-97477A1 | |||||
| 18 | 863832T01 | COOLER, Transmission Oil | 1 | ||||||
| 19 | 805546A2 | BRACKET, Oil Cooler | 1 | ||||||
| 20 | 772233 | PAD | 1 | ||||||
| 21 | 54-815504232 | CLAMP, Worm Gear | 1 | 8M2001490 | |||||
| 22 | 10-34353 | SCREW, (.375-16 x 1.00) | 1 | ||||||
| 23 | 13-35048 | 700-21495 | LOCKWASHER, (.375) | 1 | |||||
| 24 | 87-813300 | SWITCH, Neutral Safety | 1 | ||||||
| 25 | 865664 | PRESSURE TRANSDUCER, 500 PSI | 2 | ||||||
| 26 | 35-879194241 | FLUID FILTER KIT | 1 | 815419 | |||||
| 27 | 25-813407 | O-RING | 1 | ||||||
| 28 | NSS | NOT SOLD SEPARATE, O-RING | 1 |
