135 VERADO 4-STROKE 4 CYL - Serial 0P419487 Thru 0P464487 - Cylinder Head and Camshaft

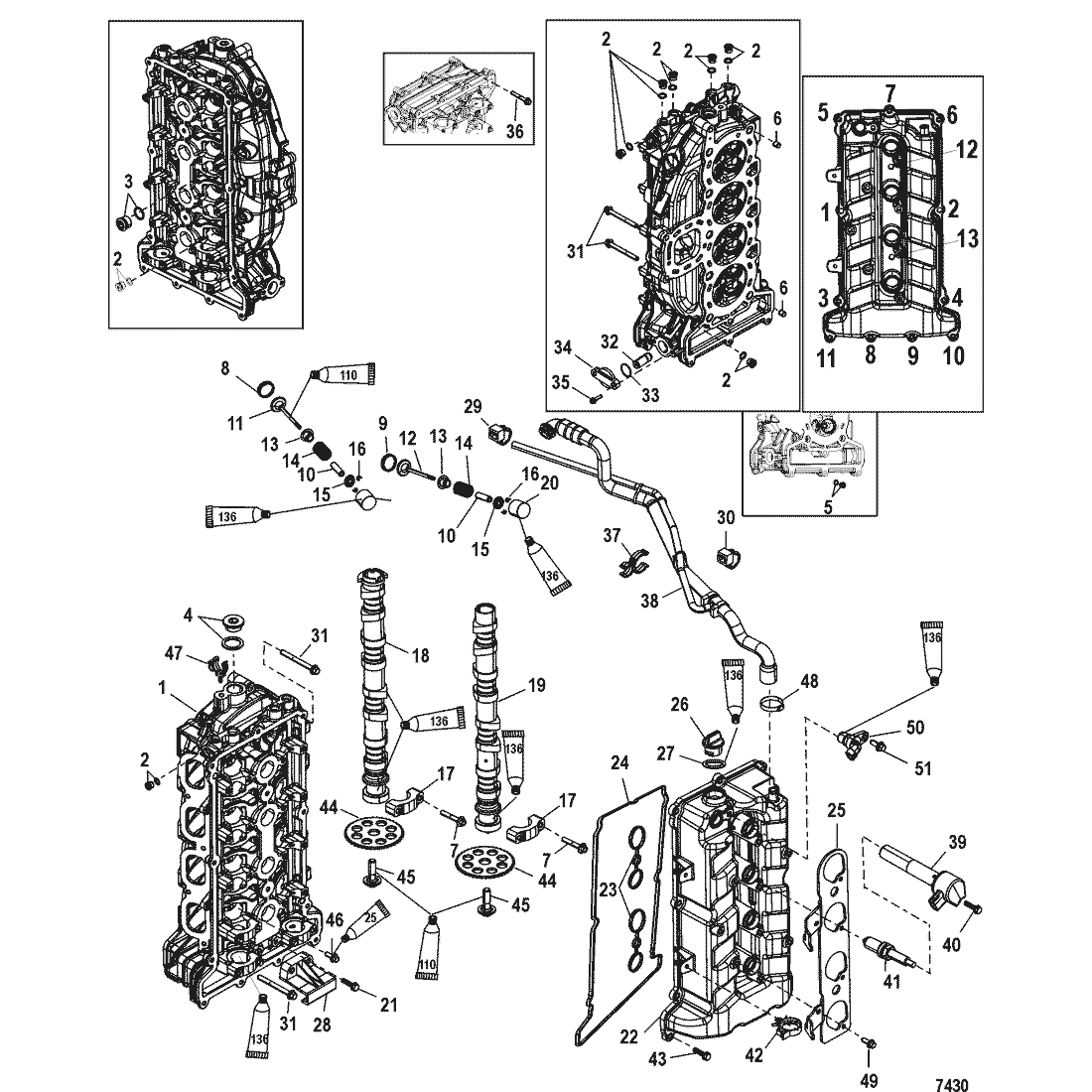

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold
- Charge Cooler/Intake Manifold Hose Routings
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Induction Components
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Powerhead Gasket Set Components
- Rear Cowl
- Shift Components (Serial Number 1B290522 and Below)
- Shift Components (Serial Number 1B290523 and Up)
- Starboard Cylinder Block/Oil Cooler
- Starter Motor
- Steering Cylinder Assembly
- SuperCharger
- Swivel Bracket and Steering Arm
- Tools
- Tools
- Top Cowl
- Transom Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 900-880534A08 | CYLINDER HEAD ASSEMBLY, Complete | 1 | ||||||
| 1 | 900-8M0110154 | CYLINDER HEAD ASSEMBLY | 1 | 880534A06 | |||||
| 2 | 19-889767 | PLUG, (12 mm) | 8 | ||||||
| 3 | 19-891953 | PLUG, (18 mm) | 1 | ||||||
| 4 | 19-896951 | PLUG, (24 mm) | 1 | ||||||
| 5 | 19-8M0087446 | PLUG, (10 mm) | 1 | 896576 | |||||
| 6 | 17-880524 | PIN, Dowel (14 mm) | 2 | ||||||
| 7 | 10-892454035 | BOLT, (M6 x 36) | 20 | ||||||
| 8 | 880533 | SEAT, Intake Valve | 8 | ||||||
| 9 | 880535 | SEAT, Exhaust Valve | 8 | ||||||
| 10 | 880537 | GUIDE, Intake and Exhaust Valves | 16 | ||||||
| 11 | 20-898907 | VALVE, Intake | 8 | 897629 | |||||
| 12 | 20-898908 | VALVE, Exhaust | 8 | 897630 | |||||
| 13 | 26-896880 | SEAL, Valve | 16 | ||||||
| 14 | 24-8M0103092 | SPRING, Intake and Exhaust Valve | 16 | 895815 | |||||
| 15 | 8M0908500 | RETAINER ASSEMBLY, Valves | 16 | 880542A1 | |||||
| 16 | 28-880543 | KEY | 32 | ||||||
| 17 | NSS | CAP | 10 | Not Sold Separate | |||||
| 18 | 400-892861T02 | CAMSHAFT ASSEMBLY, Intake | 1 | ||||||
| 19 | 400-892862T03 | CAMSHAFT ASSEMBLY, Exhaust | 1 | 892862T02 | |||||
| 20 | 899912001 | TAPPET | 16/AR | 8805481 | |||||
| 20 | 899912002 | TAPPET | 16/AR | 8805482 | |||||
| 20 | 899912003 | TAPPET | 16/AR | 8805483 | |||||
| 20 | 899912004 | TAPPET | 16/AR | 8805484 | |||||
| 20 | 899912005 | TAPPET | 16/AR | 8805485 | |||||
| 20 | 899912006 | TAPPET | 16/AR | 8805486 | |||||
| 20 | 899912007 | TAPPET | 16/AR | 8805487 | |||||
| 20 | 899912008 | TAPPET | 16/AR | 8805488 | |||||
| 20 | 899912009 | TAPPET | 16/AR | 8805489 | |||||
| 20 | 899912010 | TAPPET | 16/AR | 88054810 | |||||
| 20 | 899912011 | TAPPET | 16/AR | 88054811 | |||||
| 20 | 899912012 | TAPPET | 16/AR | 88054812 | |||||
| 20 | 899912013 | TAPPET | 16/AR | 88054813 | |||||
| 20 | 899912014 | TAPPET | 16/AR | 88054814 | |||||
| 20 | 899912015 | TAPPET | 16/AR | 88054815 | |||||
| 20 | 899912016 | TAPPET | 16/AR | 88054816 | |||||
| 20 | 899912017 | TAPPET | 16/AR | 88054817 | |||||
| 20 | 899912018 | TAPPET | 16/AR | 88054818 | |||||
| 20 | 899912019 | TAPPET | 16/AR | 88054819 | |||||
| 20 | 899912020 | TAPPET | 16/AR | 88054820 | |||||
| 20 | 899912021 | TAPPET | 16/AR | 88054821 | |||||
| 20 | 899912022 | TAPPET | 16/AR | 88054822 | |||||
| 20 | 899912023 | TAPPET | 16/AR | ||||||
| 20 | 899912024 | TAPPET | 16/AR | ||||||
| 20 | 899912025 | TAPPET | 16/AR | ||||||
| 20 | 899912026 | TAPPET | 16/AR | ||||||
| 20 | 899912027 | TAPPET | 16/AR | ||||||
| 20 | 899912028 | TAPPET | 16/AR | ||||||
| 20 | 899912029 | TAPPET | 16/AR | ||||||
| 20 | 899912030 | TAPPET | 16/AR | ||||||
| 20 | 899912031 | TAPPET | 16/AR | ||||||
| 20 | 899912032 | TAPPET | 16/AR | ||||||
| 20 | 899912033 | TAPPET | 16/AR | ||||||
| 20 | 899912034 | TAPPET | 16/AR | ||||||
| 20 | 899912035 | TAPPET | 16/AR | ||||||
| 21 | 10-892454030 | SCREW, (M6 x 30) | 2 | ||||||
| 22 | 880553A07 | COVER ASSEMBLY, Cam | 1 | No Longer Available | |||||
| 23 | 892584 | SEAL | 2 | ||||||
| 24 | 892893 | SEAL | 1 | ||||||
| 25 | 897637001 | PLATE, Coil | 1 | ||||||
| 26 | 859578A1 | PLUG ASSEMBLY, Oil | 1 | ||||||
| 27 | 25-90196 | O-RING, (.921 x .139) | 1 | ||||||
| 28 | 880558 | GUIDE, Short | 1 | ||||||
| 29 | 54-850181 | TIE STRAP, (11.750 Inches) | 1 | ||||||
| 30 | 54-850181 | TIE STRAP, (11.750 Inches) | 2 | ||||||
| 31 | 10-88552660 | SCREW, (M8 x 60) | 4 | ||||||
| 32 | 898463A01 | TENSIONER ASSEMBLY | 1 | 897797A01 | |||||
| 33 | 25-898836 | O-RING, Orange (Also part of Complete Cylinder Head) | 1 | 880631001 | |||||
| 34 | 8M0064752 | END CAP, Tensioner | 1 | 893338 | |||||
| 35 | 10-88552525 | SCREW, (M6 x 25) Stainless Steel | 2 | ||||||
| 36 | 10-88552540 | SCREW, (M6 x 40) Stainless Steel | 3 | ||||||
| 37 | 54-892833 | CLIP | 1 | ||||||
| 38 | 32-892812A03 | HOSE ASSEMBLY, Breather | 1 | ||||||
| 39 | 339-880615T01 | COIL ASSEMBLY | 4 | ||||||
| 40 | 10-88552525 | SCREW, (M6 x 25) Stainless Steel | 4 | ||||||
| 41 | 33-889246Q39 | SPARK PLUG, NGK-ILFR6G | 4 | 889680001 | |||||
| 42 | 54-858954 | CLIP, (.625) | 2 | ||||||
| 43 | 10-88552525 | SCREW, (M6 x 25) Stainless Steel | 13 | ||||||
| 44 | 43-880550 | SPROCKET, Cam Drive | 2 | ||||||
| 45 | 10-8M0021532 | SCREW, (M12 x 40) (Left Hand) | 2 | 884403 | |||||
| 46 | 10-88552512 | SCREW, (M6 x 12) Stainless Steel | 2 | ||||||
| 47 | 54-889746001 | CLIP | 1 | ||||||
| 48 | 54-888988019 | CLAMP, (22.6 mm) | 1 | ||||||
| 49 | 10-88552512 | SCREW, (M6 x 12) Stainless Steel | 2 | ||||||
| 50 | 8M0011987 | SENSOR ASSEMBLY | 1 | 880609 | |||||
| 51 | 10-88552516 | SCREW, (M6 x 16) Stainless Steel | 1 | ||||||
| - | 27-896142A07 | GASKET SET, Powerhead | 1 | 896142A06 | |||||
| - | 61-896499A07 | POWERHEAD ASSEMBLY | 1 | 896499A06 |
