135 VERADO 4-STROKE 4 CYL - Serial 0P514869 and Up - Swivel Bracket and Steering Arm

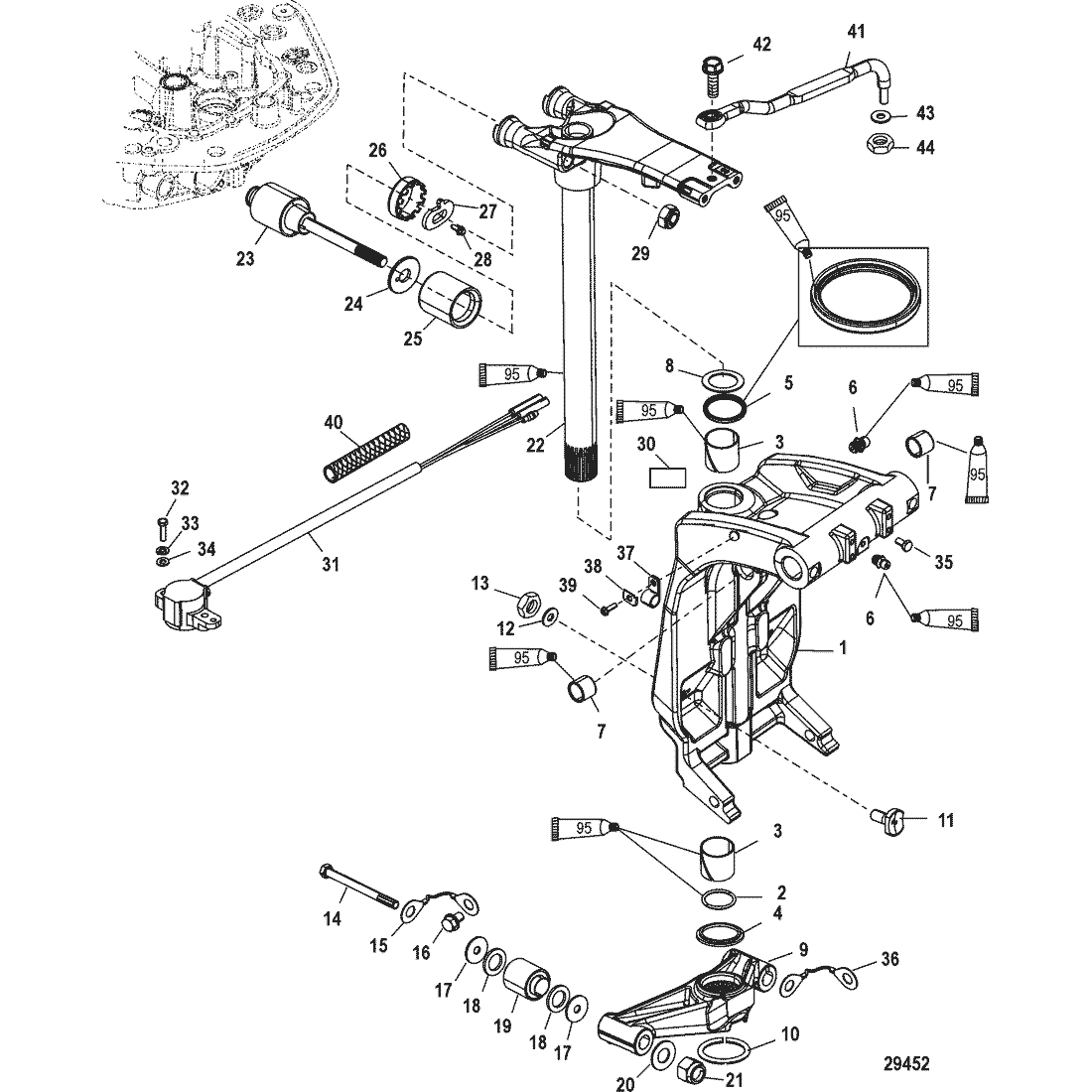

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold Hose Routings
- Charge Cooler/Intake Manifold(Gen I) End Cap Not Serviced
- Charge Cooler/Intake Manifold(Gen I) End Cap Serviced
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing (Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Prop Shaft-Counter Rotation 2B026816 & below
- Gear Housing, Prop Shaft-Counter Rotation 2B026817 & up
- Gear Housing, Propeller Shaft-Std Rotation 2B026816 & below
- Gear Housing, Propeller Shaft-Std Rotation 2B026817 & up
- Induction Components
- Mercathode Kit
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Powerhead Gasket Set Components
- Rear Cowl
- Shift Components
- Starboard Cylinder Block/Oil Cooler(1B830999 and Below)
- Starboard Cylinder Block/Oil Cooler(1B831000 and Above)
- Starter Motor
- SuperCharger
- Swivel Bracket and Steering Arm
- Tools
- Tools
- Top Cowl
- Transom Brackets
- Water Separator Filter Kit, 8M0046336
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1499-8M0102865 | SWIVEL BRACKET ASSEMBLY, Black | 1 | 8710T20 | |||||
| 2 | 25-33504 | O-RING | 1 | ||||||
| 3 | 23-818764 | BUSHING | 2 | ||||||
| 4 | 23-816039 | SPACER | 1 | ||||||
| 5 | 26-87735 | SEAL, Oil (Lower) | 1 | ||||||
| 6 | 22-74036 | FITTING, Grease | 2 | ||||||
| 7 | 23-821207 | BUSHING | 2 | ||||||
| 8 | 12-816432 | THRUST WASHER | 1 | ||||||
| 9 | 896888T | YOKE, Bottom | 1 | ||||||
| 10 | 53-67684 | RING, Retaining | 1 | ||||||
| 11 | 8M0045383 | STRIKER PLATE | 2 | 996301 | |||||
| 12 | 13-58643 | LOCKWASHER, (.375) | 2 | ||||||
| 13 | 11-46335 | NUT, (.375-24) | 2 | ||||||
| 14 | 10-896217 | BOLT, (M14 x 175) | 2 | ||||||
| 15 | 88238A10 | CABLE ASSEMBLY, Ground | 1 | ||||||
| 16 | 10-41508 | SCREW, (.250-20 x .500) Stainless Steel | 1 | ||||||
| 17 | 12-815432 | WASHER, (.562 x 2.00 x .125) | 4 | ||||||
| 18 | 12-8154331 | WASHER, (1.25 x 2.00 x .19) | 4 | ||||||
| 19 | 813771003 | MOUNT, Lower | 2 | ||||||
| 20 | 12-825190 | WASHER | 2 | ||||||
| 21 | 11-896602 | NUT, (M14) | 2 | ||||||
| 22 | 17-8M0109459 | SWIVEL PIN ASSEMBLY | 1 | 826432T10 | |||||
| 23 | 897991A01 | MOUNT ASSEMBLY | 2 | ||||||
| 24 | 12-898443 | WASHER, Retainer | 2 | ||||||
| 25 | 898444001 | SLEEVE | 2 | ||||||
| 26 | 11-897731001 | NUT, Spanner | 2 | ||||||
| 27 | 897728 | RETAINER | 2 | ||||||
| 28 | 10-88552520 | SCREW, (M6 x 20 MM) Stainless Steel | 2 | ||||||
| 29 | 11-896602 | NUT, (M14) | 2 | ||||||
| 30 | NSS | Decal-Serial Overlaminate | 1 | Not Sold Separate | |||||
| 31 | 896688001 | SENDER ASSEMBLY, Trim, Digital | 1 | ||||||
| 32 | 10-852368 | SCREW, (#10-24 x .750) | 2 | ||||||
| 33 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 34 | 12-89302 | WASHER, (.203 x .406 x .040) | 2 | ||||||
| 35 | 10-64014 | SCREW, (.250-28 x .500) | 2 | ||||||
| 36 | 88238T22 | CABLE ASSEMBLY | 1 | ||||||
| 37 | 54-22740 | CLIP | 2 | ||||||
| 38 | 8M0084613 | C WASHER | 1 | 69205 | |||||
| 39 | 10-878609 | SCREW, (#10-16 x .600) | 1 | ||||||
| 40 | 32-828547353 | CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk) (Cut to16 Inches) | 1 | ||||||
| 41 | 92876A12 | LINK ROD ASSEMBLY | 1 | ||||||
| 42 | 10-849838 | SCREW, (.375-24 x 1.250) | 1 | ||||||
| 43 | 12-37828 | WASHER, (.390 x .625 x .062) Stainless Steel | 2 | ||||||
| 44 | 11-8M0042636 | NUT, (.375-24) Brass | 1 |
