135 VERADO 4-STROKE 4 CYL - Serial 0P514869 and Up - Gear Housing, Propeller Shaft-Std Rotation 2B026816 & below

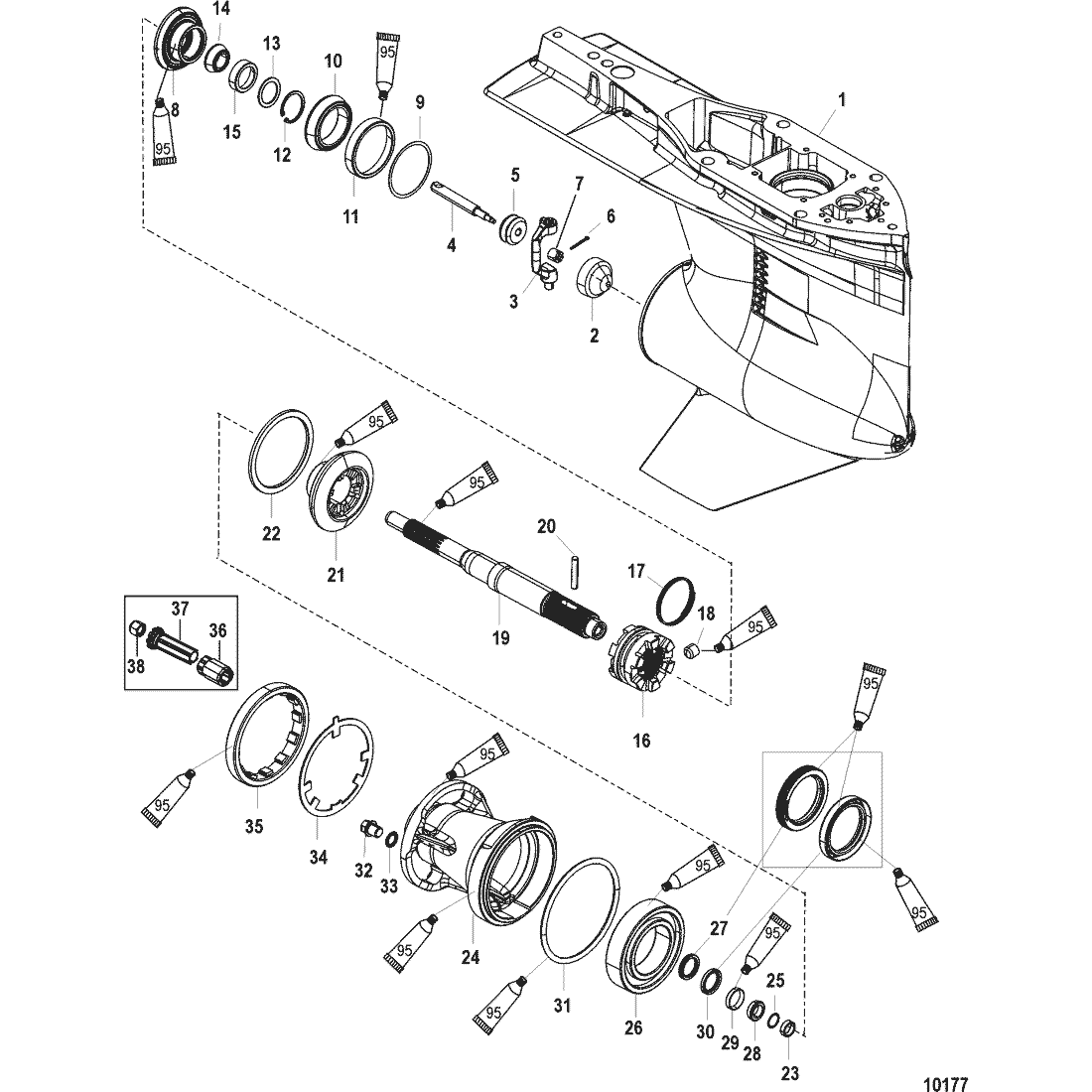

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1600-880686T23         GEAR HOUSING ASSEMBLY, Complete 1
- 1600-880686T24         GEAR HOUSING ASSEMBLY, Complete 1
1 1600-8M0056631         GEAR HOUSING ASSEMBLY, Basic 1   No Longer Available
2 NSS         Plug 1   Not Sold Seperate
3 896847A01         CRANK, Shifter 1 892075
4 19755T7         SPOOL ASSEMBLY 1
5 NSS         Spool 1   Not Sold Seperate
6 18-469501         COTTER PIN 1
7 NSS         Sleeve Adjusting 1   Not Sold Seperate
8 43-880709A03         GEAR ASSEMBLY, Forward 1 880709A02
9 15-8M0063270         SHIM SET AR   No Longer Available
10 31-884323T01         BEARING ASSEMBLY, Roller 1
11 NSS         Cup 1   Not Sold Seperate
12 53-8M0051043         RING, Retaining 1 23721
13 12-8M0053823         THRUST WASHER 1 892805
14 31-884325T01         BEARING ASSEMBLY, Roller-Tappered 1
15 NSS         Cup 1   Not Sold Seperate
16 52-880714T         CLUTCH 1
17 24-30893         SPRING 1
18 17-828356     700-21104   PIN, Detent 1
19 44-888530         PROPELLER SHAFT 1   No Longer Available
20 17-8M0100263         PIN, Cross 1 30632
21 43-880710A02         GEAR ASSEMBLY, Reverse 1
22 880699         THRUST RING 1
23 23-891919001         SPACER, Thrust 1
24 880696A08         CARRIER ASSEMBLY, Bearing 1
25 15-891936A01         SHIM SET AR
26 30-884329T         BEARING, Ball 1
27 26-888483         SEAL, Oil 1
28 31-884330T01         BEARING ASSEMBLY, Tapered 1
29 NSS         Cup 1   Not Sold Seperate
30 26-888483         SEAL, Oil 1 896600
31 25-896524         O-RING, (3.850 x .210) 1
32 10-880717A01         SCREW/SEAL KIT 1
33 26-830749         SEAL 1
34 14-880697         KEYED WASHER 1
35 8M2011027         RETAINER 1 79448
36 896233A01         DRIVE SLEEVE ASSEMBLY 1
37 8M0061986         ADAPTOR 1 878584Q1
38 11-52707T1         PROP NUT KIT, (.750-16) 1
38 11-52707Q1         PROP NUT KIT, (.750-16) 1
- 26-830749A01         SEAL KIT, Gear Housing 1
