135 VERADO 4-STROKE 4 CYL - Serial 1B2270001 Thru 1B381711 - Power Trim Components

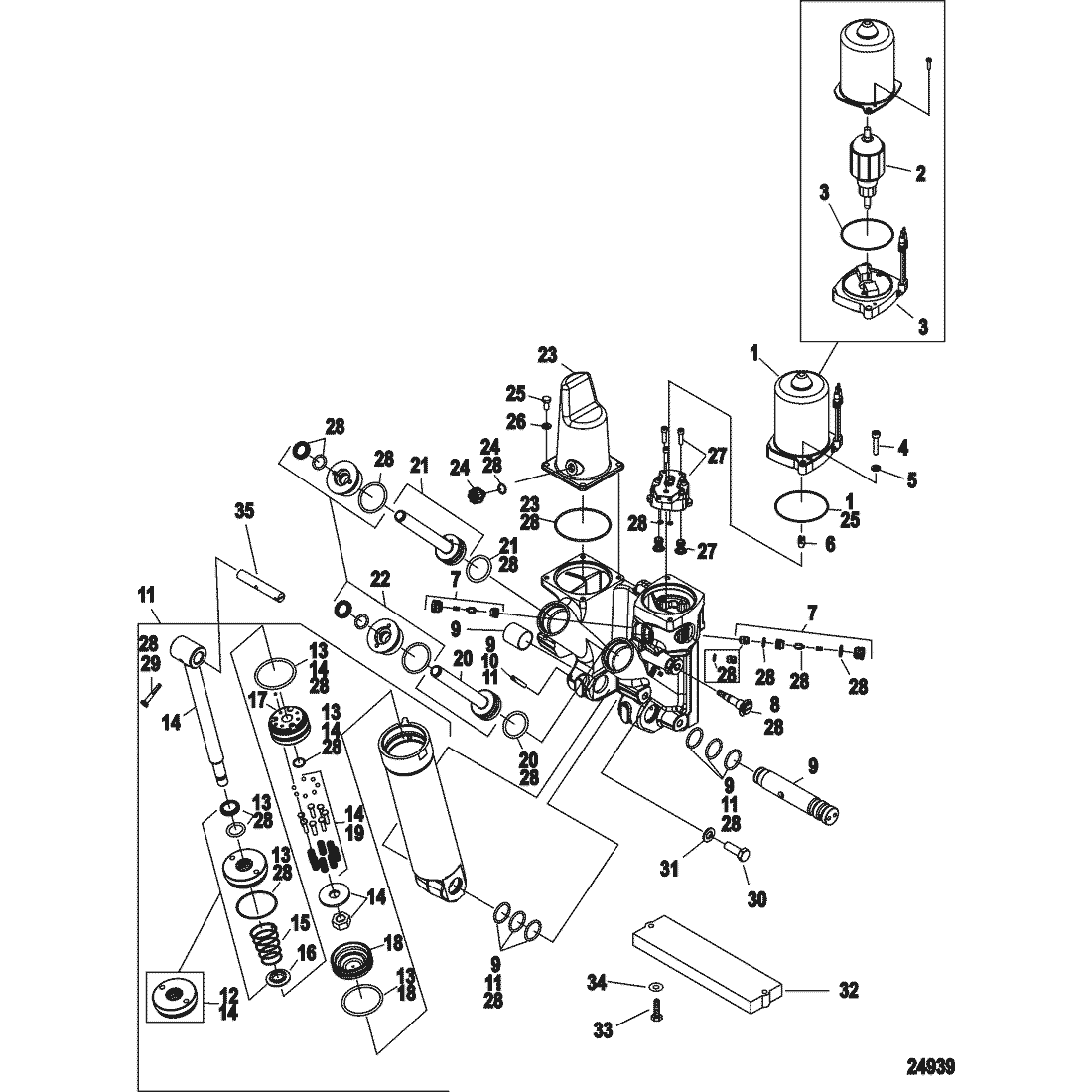

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold
- Charge Cooler/Intake Manifold Hose Routings
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Induction Components
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Powerhead Gasket Set Components
- Rear Cowl
- Shift Components(Serial Number 1B290522 and Below)
- Shift Components(Serial Number 1B290523 and Up)
- Starboard Cylinder Block/Oil Cooler
- Starter Motor
- Steering Cylinder Assembly
- SuperCharger
- Swivel Bracket and Steering Arm
- Tools
- Tools
- Top Cowl
- Transom Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 855998A11 | POWER TRIM ASSEMBLY, Complete | 1 | 855998A07 | |||||
| 1 | 8M0031551 | TRIM MOTOR | 1 | No Longer Available | |||||
| 2 | NSS | Armature | 1 | Not Sold Separate | |||||
| 3 | NSS | End Frame | 1 | Not Sold Separate | |||||
| 4 | 10-82494830 | SCREW, (M6 x 30) | 2 | ||||||
| 5 | 13-400256 | LOCKWASHER, (M6) | 2 | ||||||
| 6 | 8M0090403 | DRIVESHAFT | 1 | 8782451 | |||||
| 7 | 878410A1 | PO CHECK KIT | 1 | ||||||
| 8 | 893929A01 | MANUAL RELEASE ASSEMBLY (Includes Reference #26) | 1 | 813442A2 | |||||
| 9 | 878241A03 | SHAFT KIT | 1 | 878241A02 | |||||
| 10 | 17-878267 | PIN | 1 | ||||||
| 11 | 898479A03 | CYLINDER ASSEMBLY, Tilt | 1 | 898479A02 | |||||
| 12 | 8M0090322 | GUIDE KIT (Includes Reference #26) | 1 | 878239A1 | |||||
| 13 | 878409A1 | O-RING KIT (Includes Reference #26) | 1 | ||||||
| 14 | NSS | Shock Rod Kit | 1 | Not Sold Separate | |||||
| 15 | NSS | Spring-Damper | 1 | Not Sold Separate | |||||
| 16 | NSS | Plate-Damper | 1 | Not Sold Separate | |||||
| 17 | NSS | Shock Piston | 1 | Not Sold Separate | |||||
| 18 | 878242A02 | PISTON ASSEMBLY, Memory | 1 | 878242A1 | |||||
| 19 | 878406A02 | REPAIR KIT, Check Valve (Includes Reference #26) | 1 | 878406A1 | |||||
| 20 | 878414T01 | PISTON ASSEMBLY (Starboard) | 1 | 878414A1 | |||||
| 21 | 878413A1 | PISTON ASSEMBLY (Port) | 1 | ||||||
| 22 | 8M0021648 | GUIDE ASSEMBLY | 2 | 878243A1 | |||||
| 23 | 878264A1 | RESERVOIR KIT | 1 | ||||||
| 24 | 19-811613 | PLUG ASSEMBLY | 1 | ||||||
| 25 | 10-4000327 | SCREW, (M6 x 14) | 4 | ||||||
| 26 | 12-4002315 | WASHER | 4 | 43450 | |||||
| 27 | 892251A01 | PUMP KIT | 1 | ||||||
| 28 | 878408A1 | REPAIR KIT, Power Trim | 1 | ||||||
| 29 | 17-821539 | PIN, Trilobe | 1 | ||||||
| 30 | 10-858771 | SCREW, (M10 x 30) | 6 | ||||||
| 31 | 12-4002319 | WASHER | 6 | ||||||
| 32 | 97-818298Q1 | ANODE KIT | 1 | ||||||
| 33 | 10-4000330 | SCREW, (M6 x 25) | 2 | ||||||
| 34 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | ||||||
| 35 | 99625003 | SHAFT, Upper Tilt | 1 |
