135 VERADO 4-STROKE 4 CYL - Serial 1B2270001 Thru 1B381711 - Transom Brackets

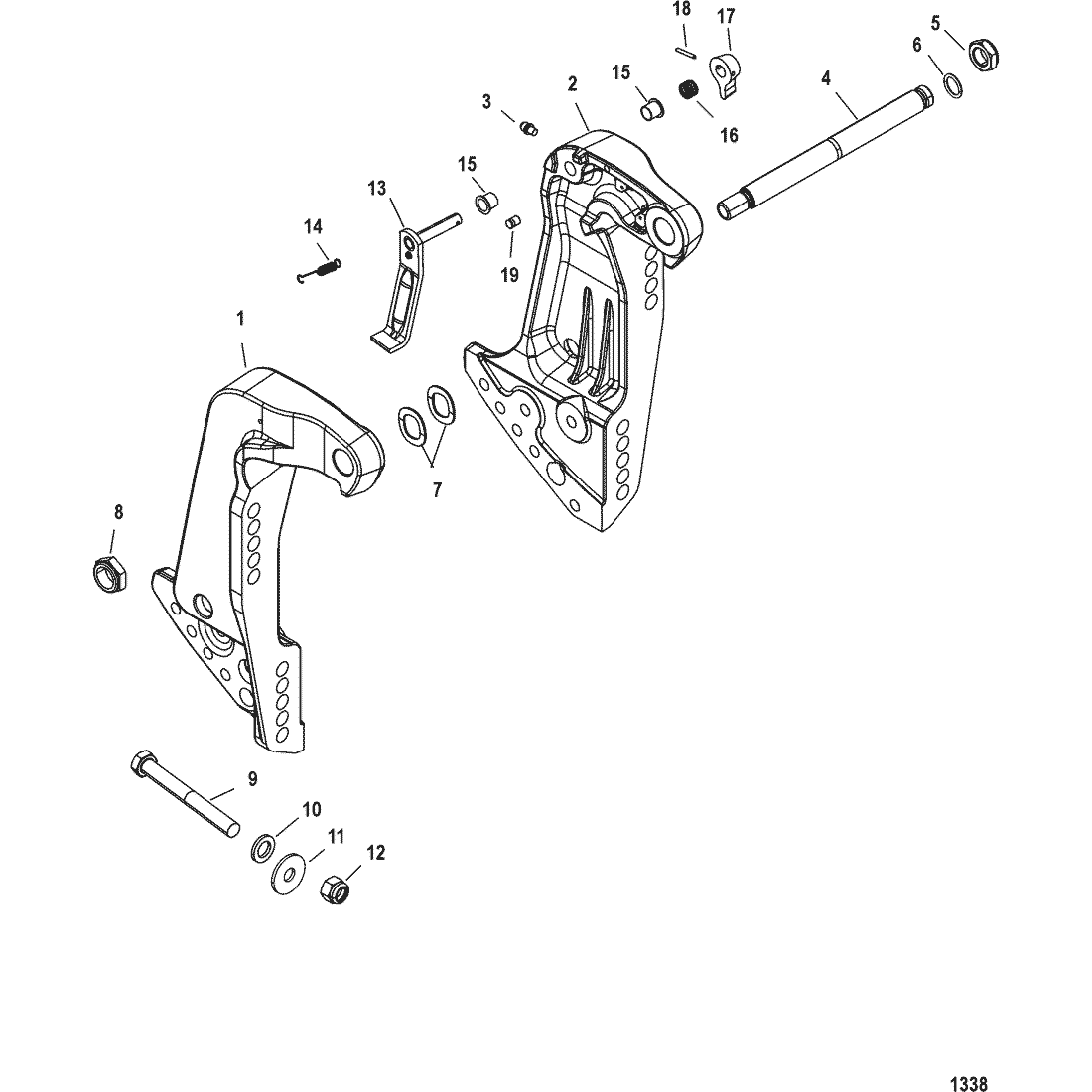

Section Drawing: (Hover or click to view larger)
