200XS DFI 2.5L ROS - Serial 1E050852 and Up - Transom Brackets(Short)

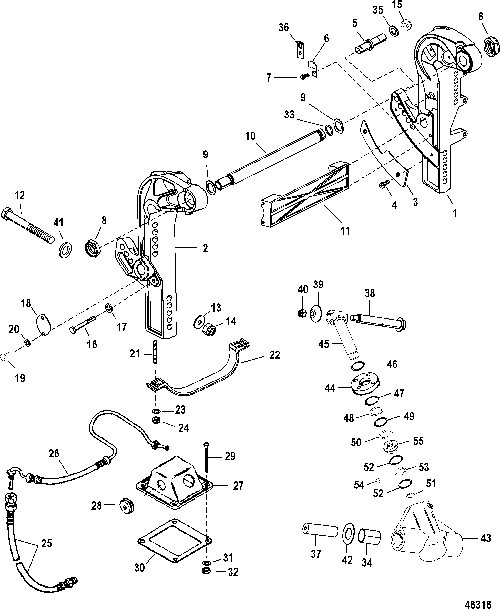

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components, SN 1B884880 and below
- Air Compressor Components, SN 1B884881 and up
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Drive) Standard/Counter Rotatation-Sportmaster
- Gear Housing, Propeller Shaft-Counter-Sportmaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Oil Injection Components
- Oil Lines
- PCM Mounting
- Starter Motor
- Swivel Bracket(Short)
- Throttle Lever And Shift Shaft
- Top Cowl
- Transom Brackets(Short)
- Trim Pump and Mounting Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1494-847800A03 | BRACKET ASSEMBLY, Transom - Port | 1 | ||||||
| 2 | 1495-847801A03 | BRACKET ASSEMBLY, Transom - Starboard | 1 | ||||||
| 3 | 847798A02 | WEAR PAD KIT | 1 | ||||||
| 4 | 10-86843 | SCREW, (#10-24 x .500) | 4 | ||||||
| 5 | 16-8M0034469 | STUD | 2 | ||||||
| 6 | 54-88512 | CLAMP | 4 | ||||||
| 7 | 10-88829 | SCREW, (#10-24 x .500) | 6 | ||||||
| 8 | 11-858869 | NUT, (.875-14) | 1 | ||||||
| 9 | 13-88750 | WASHER | 2 | ||||||
| 10 | 826125A1 | TILT TUBE | 1 | ||||||
| 11 | 85035T | SPACER | 1 | ||||||
| 12 | 10-677551 | SCREW, (.500-20 x 4.500) | 2/4 | ||||||
| 12 | 10-677552 | SCREW, (.500-20 x 6.500) | 2 | ||||||
| 13 | 12-28421 | WASHER, (1.5 x 3.05 x 0.13) Stainless Steel | 4 | ||||||
| 14 | 11-82671117 | NUT, (.500-20) | 4 | ||||||
| 15 | 11-826709117 | NUT, (.500-20) Stainless Steel | 2 | ||||||
| 16 | 10-70732 | SCREW, (.250-20 x 2.00) | 4 | ||||||
| 17 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 4 | ||||||
| 18 | 85026T | PLATE | 2 | ||||||
| 19 | 10-28636 | SCREW, (.250-20 x .750) | 4 | ||||||
| 20 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 4 | ||||||
| 21 | 16-8M0034451 | STUD, (.312-24 x 1.380) | 4 | 54343 | |||||
| 22 | 89949A1 | PLATE ASSEMBLY | 1 | ||||||
| 23 | 12-843108 | WASHER, (.330 x .560 x .060) Stainless Steel | 4 | ||||||
| 24 | 11-82670911 | NUT, (.312-24) Stainless Steel | 4 | ||||||
| 25 | 32-89024 | HOSE, Hydraulic, 6 Feet-Pump-Up/Port at Transom | 1 | ||||||
| 25 | 32-89023 | HOSE, Hydaulic, 6 Feet-Pump-Down/Starboard at Transom | 1 | ||||||
| 26 | 32-96993 | HOSE, Hydraulic, Cylinder-Up/Port at Transom | 1 | ||||||
| 26 | 32-96994 | HOSE, Hydraulic, Cylinder-Down/Starboard at Transom | 1 | ||||||
| 27 | 87871T | COVER | 1 | ||||||
| 28 | 25-45507 | GROMMET | 1 | ||||||
| 29 | 10-32866 | SCREW, (#10-32 x 2.00) Stainless Steel | 4 | ||||||
| 30 | 27-87775 | GASKET | 1 | ||||||
| 31 | 12-20878 | WASHER | 4 | ||||||
| 32 | 11-826709106 | NUT, (#10-32) Stainless Steel | 4 | ||||||
| 33 | 25-45711 | O-RING, (.612 x .103) | 1 | ||||||
| 34 | 23-847724 | BUSHING | 2 | ||||||
| 35 | 12-54012 | WASHER, (.530 x .870 x .105) Stainless Steel | 2 | ||||||
| 36 | 54-75275 | CLAMP | 2 | ||||||
| 37 | 17-85020T | PIN, Pivot | 2 | ||||||
| 38 | 847796 | PIN, Trim | 1 | ||||||
| 39 | 847797 | RETAINER | 1 | ||||||
| 40 | 11-82671317 | NUT, (.500-20) | 1 | ||||||
| 41 | 12-54012 | WASHER, (.530 x .870 x .105) Stainless Steel | 4 | ||||||
| 42 | 12-85022 | WASHER | 2 | ||||||
| 43 | 8M0050911 | TRIM CYLINDER ASSEMBLY | 1 | ||||||
| 44 | 44123 | RETAINER | 1 | ||||||
| 45 | 8185163 | TRIM ROD | 1 | ||||||
| - | 25-11163A1 | REPAIR KIT, Trim Cylinder | 1 | ||||||
| 46 | NSS | WIPER | 1 | Not Sold Separate | |||||
| 47 | NSS | BACKUP RING | 1 | Not Sold Separate | |||||
| 48 | NSS | O-RING | 1 | Not Sold Separate | |||||
| 49 | NSS | BACKUP RING | 1 | Not Sold Separate | |||||
| 50 | NSS | O-RING | 1 | Not Sold Separate | |||||
| 51 | NSS | O-RING | 1 | Not Sold Separate | |||||
| 52 | NSS | BACKUP RING | 2 | Not Sold Separate | |||||
| 53 | NSS | O-RING | 1 | Not Sold Separate | |||||
| 54 | NSS | GREASE HOLE COVER | 1 | Not Sold Separate | |||||
| 55 | 44125 | PISTON, Power Trim | 1 |
