496 Mag Base Model - Serial 0W060000 Thru 0W309999 - Exhaust Manifold, Elbow And Riser

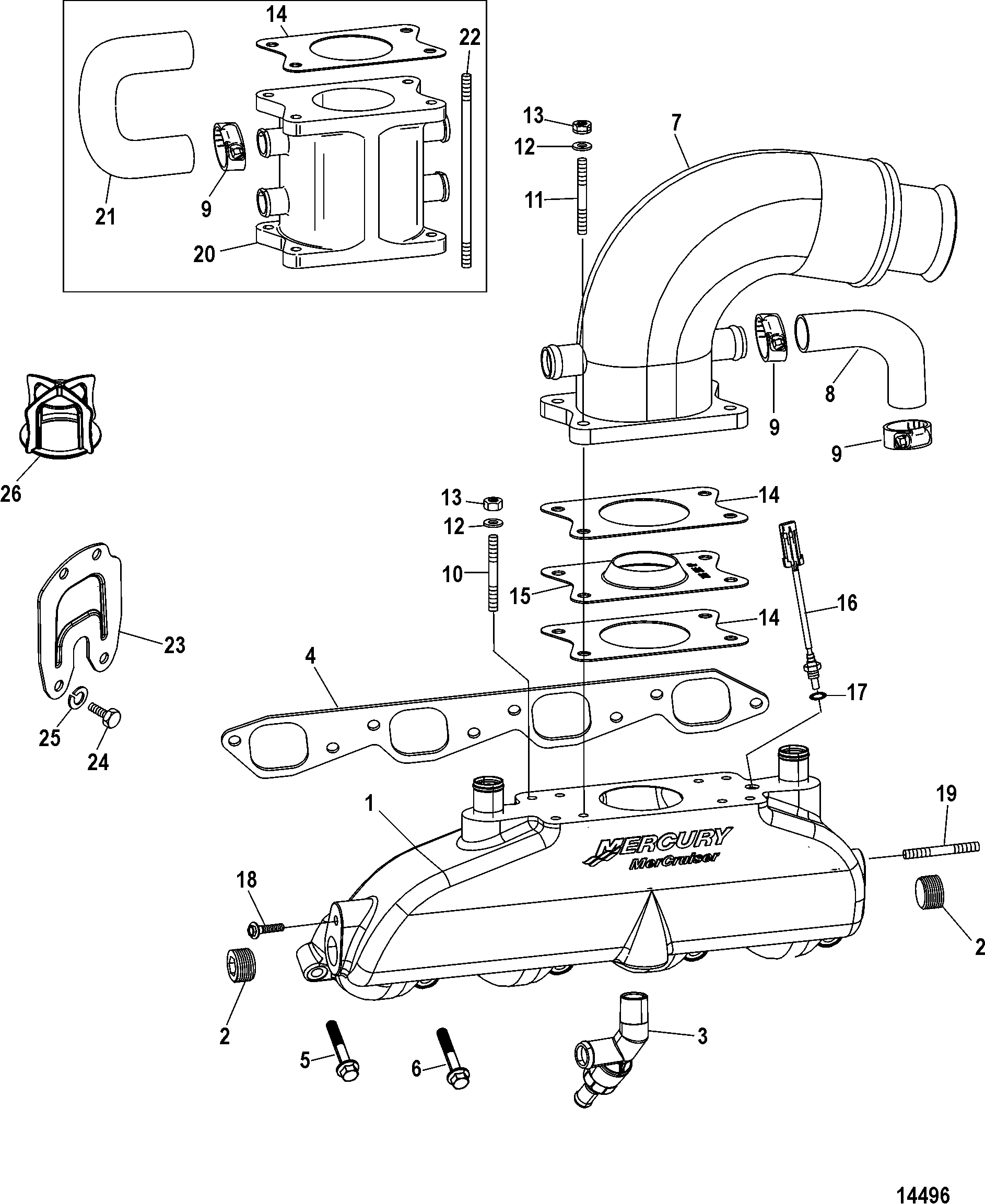

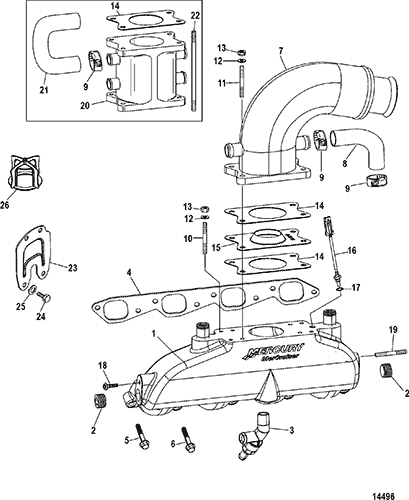

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Block, Camshaft And Pistons
- Block, Crankshaft, Oil Pump And Front Cover
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold, Elbow And Riser
- Flywheel Housing
- Fuel Module Components
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A02), Overhaul
- Intake Manifold
- Lifting Brackets And Wiring Harness
- Mercathode Kit
- Oil Pan And Drain System
- Pcm And Bracket
- Power Steering
- Remote Oil System
- Seawater Pump
- Shift Bracket (Digital Throttle And Shift)
- Shift Bracket, Mechanical Shift
- Smart Craft Sensor And Harnesses
- Starter And Alternator
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly (Complete)
- Water Drain System
| Ref. | OEM Part # | SEI # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 866178T01 | MANIFOLD ASSEMBLY, Exhaust | 2 | 863127T1 | |||||
| 2 | 22-866163 | PLUG, (.75-14) | 1 | ||||||
| 2 | 22-866164 | Fitting, Reducer(.75-14 x .125-27) | 1 | ||||||
| 2 | 22-428611 | 602-98-102-57 | FITTING, Pipe - Brass (.750-14) | 2 | |||||
| 3 | 22-865341A03 | FITTING ASSEMBLY, Drain - Stainless Steel | 1 | (Port Exhaust Manifold) | |||||
| 3 | 22-865828A02 | FITTING ASSEMBLY, Drain - Stainless Steel | 1 | (Starboard Exhaust Manifold) | |||||
| 4 | 27-46820 | 676-9-61400 | 700-33760 | GASKET, Exhaust Manifold to Cylinder Head | 2 | 2,3 | |||
| 5 | 10-40011151 | SCREW, (M8 x 35) Stainless Steel | 8 | ||||||
| 6 | 10-40011158 | SCREW, (M8 x 70) Stainless Steel | 8 | ||||||
| 7 | 865331A02 | ELBOW, Exhaust | 2 | 865331A01 | (Standard Rise) | ||||
| 7 | 865332A02 | ELBOW, Exhaust | 2 | 865332A01 | (2 Inch Rise) | ||||
| 8 | 32-863095 | HOSE, Elbow to Manifold | 4 | ||||||
| 9 | 54-815504216 | CLAMP, Worm Gear (1.56 Diameter), Hose | 8 | ||||||
| 10 | 16-8204511 | STUD, (M8 x 55) | 3 | ||||||
| 11 | 16-424632 | STUD, (M8 x 37.1) | 9 | ||||||
| 12 | 12-12038 | WASHER | 8 | ||||||
| 13 | v | NUT, (M8) | 8 | ||||||
| 14 | 27-862356 | GASKET, Elbow to Manifold | 4 | ||||||
| 15 | 8M2000433 | TURBULATOR, Exhaust | 2 | 863122 | |||||
| 16 | 889575 | SENSOR ASSEMBLY, Temperature | 2 | ||||||
| 17 | 25-627021 | O-RING, (.301 x .070) | 1 | ||||||
| 18 | 10-4010716 | SCREW, (M8 x 16) | 1 | ||||||
| 19 | 16-424632 | STUD, (M8 x 37.1) | 1 | ||||||
| 20 | 866768T | RISER, (6 Inch) | 2 | 863124T | |||||
| 21 | 32-863102 | HOSE | 4 | ||||||
| 22 | 16-863121 | STUD, (M8 x 194) | 8 | ||||||
| NS | 19-8079923 | COVER, Hose Clamp End | 8 | ||||||
| 23 | 861776A2 | PLATE KIT | 1 | ||||||
| 24 | 10-98794 | 602-98-102-35 | 676-9-78129 | 700-28300 | 525-10-98794 | SCREW, (.375-16 x 1.00) | 4 | ||
| 25 | 13-41471 | LOCKWASHER, (.375) | 4 | ||||||
| 26 | 860222A1 | RESONATOR, Exhaust | 1 |
