496 Mag Base Model - Serial 0W060000 Thru 0W309999 - Power Steering

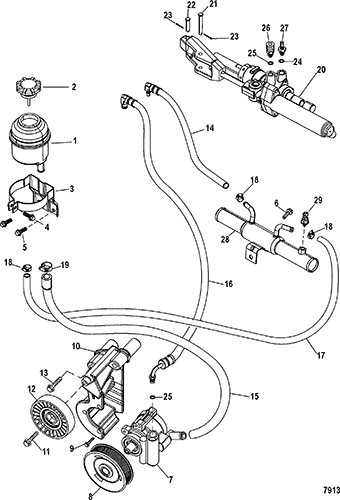

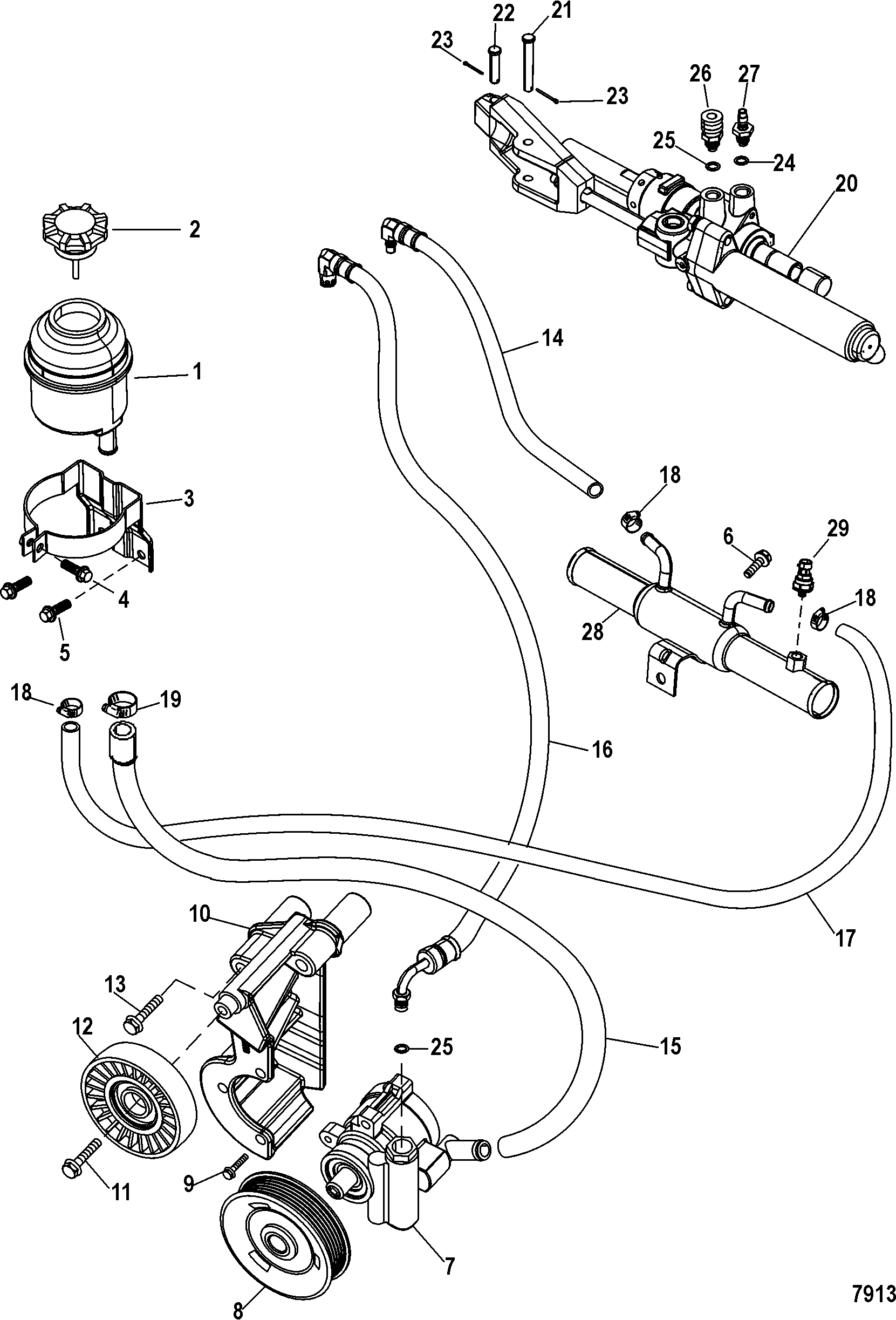

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Block, Camshaft And Pistons
- Block, Crankshaft, Oil Pump And Front Cover
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold, Elbow And Riser
- Flywheel Housing
- Fuel Module Components
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A02), Overhaul
- Intake Manifold
- Lifting Brackets And Wiring Harness
- Mercathode Kit
- Oil Pan And Drain System
- Pcm And Bracket
- Power Steering
- Remote Oil System
- Seawater Pump
- Shift Bracket (Digital Throttle And Shift)
- Shift Bracket, Mechanical Shift
- Smart Craft Sensor And Harnesses
- Starter And Alternator
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly (Complete)
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 865264A06 | RESERVOIR KIT | 1 | 865264A02 | |||||
| 1 | 865264T | RESERVOIR ASSEMBLY, Oil - Power-Assisted Steering | 1 | ||||||
| 2 | 19-865263 | CAP, Oil Reservoir - Brown | 1 | ||||||
| 3 | 865262A02 | BRACKET ASSEMBLY | 1 | 865262A01 | |||||
| 4 | 10-82130025 | SCREW, (M6 x 25) | 1 | ||||||
| 5 | 10-4000354 | SCREW, (M8 x 30) | 2 | ||||||
| 6 | 10-816585 | SCREW, (.375-18 x .875) | 1 | ||||||
| 7 | 806230T | PUMP, Power Steering | 1 | ||||||
| 8 | 862751 | PULLEY, Power Steering | 1 | ||||||
| 9 | 10-4010720 | SCREW, (M8 x 20) | 3 | ||||||
| 10 | 863856T | BRACKET, Power Steering Pump | 1 | ||||||
| 11 | 10-4010816 | SCREW, (M10 x 16) Hex Flange - Stainless Steel | 1 | ||||||
| 12 | 8M6500024 | PULLEY | 1 | 865598 | |||||
| 13 | 10-8M0012503 | SCREW, (M10 x 100) Hex Flange - Stainless Steel | 3 | 10-40108100 | |||||
| 14 | 32-865390015 | HOSE, Male Quick Connect (Cylinder to Cooler) | 1 | ||||||
| 15 | 32-864229 | HOSE (Pump to Reservoir) | 1 | ||||||
| 16 | 32-866687 | HOSE, Female Quick Connect (Pump to Cylinder) | 1 | 32-865387060 | |||||
| 17 | 32-865717 | HOSE (Reservoir to Cooler) | 1 | ||||||
| 18 | 54-815504105 | CLAMP, Worm Gear (11-18 mm), Hose | 3 | ||||||
| 19 | 54-815504210 | CLAMP, Worm Gear, Hose | 2 | ||||||
| 20 | 865383A02 | ACTUATOR ASSEMBLY, Steering | 1 | ||||||
| 21 | 17-15878 | PIN, Clevis, Clevis | 1 | (Long) | |||||
| 22 | 17-16419 | PIN, Clevis, Clevis | 1 | (Short) | |||||
| 23 | 18-46950 | COTTER PIN, Cotter | 2 | ||||||
| 24 | 25-806232 | O-RING, (.239 x .064) | 1 | ||||||
| 25 | 25-89879 | O-RING, (.301 x .064) | 2 | ||||||
| 26 | 22-865415 | FITTING | 1 | ||||||
| 27 | 22-865414001 | FITTING | 1 | 22-865414 | |||||
| 28 | 863820T1 | COOLER, Power Steering | 1 | ||||||
| 29 | 8M6000623 | SENSOR | 1 | 8818793 | |||||
| NS | 19-8079921 | COVER, Hose Clamp End | AR | No longer made, limited availability |
