496 Mag Base Model - Serial 0W060000 Thru 0W309999 - Pcm And Bracket

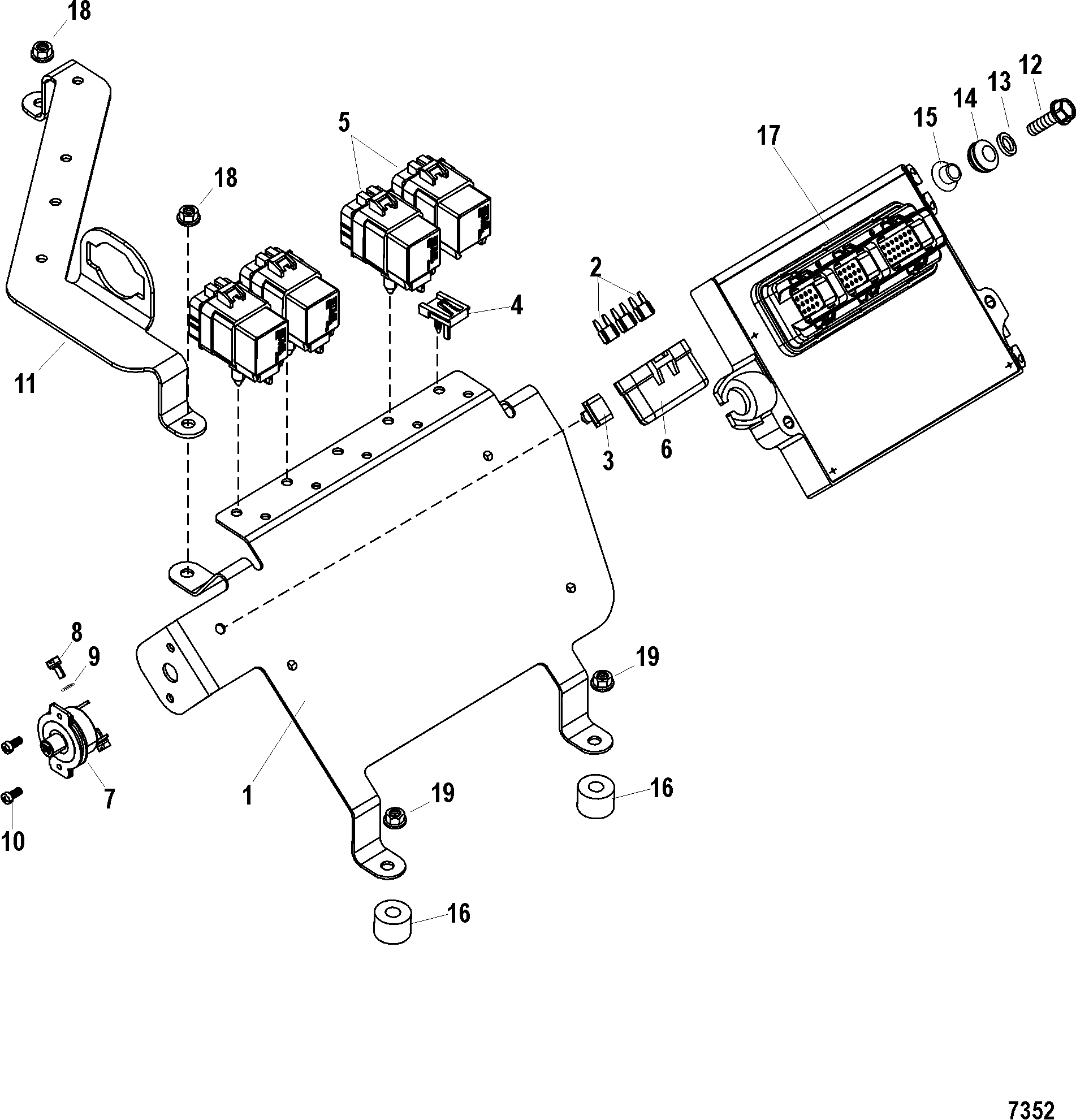

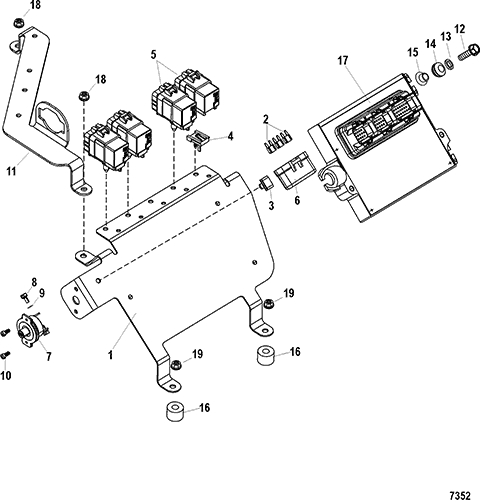

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Block, Camshaft And Pistons
- Block, Crankshaft, Oil Pump And Front Cover
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components
- Cylinder Head
- Drive Lube Reservoir Assembly
- Engine Cover
- Engine Mounts
- Exhaust Manifold, Elbow And Riser
- Flywheel Housing
- Fuel Module Components
- Gasket Set Components (27-883231A1), Engine
- Gasket Set Components (27-889924A02), Overhaul
- Intake Manifold
- Lifting Brackets And Wiring Harness
- Mercathode Kit
- Oil Pan And Drain System
- Pcm And Bracket
- Power Steering
- Remote Oil System
- Seawater Pump
- Shift Bracket (Digital Throttle And Shift)
- Shift Bracket, Mechanical Shift
- Smart Craft Sensor And Harnesses
- Starter And Alternator
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly (Complete)
- Water Drain System
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| NS | 84-865457T05 | HARNESS ASSEMBLY, Engine | 1 | 84-865457T04 | (Mechanical Throttle and Shift) | ||||
| NS | 84-865653T03 | HARNESS ASSEMBLY, Engine | 1 | 84-865653T02 | (Digital Throttle and Shift) | ||||
| 1 | 865638T | BRACKET | 1 | ||||||
| 2 | 88-832969T20 | FUSE, Mini - Yellow - 20 Ampere | 3 | 88-83296920 | |||||
| 3 | 86-865205 | CLIP, Fuse Block Mounting | 1 | 54-804351 | |||||
| 4 | 54-804352 | CLIP, Relay Mounting | 3 | ||||||
| 5 | 882751A04 | 676-9-15213 | RELAY ASSEMBLY (Mechanical Throttle and Shift) | 4 | |||||
| 5 | 882751A04 | 676-9-15213 | RELAY ASSEMBLY (Digital Throttle and Shift) | 5 | |||||
| 6 | 883562 | COVER, Fuse | 1 | ||||||
| 7 | 88-11178A01 | BREAKER, Circuit - 50 Ampere | 1 | 88-806950 | |||||
| 8 | 10-68513 | SCREW, (#10-32 x .375) Stainless Steel | 2 | ||||||
| 9 | 13-26996 | LOCKWASHER, (#10) Stainless Steel, Split Lock | 2 | ||||||
| 10 | 10-57583 | SCREW, (#8-32 x .375) | 2 | ||||||
| 11 | 865639T | BRACKET | 1 | ||||||
| 12 | 10-82130025 | SCREW, (M6 x 25) | 3 | ||||||
| 13 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel | 3 | ||||||
| 14 | 25-834985 | GROMMET | 3 | ||||||
| 15 | 23-856954 | BUSHING, Electrical Plate | 3 | ||||||
| 16 | 23-862995 | SPACER | 1 | ||||||
| 17 | 866090T05 | PCM, Propulsion Control Module, Base | 1 | 866090T01 | (Mechanical Throttle and Shift) | ||||
| 17 | 865851T02 | PCM, Propulsion Control Module, Base | 1 | 865851T01 | (Digital Throttle and Shift) | ||||
| 17 | 866091T05 | PCM, Propulsion Control Module, H.O. | 1 | 866091T01 | (Mechanical Throttle and Shift) | ||||
| 17 | 865856T02 | PCM, Propulsion Control Module, H.O. | 1 | 865856T01 | (Digital Throttle and Shift) | ||||
| 18 | 11-4002030 | NUT, (M8) | 2 | ||||||
| 19 | 11-863289 | NUT | 2 |
