185 (2 BBL.) GM 262 V-6 - 0A331455 THRU 0B527954 - Carburetor and Throttle Linkage (185)

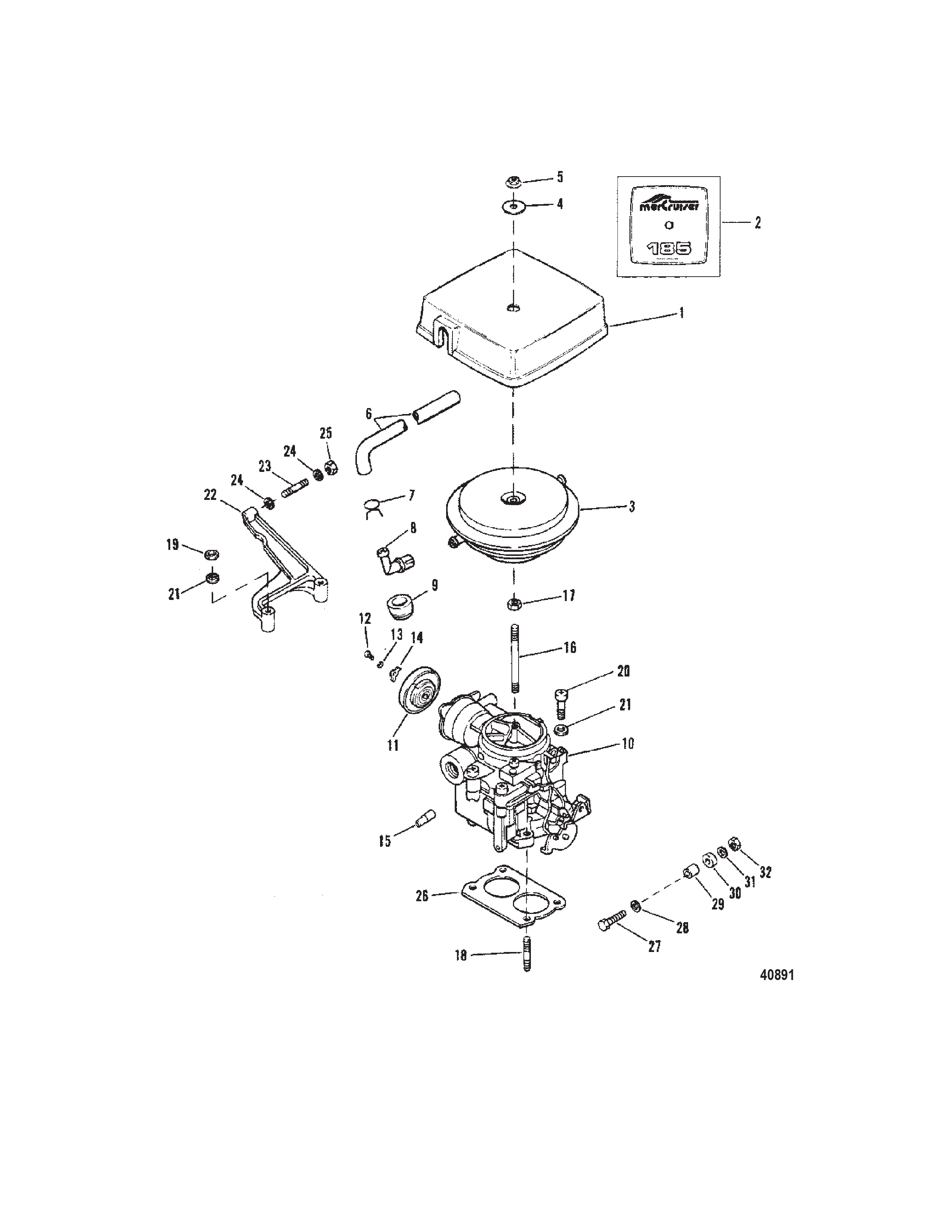

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (MANDO)
- Alternator (MOTOROLA)
- Carburetor (MerCarb) (185)
- Carburetor (Rochester) (205)
- Carburetor and Throttle Linkage (185)
- Carburetor and Throttle Linkage (205)
- Crankshaft and Pistons
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Engine Mounting
- Exhaust Manifold and Exhaust Elbow
- Exhaust System (3 In. Exhaust Elbow)
- Exhaust System (4 In. Exhaust Elbow)
- Flywheel Housing
- Fuel Pump and Fuel Filter
- Intake Manifold and Front Cover
- Oil Pan and Oil Pump
- Power Steering Components
- Service and Support Material
- Shift Bracket (NEW DESIGN)
- Shift Bracket (OLD DESIGN)
- Standard Cooling System
- Starter Motor
- Starter Motor and Alternator
- Wiring Harness and Electrical Components
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 43560A5 | COVER Plastic, Carburetor | 1 | ||
| 2 | 0037 | 41601 | DECAL Carburetor Cover | (185) | 1 | |
| 2 | 0037 | 137237 | DECAL Carburetor Cover | (185 Alpha One) | 1 | |
| 3 | 0000 | 86271A1 | FLAME ARRESTOR Carburetor | 1 | ||
| 4 | 0012 | OEM: 525-12-86400 | WASHER Sealing | 1 | ||
| 5 | 0011 | 20586 | NUT (.250-28) Silencer Adapter | 1 | ||
| 6 | 0032 | 9331512 | HOSE Vent, Carburetor (11- 1/4") | 2 | ||
| 7 | 0054 | 53101 | CLAMP Vent Hose | 4 | ||
| 8 | 0000 | 97850 | ELBOW 90 Degree Breather, Vent Hose | 1 | ||
| 8 | 0000 | 47957 | CONNECTOR Vent Hose (Straight) | 1 | ||
| 9 | 0025 | 52188 | GROMMET Rocker Cover | 2 | ||
| 10 | 3304 | 9565A1 | CARBURETOR ASSEMBLY (MerCarb) | 1 | [1] | |
| 11 | 0000 | 70125A1 | COVER Choke | 1 | ||
| 12 | 0010 | 33047 | SCREW Choke Cover | 3 | ||
| 13 | 0013 | OEM: 525-13-26995 | LOCKWASHER (#8) Stainless Steel Cover Screw | 1 | ||
| 14 | 0054 | 33036 | RETAINER Cover Screw | 3 | ||
| 15 | 0022 | 97282 | CONNECTOR Carburetor | 1 | ||
| 16 | 0016 | OEM: 525-16-97012 | STUD Flame Arrestor | 1 | ||
| 17 | 0011 | 28941 | NUT Jam, Flame Arrestor | 1 | ||
| 18 | 0016 | OEM: 525-16-46857 | STUD (5/16 x 1-7/8) Carburetor | Attach With Screw | 2 | |
| 18 | 0016 | OEM: 525-16-70236, GLM: 700-22482 | STUD (.312 x 1.500) Carburetor | Attach With Studs | 2 | |
| 18 | 0016 | OEM: 525-16-70237 | STUD (.312-18/.312-24 x 2.620) Carburetor | Attach With Studs | 2 | |
| 19 | 0011 | OEM: 525-11-29250 | NUT (.312-24) Carburetor Stud | Attach With Screw | 2 | |
| 19 | 0011 | 25594 | NUT (.9375-24) Carburetor Stud | Attach With Studs | 4 | |
| 20 | 0010 | OEM: 525-10-74822 | SCREW (.312-18 x 3.500) Carburetor | Attach With Screw | 2 | |
| 21 | 0012 | OEM: 525-12-20084, GLM: 700-21664 | WASHER (.328 x .562 x .062) Carburetor Stud | 4 | ||
| 22 | 0000 | 77456A2 | BRACKET Throttle Cable | 1 | ||
| 23 | 0016 | OEM: 525-16-38525 | STUD Throttle Cable | 1 | ||
| 24 | 0012 | OEM: 525-12-24664 | WASHER (M4 x 20) | 2 | ||
| 25 | 0011 | 20586 | NUT (.250-28) | 1 | ||
| 26 | 0027 | 70143 | GASKET Carburetor to Intake Manifold | 1 | [2] | |
| 27 | 0010 | 98509 | SCREW Throttle Cable to Carburetor | 1 | ||
| 28 | 0012 | OEM: 525-12-56681 | WASHER (.203 x .500 x .032) Throttle Cable Screw | 1 | ||
| 29 | 0023 | 57938 | BUSHING Throttle Cable Screw | 1 | ||
| 30 | 0023 | OEM: 525-23-34948 | SPACER Throttle Cable Screw | 1 | ||
| 31 | 0012 | 20128 | WASHER Throttle Cable Screw | 2 | ||
| 32 | 0011 | 20190 | NUT (#10-32) Throttle Cable Screw | 1 |
PART NOTES:
[1] - Alternate part numbers:
804618R02Reman
9565A 1QS
[2] - Component of 11977A88 Gasket Set, Engine Overhaul
