185 (2 BBL.) GM 262 V-6 - 0A331455 THRU 0B527954 - Starter Motor and Alternator

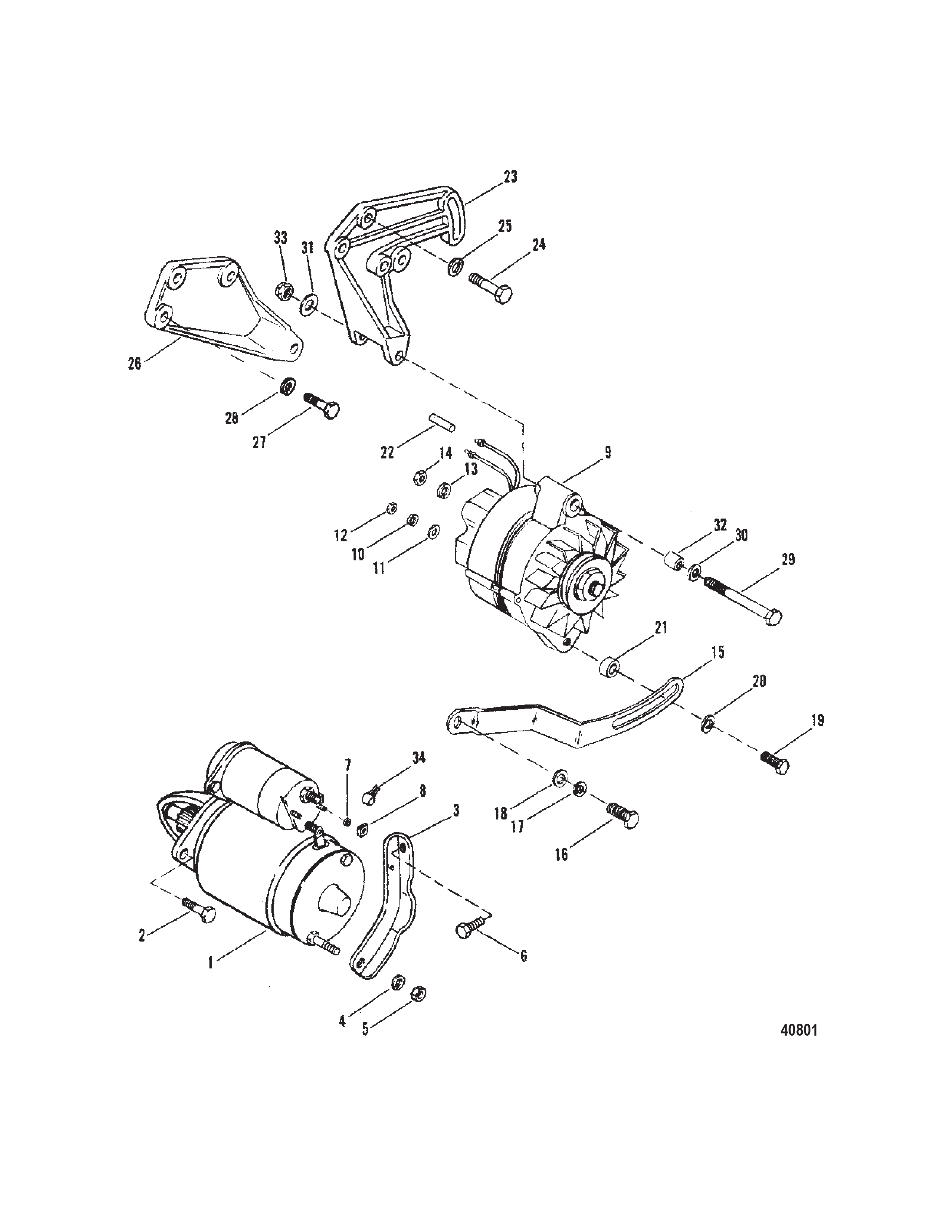

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (MANDO)
- Alternator (MOTOROLA)
- Carburetor (MerCarb) (185)
- Carburetor (Rochester) (205)
- Carburetor and Throttle Linkage (185)
- Carburetor and Throttle Linkage (205)
- Crankshaft and Pistons
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Engine Mounting
- Exhaust Manifold and Exhaust Elbow
- Exhaust System (3 In. Exhaust Elbow)
- Exhaust System (4 In. Exhaust Elbow)
- Flywheel Housing
- Fuel Pump and Fuel Filter
- Intake Manifold and Front Cover
- Oil Pan and Oil Pump
- Power Steering Components
- Service and Support Material
- Shift Bracket (NEW DESIGN)
- Shift Bracket (OLD DESIGN)
- Standard Cooling System
- Starter Motor
- Starter Motor and Alternator
- Wiring Harness and Electrical Components
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0050 | 12177A2 | STARTER MOTOR ASSEMBLY | 1 | ||
| 2 | 0010 | 94435 | BOLT (.375-16 x 4.600) Starter Motor to Cylinder Block | 2 | ||
| 3 | 0000 | 12404 | BRACE Starter Motor | 1 | ||
| 4 | 0012 | OEM: 525-12-29245, Sierra: 676-18-4275, GLM: 700-21490 | WASHER (.281 x .500 x .060) Stainless Steel | 2 | ||
| 5 | 0011 | 72008 | NUT (.250-20) | 1 | ||
| 6 | 0010 | 35765 | SCREW (5/8) Brace to Engine | 1 | ||
| 7 | 0013 | OEM: 525-13-26995 | LOCKWASHER (#8) Stainless Steel Starter Terminal | 2 | ||
| 8 | 0011 | OEM: 525-11-26419 | NUT (#8-32) Brass | 2 | ||
| 9 | 0000 | 92497A3 | ALTERNATOR ASSEMBLY (55 Ampere) | 1 | [1] | |
| 10 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel Alternator Terminal | 1 | ||
| 11 | 0012 | OEM: 525-12-96457 | WASHER Phenolic (.27 x .81 x .062) | 1 | ||
| 12 | 0011 | 30968 | NUT (10-24) Alternator Terminal | 1 | ||
| 13 | 0013 | OEM: 525-13-21272 | LOCKWASHER (.250) | 1 | ||
| 14 | 0011 | OEM: 525-11-20890 | NUT (.250-20) Alternator Terminal | 1 | ||
| 15 | 0000 | 85013 | BRACE Alternator Adjusting | 1 | ||
| 16 | 0010 | 27165 | SCREW (.375-16 x .75) Alternator Brace | 1 | ||
| 17 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) | 1 | ||
| 18 | 0012 | OEM: 525-12-20553, GLM: 700-21675 | WASHER (.406 x .734 x .063) | 1 | ||
| 19 | 0010 | OEM: 525-10-74824 | SCREW (.312-18 x 1.250) Alternator Brace | 1 | ||
| 20 | 0012 | OEM: 525-12-26168 | WASHER | 1 | ||
| 21 | 0023 | OEM: 525-23-52095 | SPACER Alternator Brace Screw | 1 | ||
| 22 | 0000 | OEM: 525-5790811 | SLEEVE (10.00 Inches Bulk) Alternator Ends | 2 | ||
| 23 | 0000 | 87115A1 | BRACKET Alternator | With Power Steering | 1 | |
| 24 | 0010 | OEM: 525-10-37612, GLM: 700-21755 | SCREW (.375-16 x 1.250) Alternator Bracket | With Power Steering | 2 | |
| 24 | 0010 | OEM: 525-10-34354, GLM: 700-22447 | SCREW (.375-16 x 1.50) Alternator Bracket | With Power Steering | 1 | |
| 25 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) | With Power Steering | 3 | |
| 26 | 0000 | 93175T | BRACKET Alternator | Without Power Steering | 1 | |
| 27 | 0010 | OEM: 525-10-37612, GLM: 700-21755 | SCREW (.375-16 x 1.250) Alternator Bracket | Without Power Steering | 3 | |
| 28 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) | Without Power Steering | 3 | |
| 29 | 0010 | OEM: 525-10-48308 | SCREW (.375-24 x 3.750) Alternator | 1 | ||
| 30 | 0012 | OEM: 525-12-20553, GLM: 700-21675 | WASHER (.406 x .734 x .063) | 1 | ||
| 31 | 0012 | OEM: 525-12-34714 | WASHER | 1 | ||
| 32 | 0023 | 33186 | BUSHING Alternator Bracket Screw | 1 | ||
| 33 | 0011 | OEM: 525-11-23161 | NUT (.375-24) | 1 | ||
| 34 | 0085 | 79695 | BOOT Insulator - Black Starter Terminal | 1 |
PART NOTES:
[1] - Alternate part numbers:
817119R01Reman
92497A 3QS
