185 (2 BBL.) GM 262 V-6 - 0A331455 THRU 0B527954 - Flywheel Housing

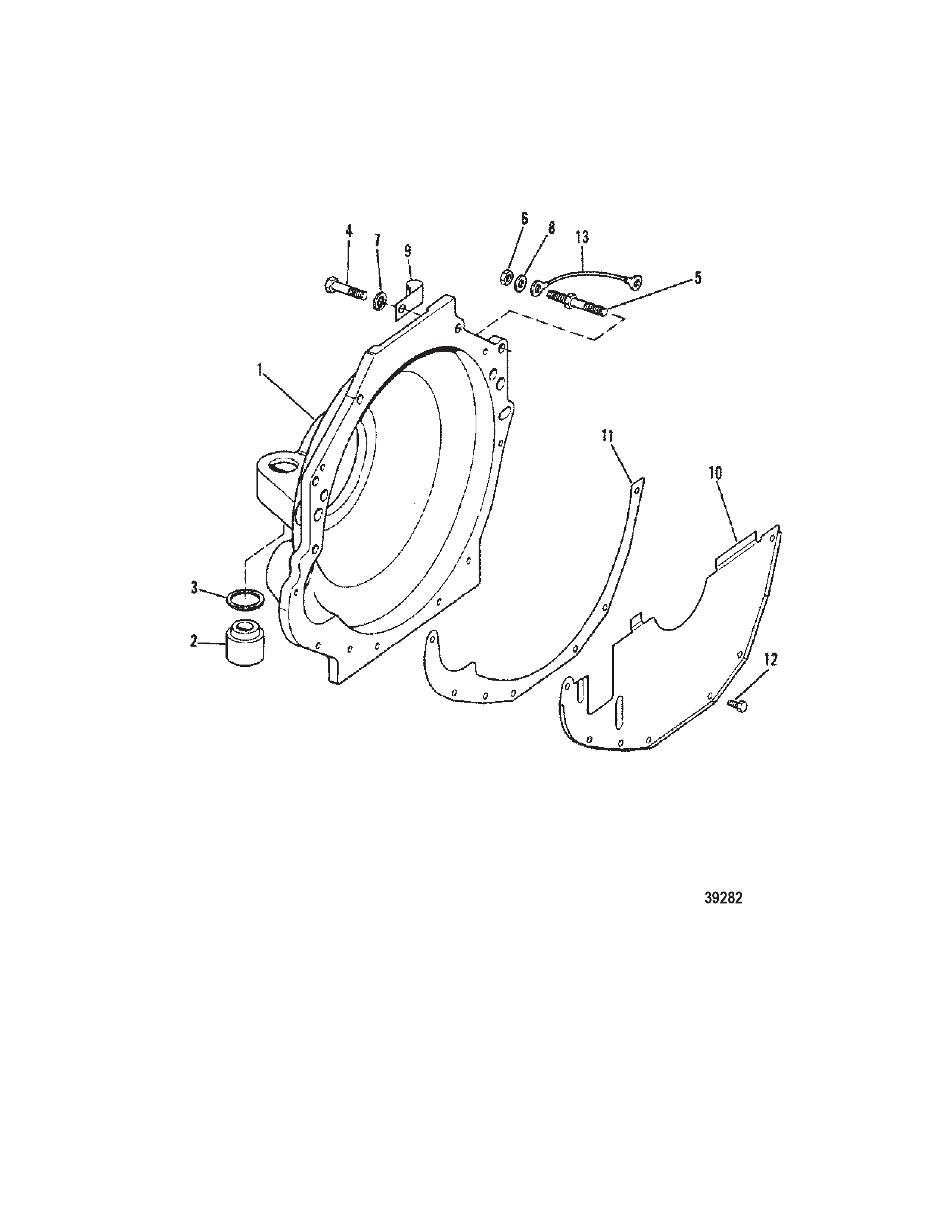

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (MANDO)
- Alternator (MOTOROLA)
- Carburetor (MerCarb) (185)
- Carburetor (Rochester) (205)
- Carburetor and Throttle Linkage (185)
- Carburetor and Throttle Linkage (205)
- Crankshaft and Pistons
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Engine Mounting
- Exhaust Manifold and Exhaust Elbow
- Exhaust System (3 In. Exhaust Elbow)
- Exhaust System (4 In. Exhaust Elbow)
- Flywheel Housing
- Fuel Pump and Fuel Filter
- Intake Manifold and Front Cover
- Oil Pan and Oil Pump
- Power Steering Components
- Service and Support Material
- Shift Bracket (NEW DESIGN)
- Shift Bracket (OLD DESIGN)
- Standard Cooling System
- Starter Motor
- Starter Motor and Alternator
- Wiring Harness and Electrical Components
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 12675A5 | HOUSING ASSEMBLY Flywheel | 1 | ||
| 2 | 0000 | 99297A2 | MOUNT Rubber FLYWHEEL HOUSING | 2 | ||
| 3 | 0023 | OEM: 525-23-99322, GLM: 700-21050 | SPACER RUBBER MOUNT - FLYWHEEL HOUSING | 2 | ||
| 4 | 0010 | OEM: 525-10-37612, GLM: 700-21755 | SCREW (.375-16 x 1.250) | 4 | ||
| 4 | 0010 | 35870 | SCREW (2") | 1 | ||
| 5 | 0016 | OEM: 525-16-64066 | STUD (.375-16 x 2.750) Special | 1 | ||
| 6 | 0011 | OEM: 525-11-32219 | NUT (.375-16) FLYWHEEL HOUSING ATTACHING STUD | 1 | ||
| 7 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) | 7 | ||
| 8 | 0012 | OEM: 525-12-20572 | WASHER (.390 x .750 x .093) | 1 | ||
| 9 | 0054 | OEM: 525-54-78945 | J CLAMP Harness Support- FLYWHEEL HOUSING STUD | 1 | ||
| 9 | 0054 | OEM: 525-54-92850 | CLAMP | 2 | ||
| 10 | 0000 | 13930A3 | COVER | 1 | ||
| 10 | 0000 | 812600A2 | COVER ASSEMBLY | (USE WITH FLUID MOUNTS) | 1 | |
| 11 | 0027 | 96274 | GASKET | 1 | [1] | |
| 12 | 0010 | OEM: 525-10-32773 | SCREW (.250-20 x .875) COVER | 7 | ||
| 13 | 0084 | 62826A6 | CABLE ASSEMBLY Ground (13.00 Inches) Black FLYWHEEL HOUSING STUD | 1 | ||
| - | 0027 | OEM: 525-27-11977A92, Sierra: 676-18-4388, GLM: 700-39650 | GASKET SET | 1 |
PART NOTES:
[1] - COMPONENT OF ENGINE/POWERHEAD GASKET SET 11977A92
