205 (4 BBL.) GM 262 V-6 - 0A331455 THRU 0B527954] - Engine Mounting

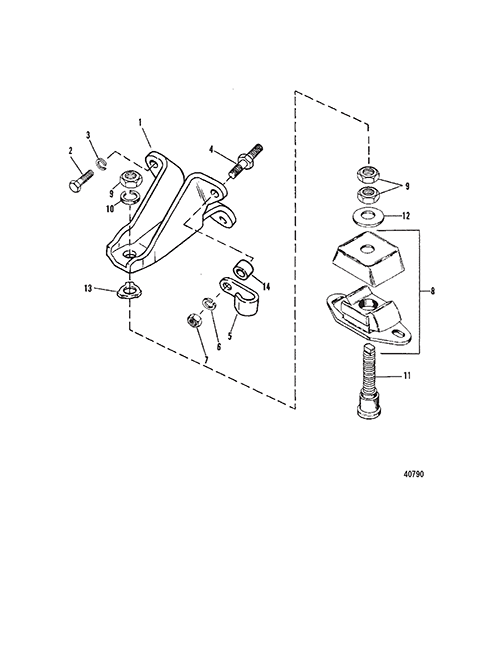

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (MANDO)
- Alternator (MOTOROLA)
- Carburetor (MerCarb) (185)
- Carburetor (Rochester) (205)
- Carburetor and Throttle Linkage (185)
- Carburetor and Throttle Linkage (205)
- Crankshaft and Pistons
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Engine Mounting
- Exhaust Manifold and Exhaust Elbow
- Exhaust System (3 In. Exhaust Elbow)
- Exhaust System (4 In. Exhaust Elbow)
- Flywheel Housing
- Fuel Pump and Fuel Filter
- Intake Manifold and Front Cover
- Oil Pan and Oil Pump
- Power Steering Components
- Service and Support Material
- Shift Bracket (NEW DESIGN)
- Shift Bracket (OLD DESIGN)
- Standard Cooling System
- Starter Motor
- Starter Motor and Alternator
- Wiring Harness and Electrical Components
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 44364A1 | BRACKET ASSEMBLY Mounting, Engine (FRONT) | 2 | ||
| 2 | 0010 | OEM: 525-10-34353 | SCREW (.375-16 x 1.00) Mounting Bracket to Engine | 5 | ||
| 3 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) Mounting Bracket Screw | 2 | ||
| 3 | 0012 | OEM: 525-12-46132 | WASHER Mounting Bracket Screw | 1 | ||
| 4 | 0016 | OEM: 525-16-64066 | STUD (.375-16 x 2.750) Special Mounting Bracket to Engine | Starboard | 1 | |
| 5 | 0054 | OEM: 525-54-92850 | CLAMP Wiring Harness | Starboard | 1 | |
| 6 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) | Starboard | 2 | |
| 7 | 0011 | OEM: 525-11-32219 | NUT (.375-16) | Starboard | 1 | |
| 8 | 0000 | 98323A6 | BASE ASSEMBLY Engine Mount | 2 | ||
| 9 | 0011 | OEM: 525-11-20739 | NUT (.750-16) Jam, Engine Mount Base | 6 | ||
| 10 | 0013 | OEM: 525-13-68102 | LOCKWASHER (.750) Mounting Bracket | 2 | ||
| 11 | 0016 | 41012 | STUD Engine Mounting | 2 | ||
| 12 | 0012 | 41150 | WASHER Support | 2 | ||
| 13 | 0014 | OEM: 525-14-12657 | TAB WASHER | 2 | ||
| 14 | 0023 | OEM: 525-23-57369 | SPACER Mounting Stud | 1 |
