205 (4 BBL.) GM 262 V-6 - 0A331455 THRU 0B527954] - Exhaust System (3 In. Exhaust Elbow)

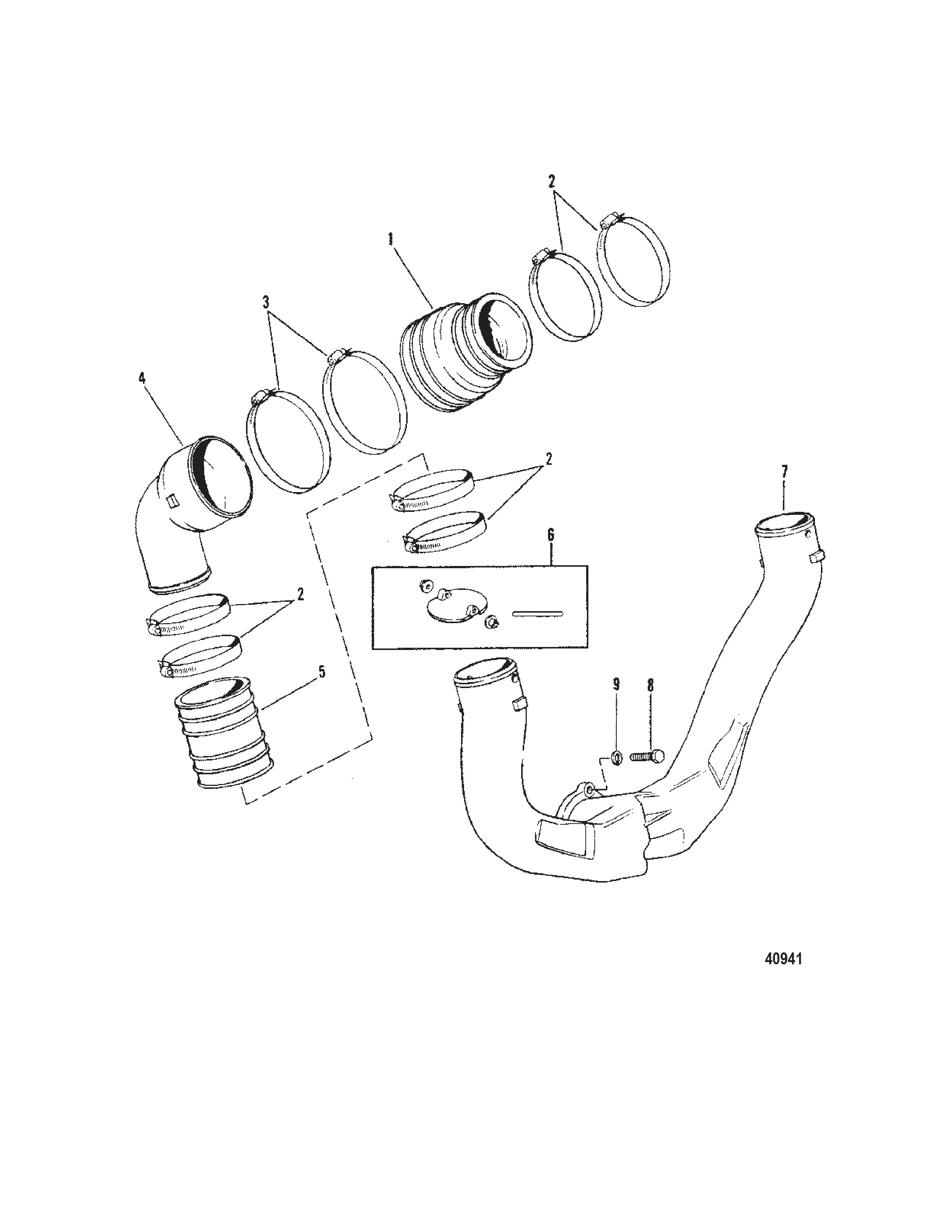

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 530-70981A3, Sierra: 676-18-2762, GLM: 700-89070 BELLOWS ASSEMBLY   2
2 0054 33683 CLAMP (SMALL)   12
3 0054 31765 CLAMP (LARGE)   4
4 0000 99758A1 ELBOW ASSEMBLY Exhaust   2
5 0032 90949 TUBE Exhaust   2
6 0000 99370A2 SHUTTER ASSEMBLY Water   2
7 0000 99877A2 PIPE ASSEMBLY Exhaust   1
8 0010 OEM: 525-10-58640 SCREW (.375-16 x 1.25) Exhaust Pipe to Stern Drive   4
9 0013 OEM: 525-13-41471 LOCKWASHER (.375)   4
