205 (4 BBL.) GM 262 V-6 - 0A331455 THRU 0B527954] - Wiring Harness and Electrical Components

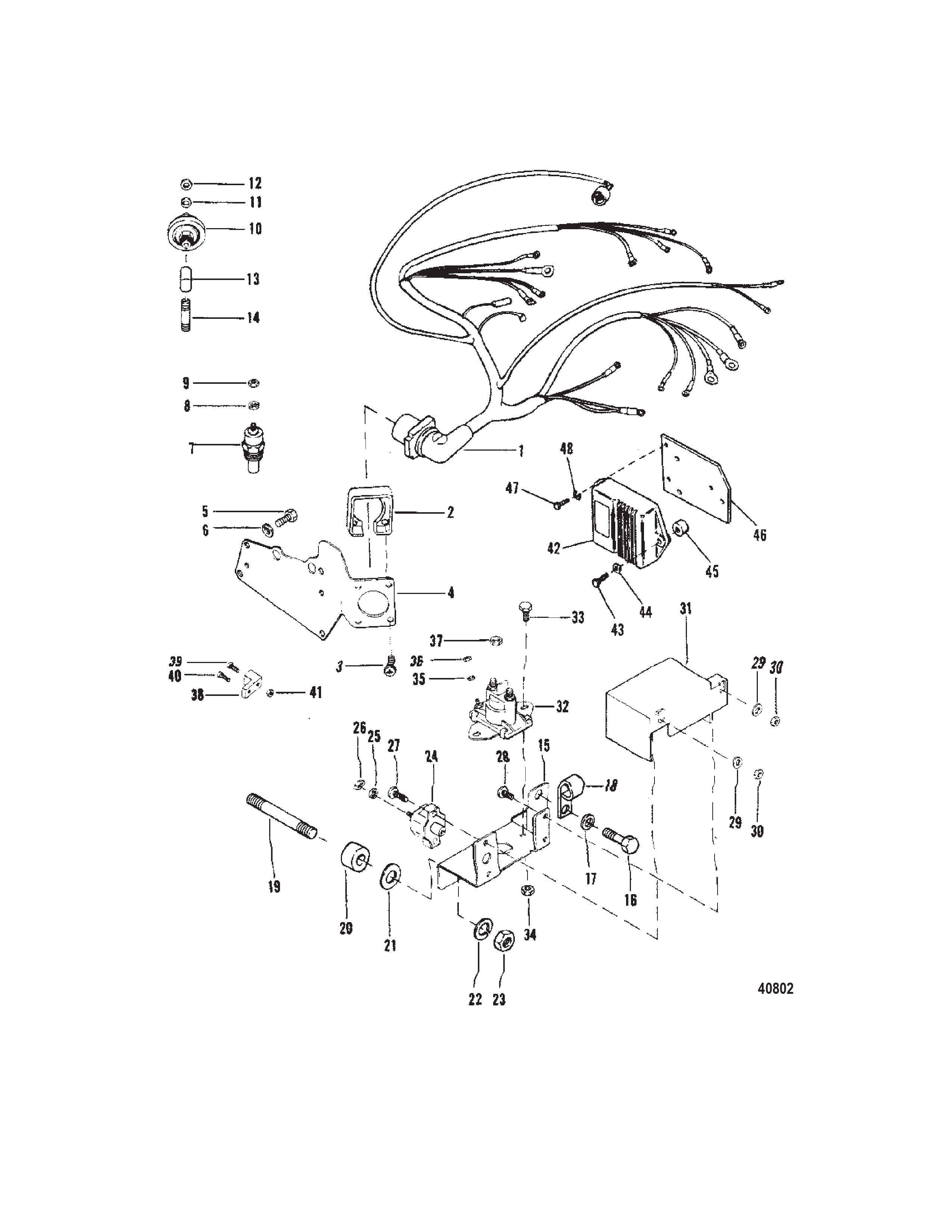

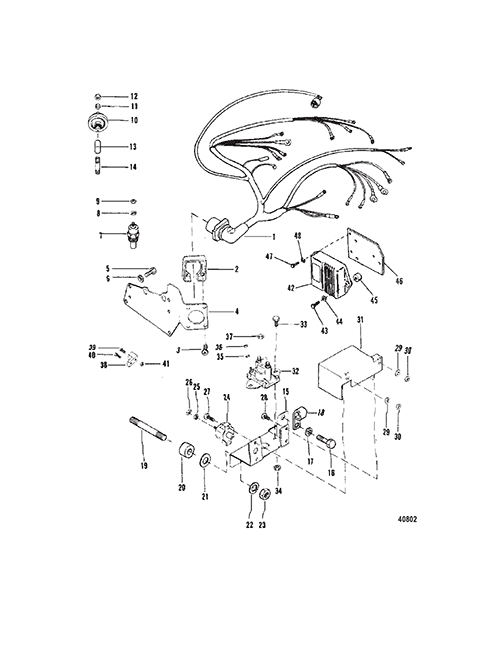

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (MANDO)
- Alternator (MOTOROLA)
- Carburetor (MerCarb) (185)
- Carburetor (Rochester) (205)
- Carburetor and Throttle Linkage (185)
- Carburetor and Throttle Linkage (205)
- Crankshaft and Pistons
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Engine Mounting
- Exhaust Manifold and Exhaust Elbow
- Exhaust System (3 In. Exhaust Elbow)
- Exhaust System (4 In. Exhaust Elbow)
- Flywheel Housing
- Fuel Pump and Fuel Filter
- Intake Manifold and Front Cover
- Oil Pan and Oil Pump
- Power Steering Components
- Service and Support Material
- Shift Bracket (NEW DESIGN)
- Shift Bracket (OLD DESIGN)
- Standard Cooling System
- Starter Motor
- Starter Motor and Alternator
- Wiring Harness and Electrical Components
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0084 | 99510A5 | HARNESS ASSEMBLY | 1 | ||
| 2 | 0000 | OEM: 525-26079A2 | PLATE KIT Wire Harness Mount | 1 | ||
| 3 | 0010 | 34696 | SCREW (#8-32 x .750) Wiring Harness Plate | 4 | ||
| 4 | 0000 | 98493A2 | BRACKET Mounting | 1 | ||
| 5 | 0010 | OEM: 525-10-49668 | SCREW (.250-20 x .750) Mounting Bracket | 3 | ||
| 6 | 0013 | OEM: 525-13-26992 | LOCKWASHER (.250) Stainless Steel | 3 | ||
| 7 | 0000 | OEM: 525-97258A1, Sierra: 676-18-5898 | SENDER ASSEMBLY Water Temperature | 1 | ||
| 7 | 0000 | 49734A1 | SENDER ASSEMBLY Water Temperature (DUAL) | OPT. | ||
| 8 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 1 | ||
| 9 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | 1 | ||
| 10 | 0000 | 90806 | SENDER Oil Pressure | 1 | ||
| 10 | 0000 | 37293 | SENDER ASSEMBLY Oil Pressure (DUAL) | OPT. | ||
| 11 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 1 | ||
| 12 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | 1 | ||
| 13 | 0022 | 46932 | ELBOW Oil Pressure Sender | 1 | ||
| 14 | 0022 | 42554 | NIPPLE Oil Pressure Sender | 1 | ||
| 15 | 0000 | 41170A2 | BRACKET Mounting | 1 | ||
| 16 | 0010 | OEM: 525-10-76926 | SCREW (.375-16 x .875) Mounting Bracket | 1 | ||
| 17 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) | 1 | ||
| 18 | 0054 | OEM: 525-54-92850 | CLAMP Bracket Screw | 1 | ||
| 19 | 0016 | OEM: 525-16-56826, GLM: 700-22484 | STUD (1.5 In.) Mounting Bracket | 1 | ||
| 20 | 0023 | OEM: 525-23-57369 | SPACER Mounting Bracket Stud | 1 | ||
| 21 | 0012 | OEM: 525-12-20572 | WASHER (.390 x .750 x .093) Mounting Bracket Stud | 1 | ||
| 22 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) | 1 | ||
| 23 | 0011 | 24883 | NUT | 1 | ||
| 24 | 0088 | 11178 | BREAKER Circuit - 50 Ampere | AR | ||
| 25 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel Circuit Breaker Terminal | 2 | ||
| 26 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | 2 | ||
| 27 | 0010 | 45862 | SCREW (#10-32 x .875) Circuit Breaker | 2 | ||
| 28 | 0010 | 45218 | SCREW (#10-32 x .380) Insulator | 1 | ||
| 29 | 0012 | OEM: 525-12-56681 | WASHER (.203 x .500 x .032) Circuit Breaker Screw | 2 | ||
| 30 | 0011 | OEM: 525-11-46438 | NUT (#10-32) Insulator Screw | 3 | ||
| 31 | 0085 | 96819 | INSULATOR Circuit Breaker | 1 | ||
| 32 | 0089 | 96054 | SOLENOID ASSEMBLY Starter | 1 | ||
| 33 | 0010 | 47910 | SCREW (1/4-28 x 5/8) Starter Solenoid | 2 | ||
| 34 | 0011 | 20088 | NUT Starter Solenoid Screw | 2 | ||
| 35 | 0013 | OEM: 525-13-26992 | LOCKWASHER (.250) Stainless Steel Starter Solenoid Terminal | 2 | ||
| 36 | 0011 | OEM: 525-11-26419 | NUT (#8-32) Brass | 2 | ||
| 37 | 0011 | OEM: 525-11-94330 | NUT (.250-20) Brass | 2 | ||
| 38 | 0086 | OEM: 525-86-45915 | TERMINAL BLOCK | 1 | ||
| 39 | 0010 | OEM: 525-10-62568 | SCREW (#10-16 x .375) Terminal Block Leads | 1 | ||
| 40 | 0010 | 22028 | SCREW (#10-32 x .50) Terminal Block | 1 | ||
| 41 | 0011 | OEM: 525-11-46438 | NUT (#10-32) Terminal Block Screw | 1 | ||
| 42 | 390 | 9355A2 | IGNITION AMPLIFIER ASSEMBLY | 1 | ||
| 43 | 0010 | OEM: 525-10-76596 | SCREW (.250-20 x 1.250) Amplifier | 3 | ||
| 44 | 0013 | OEM: 525-13-26992 | LOCKWASHER (.250) Stainless Steel Amplifier Screw | 3 | ||
| 45 | 0023 | 92152 | SPACER (.27 x .75 x .38) Amplifier Screw | 3 | ||
| 46 | 0000 | 12500 | PLATE Ignition Amplifier | Use 7/8 Inch Screw | 1 | |
| 46 | 0000 | 125001 | PLATE Ignition Amplifier | Use 3/4 Inch Screw | 1 | |
| 47 | 0010 | OEM: 525-10-28668, Sierra: 676-18-3229, GLM: 700-22440 | SCREW (.250-20 x .875) Stainless Steel Amplifier Plate | Use 7/8 Inch Screw | 3 | |
| 47 | 0010 | OEM: 525-10-49668 | SCREW (.250-20 x .750) Amplifier Plate | Use 3/4 Inch Screw | 3 | |
| 48 | 0013 | OEM: 525-13-26992 | LOCKWASHER (.250) Stainless Steel Amplifier Plate Screw | 3 |
