4.3L (2 BBL.) GM 262 V-6 - 0B773243 THRU 0D714106 - Alternator (Mando)

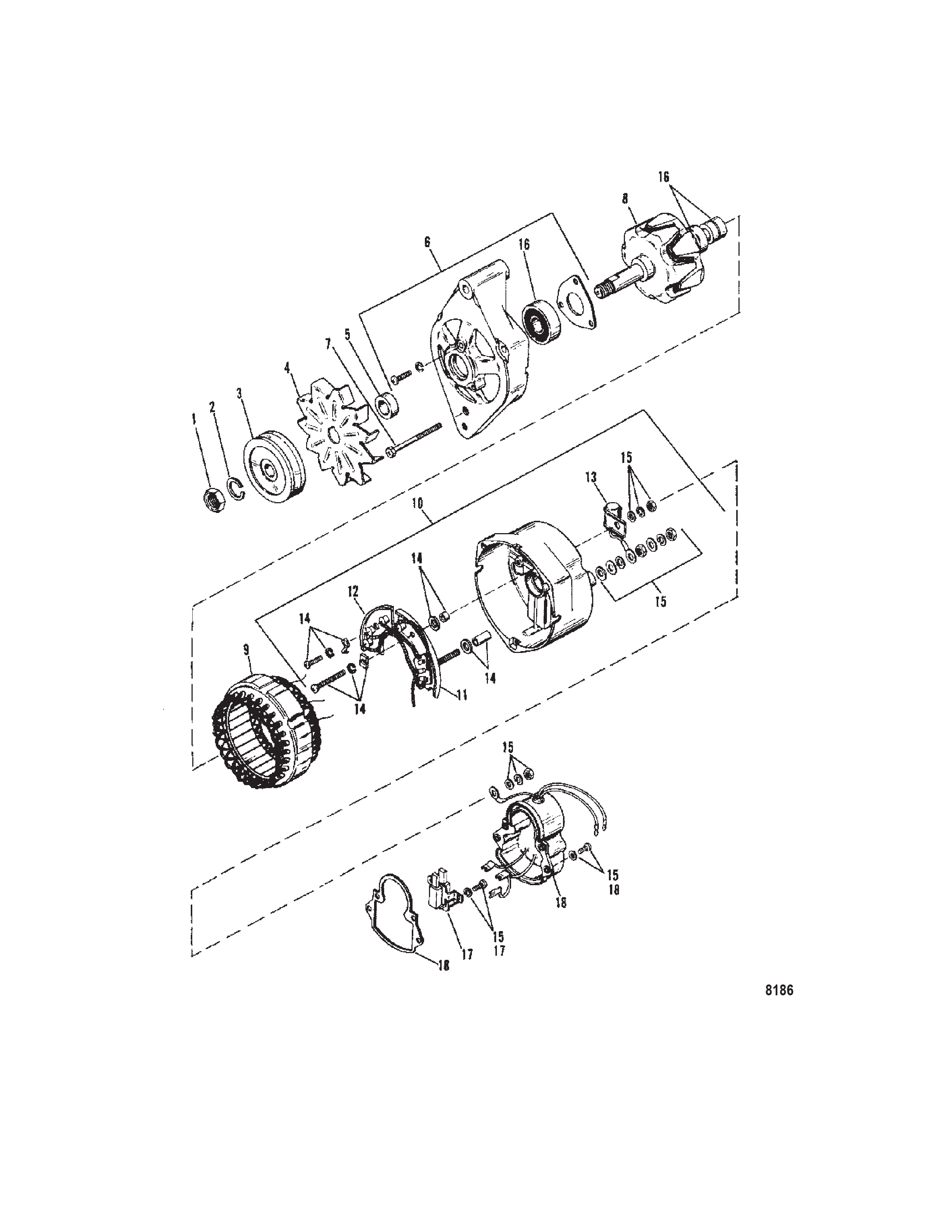

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- ALTERNATOR (MOTOROLA #8EM2003KA)
- ALTERNATOR (MOTOROLA #8MR2039K)
- AUDIO WARNING SYSTEM
- CARBURETOR (MERCARB)(175 - 4.3L)
- CARBURETOR (ROCHESTER)(205 - 4.3L-LX)
- CARBURETOR AND THROTTLE LINKAGE (175 - 4.3L)
- CARBURETOR AND THROTTLE LINKAGE (205 - 4.3L-LX)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING NEW DESIGN - FLUID MOUNT
- ENGINE MOUNTING OLD DESIGN
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST SYSTEM USE WITH 4 INCH EXHAUST ELBOW
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER NEW DESIGN
- INTAKE MANIFOLD AND FRONT COVER OLD DESIGN
- MISCELLANEOUS PARTS-ACCESSORIES
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS CAST MOUNTING BRACKET
- POWER STEERING COMPONENTS STAMPED MOUNTING BRACKET
- SHIFT BRACKET NEW DESIGN - WITH SPRING GUIDE
- SHIFT BRACKET OLD DESIGN
- STANDARD COOLING SYSTEM NEW DESIGN
- STANDARD COOLING SYSTEM OLD DESIGN
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- STARTER MOTOR DELCO REMY #9000762
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0011 | 42768 | NUT | 1 | ||
| 2 | 0013 | 42769 | LOCKWASHER | 1 | ||
| 3 | 0000 | 42770 | PULLEY | 1 | ||
| 4 | 0000 | 42771 | FAN | 1 | ||
| 5 | 0023 | 42772 | SPACER | 1 | ||
| 6 | 0000 | 42774 | BRACKET FRONT | 1 | ||
| 7 | 0010 | 42773 | THRU BOLT | 3 | ||
| 8 | 0000 | 42775 | ROTOR (INCLUDES BEARINGS) | 1 | ||
| 9 | 0000 | 42776 | STATOR | 1 | ||
| 10 | 0000 | 42777 | BRACKET REAR | 1 | ||
| 11 | 0000 | 42778 | HEAT SINK (+) | 1 | ||
| 12 | 0000 | 42779 | HEAT SINK (-) | 1 | ||
| 13 | 0000 | 42780 | CONDENSER ASSEMBLY | 1 | ||
| 14 | 0000 | 42783 | HARDWARE KIT INTERNAL | 1 | ||
| 15 | 0000 | 42782 | HARDWARE KIT EXTERNAL | 1 | ||
| 16 | 0000 | 42781 | BEARING KIT | 1 | ||
| 17 | 0000 | OEM: 525-42784 | HOLDER KIT (INCLUDES SPRING & BRUSHES) | 1 | ||
| 18 | 0000 | OEM: 525-42785, Sierra: 676-18-5740, GLM: 700-72240 | REGULATOR KIT | 1 |
