4.3L (2 BBL.) GM 262 V-6 - 0B773243 THRU 0D714106 - CARBURETOR (MERCARB)(175 - 4.3L)

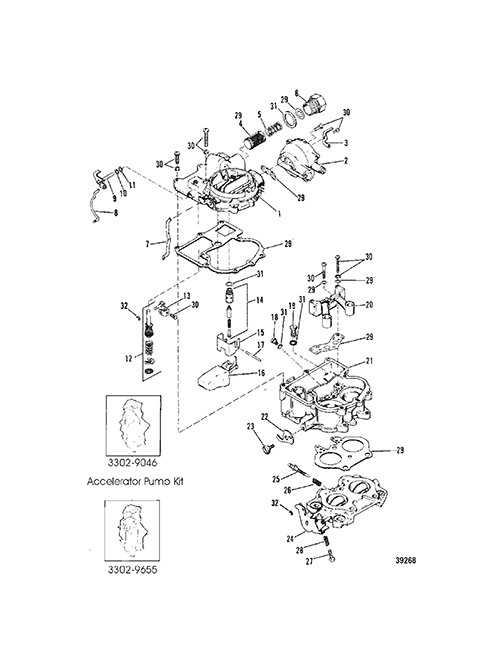

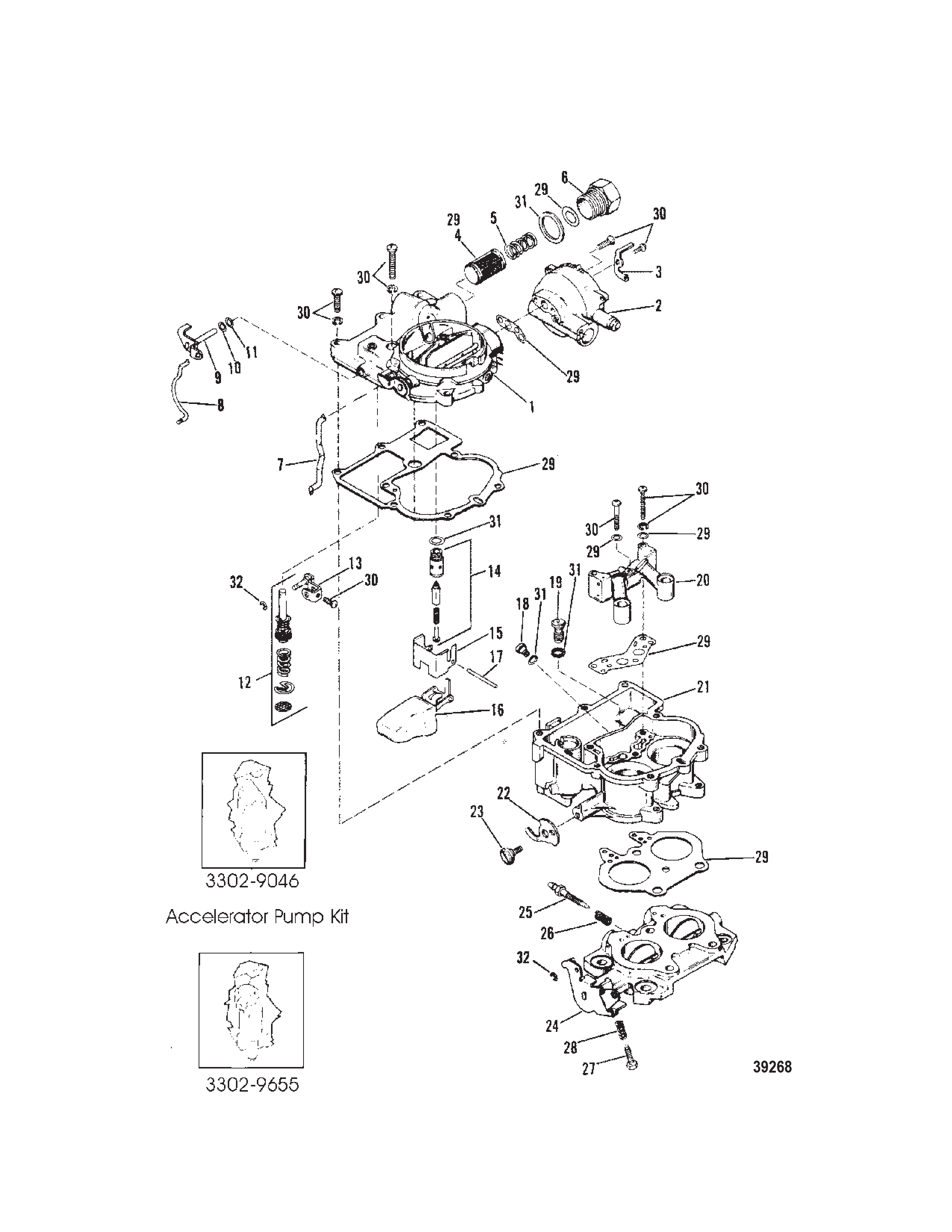

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- ALTERNATOR (MOTOROLA #8EM2003KA)
- ALTERNATOR (MOTOROLA #8MR2039K)
- AUDIO WARNING SYSTEM
- CARBURETOR (MERCARB)(175 - 4.3L)
- CARBURETOR (ROCHESTER)(205 - 4.3L-LX)
- CARBURETOR AND THROTTLE LINKAGE (175 - 4.3L)
- CARBURETOR AND THROTTLE LINKAGE (205 - 4.3L-LX)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING NEW DESIGN - FLUID MOUNT
- ENGINE MOUNTING OLD DESIGN
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST SYSTEM USE WITH 4 INCH EXHAUST ELBOW
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER NEW DESIGN
- INTAKE MANIFOLD AND FRONT COVER OLD DESIGN
- MISCELLANEOUS PARTS-ACCESSORIES
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS CAST MOUNTING BRACKET
- POWER STEERING COMPONENTS STAMPED MOUNTING BRACKET
- SHIFT BRACKET NEW DESIGN - WITH SPRING GUIDE
- SHIFT BRACKET OLD DESIGN
- STANDARD COOLING SYSTEM NEW DESIGN
- STANDARD COOLING SYSTEM OLD DESIGN
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- STARTER MOTOR DELCO REMY #9000762
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| - | 3304 | 9565A1 | CARBURETOR ASSEMBLY | 1 | [1] | |
| 1 | N.S.S. | Not Sold Separate Air Horn Assembly | 1 | |||
| 2 | N.S.S. | Not Sold Separate Choke Housing Assembly | 1 | |||
| 3 | 3302 | 9037 | ARM Choke | 1 | ||
| 4 | 3302 | 9033 | STRAINER | 1 | ||
| 5 | 3302 | OEM: 525-3302-9032 | SPRING FUEL STRAINER | 1 | ||
| 6 | 3302 | 9034 | CONNECTOR INLET | 1 | ||
| 7 | 3302 | 9042 | ROD Choke | 1 | ||
| 8 | 3302 | 9041 | ROD Pump | 1 | ||
| 9 | 3302 | 9035 | LEVER ACCELERATOR PUMP | 1 | ||
| 10 | 3302 | 9039 | WASHER PUMP LEVER | 1 | ||
| 11 | 3302 | 9040 | WASHER PUMP LEVER | 1 | ||
| 12 | 3302 | OEM: 525-3302-9046 | PUMP KIT | SEE NOTE | 1 | [2] |
| 12 | 3302 | 9655 | PUMP KIT Accelerator | SEE NOTE | 1 | [3] |
| 13 | 3302 | 9036 | ARM ACCELERATOR PUMP | 1 | ||
| 14 | 3302 | OEM: 525-3302-9407, GLM: 700-40750 | SEAT KIT Inlet | 1 | ||
| 15 | 3302 | 9038 | PLATE Baffle | 1 | ||
| 16 | 3302 | OEM: 525-3302-9031, Sierra: 676-18-7202 | FLOAT | 1 | ||
| 17 | 3302 | 9030 | PIN FLOAT | 1 | ||
| 18 | 3302 | OEM: 525-3302-9058 | JET Main | 1 | ||
| 19 | 3302 | OEM: 525-3302-9435 | JET Power | 1 | ||
| 20 | 3302 | 9436 | VENTURI | 1 | ||
| 21 | N.S.S. | Not Sold Separate BODY, CARBURETOR | 1 | |||
| 22 | 3302 | OEM: 525-3302-9048 | CAM FAST IDLE | 1 | ||
| 23 | 3302 | OEM: 525-3302-9049 | SHAFT FAST IDLE CAM | 1 | ||
| 24 | N.S.S. | Not Sold Separate Flange Assembly | 1 | |||
| 25 | 3302 | OEM: 525-3302-9052 | SCREW IDLE ADJUSTING | 1 | ||
| 26 | 3302 | OEM: 525-3302-9053 | SPRING IDLE ADJUSTING SCREW | 1 | ||
| 27 | 3302 | OEM: 525-3302-9060 | SCREW THROTTLE ADJUSTING | 1 | ||
| 28 | 3302 | OEM: 525-3302-9054 | SPRING THROTTLE ADJUSTING SCREW | 1 | ||
| 29 | 3302 | 9061 | GASKET SET | 1 | ||
| 30 | 3302 | 9045 | SCREW KIT | 1 | ||
| 31 | 3302 | OEM: 525-3302-9044 | PACKING SET | 1 | ||
| 32 | 3302 | 9658 | E-RING | 2 | ||
| - | 3302 | 9437 | OVERHAUL KIT For Pump 9046 | 1 | ||
| - | 3302 | OEM: 530-804844002, Sierra: 676-18-7098-1, GLM: 700-76086 | CARBURETOR REPAIR KIT For Pump 9655 | 1 | [3] |
PART NOTES:
[1] - Alternate part numbers:
804618R02Reman
9565A 1QS
[2] - Alternate part numbers:
804845Kit
9046Service Part
[3] - Alternate part numbers:
804844002Kit
9655Service Part
