4.3L (2 BBL.) GM 262 V-6 - 0B773243 THRU 0D714106 - OIL PAN AND OIL PUMP

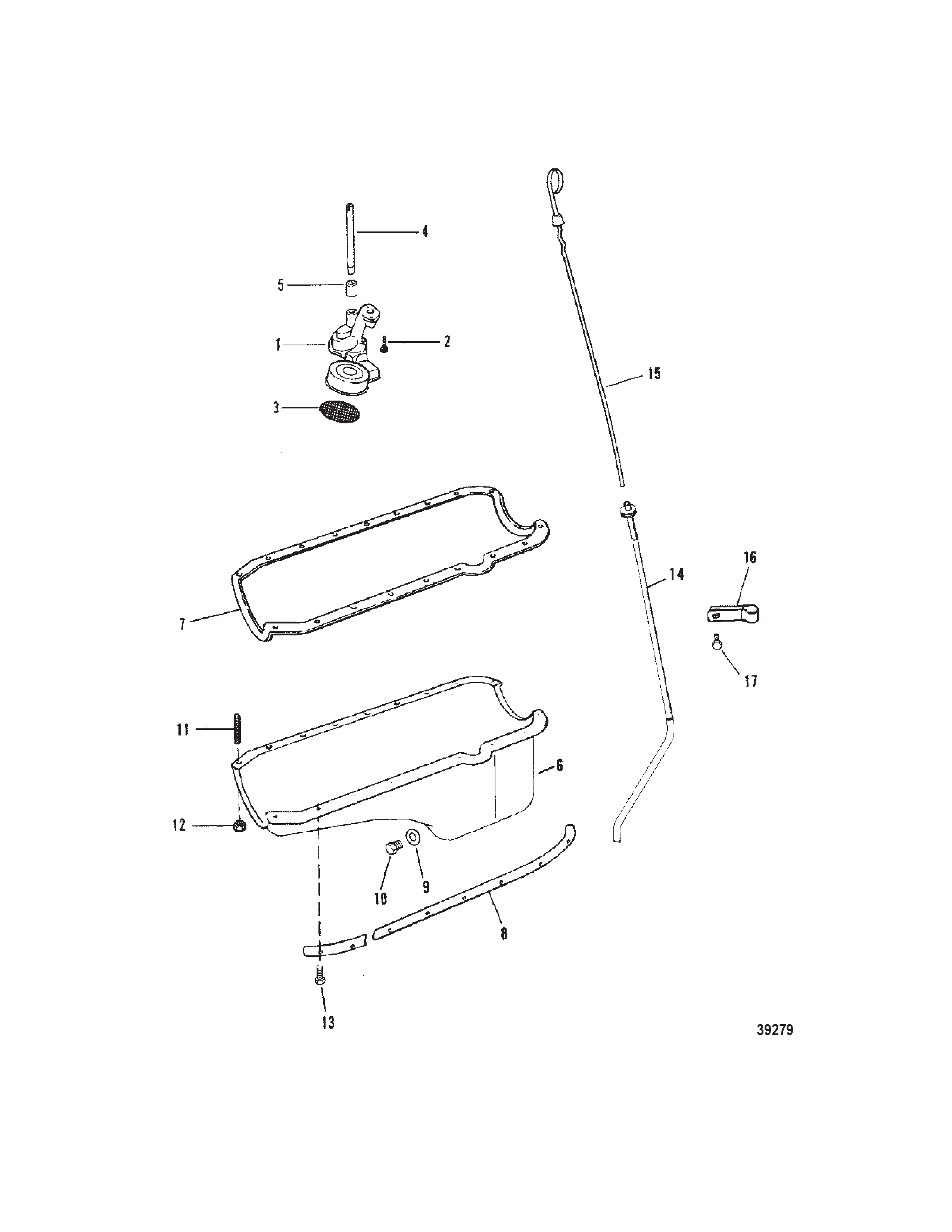

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- ALTERNATOR (MOTOROLA #8EM2003KA)
- ALTERNATOR (MOTOROLA #8MR2039K)
- AUDIO WARNING SYSTEM
- CARBURETOR (MERCARB)(175 - 4.3L)
- CARBURETOR (ROCHESTER)(205 - 4.3L-LX)
- CARBURETOR AND THROTTLE LINKAGE (175 - 4.3L)
- CARBURETOR AND THROTTLE LINKAGE (205 - 4.3L-LX)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING NEW DESIGN - FLUID MOUNT
- ENGINE MOUNTING OLD DESIGN
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST SYSTEM USE WITH 4 INCH EXHAUST ELBOW
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER NEW DESIGN
- INTAKE MANIFOLD AND FRONT COVER OLD DESIGN
- MISCELLANEOUS PARTS-ACCESSORIES
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS CAST MOUNTING BRACKET
- POWER STEERING COMPONENTS STAMPED MOUNTING BRACKET
- SHIFT BRACKET NEW DESIGN - WITH SPRING GUIDE
- SHIFT BRACKET OLD DESIGN
- STANDARD COOLING SYSTEM NEW DESIGN
- STANDARD COOLING SYSTEM OLD DESIGN
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- STARTER MOTOR DELCO REMY #9000762
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 17617 | PUMP Oil | 1 | ||
| 2 | 0010 | OEM: 525-10-17346 | SCREW OIL PUMP TO CYLINDER BLOCK | 1 | ||
| 3 | 0000 | 35354 | SCREEN ASSEMBLY OIL PUMP | 1 | ||
| 4 | 0000 | OEM: 525-36184 | SHAFT OIL PUMP TO DISTRIBUTOR | 1 | ||
| 5 | 0023 | OEM: 525-23-36183 | RETAINER OIL PUMP SHAFT | 1 | ||
| 6 | 0000 | 14244 | PAN Oil | 1 | ||
| 7 | 0027 | 14247 | GASKET SET OIL PAN | 1 | [1] | |
| 8 | 0000 | 14245 | REINFORCEMENT OIL PAN | (RIGHT) | 1 | |
| 8 | 0000 | 14246 | REINFORCEMENT OIL PAN | (LEFT) | 1 | |
| 9 | 0027 | 49955 | GASKET DRAIN SCREW | 1 | [1] | |
| 10 | 0010 | OEM: 525-10-49956 | SCREW Drain OIL PAN DRAIN | 1 | ||
| 11 | 0016 | OEM: 525-16-11989 | STUD (.312-18 x 1.6718) OIL PAN | 4 | ||
| 12 | 0011 | OEM: 525-11-11971 | NUT (.312-18) OIL PAN STUD | 4 | ||
| 13 | 0010 | OEM: 525-10-72607 | SCREW (.250-20 x .375) OIL PAN | 12 | ||
| 14 | 0000 | OEM: 525-12117A5 | TUBE OIL LEVEL GAUGE | 1 | ||
| 15 | 0000 | 410921 | GAUGE OIL LEVEL (DIPSTICK) | 1 | ||
| 16 | 0054 | 15754 | CLIP OIL LEVEL TUBE | 1 | ||
| 17 | 0010 | OEM: 525-10-98253 | SCREW (.250-20 x .500) CLIP TO CYLINDER BLOCK | 1 | ||
| - | 0027 | OEM: 525-27-11977A92, Sierra: 676-18-4388, GLM: 700-39650 | GASKET SET | 1 |
PART NOTES:
[1] - COMPONENT OF ENGINE/POWERHEAD GASKET SET 11977A92
