4.3L (GEN II) (2 BBL.) GM 262 V-6 - 0F000878 THRU 0F601126 - CARBURETOR (WEBER)

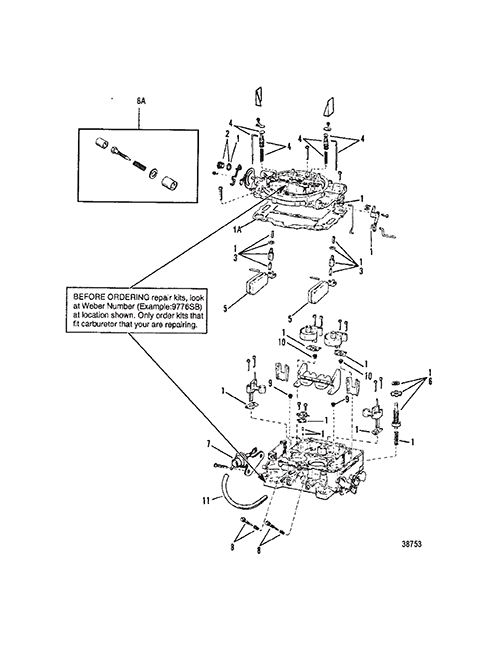

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- AUDIO WARNING SYSTEM
- BODENSEE PARTS
- CARBURETOR (MERCARB - 2 BARREL)
- CARBURETOR (WEBER)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST RISER
- EXHAUST SYSTEM
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER
- SERVICE AND SUPPORT MATERIAL
- SHIFT BRACKET
- STANDARD COOLING SYSTEM (DESIGN I)
- STANDARD COOLING SYSTEM (DESIGN II)
- STARTER MOTOR 3-1-4 DIAMETER END CAP
- STARTER MOTOR 8 IN. (PG 260) 2-7-8 IN. DIAMETER END CAP
- STARTER MOTOR AND ALTERNATOR
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 823728 | OVERHAUL KIT (9600) | 1 | ||
| 1 | 0000 | 809071 | OVERHAUL KIT (BODENSEE 9662) | 1 | ||
| 1A | 0027 | OEM: 525-27-809077 | GASKET (ALL) | 1 | ||
| 2 | 0000 | OEM: 525-811533 | FITTING KIT Inlet (ALL) | 1 | ||
| 3 | 0000 | OEM: 525-823727, GLM: 700-40780 | NEEDLE/SEAT KIT Inlet (ALL) | 2 | ||
| 4 | 0000 | 811831 | METERING ROD KIT (9600) | 1 | ||
| 4 | 0000 | 809073 | METERING ROD KIT (BODENSEE 9662) | 1 | ||
| 5 | 0000 | 811536 | FLOAT KIT (ALL) | 2 | ||
| 6 | 0000 | OEM: 525-811537 | PLUNGER KIT Pump (ALL) | 1 | ||
| 7 | 0000 | 811538 | CHOKE KIT (AUTO CHOKE) | 1 | ||
| 8 | 0000 | OEM: 525-811539 | SCREW KIT Idle Mixture (9600) | 2 | ||
| 8A | 0000 | 809072 | SCREW KIT Idle Mixture (BODENSEE 9662, 2 IN KIT) | 1 | ||
| 9 | 0000 | OEM: 525-823724 | JET Metering - Secondary (9600) | 2 | ||
| 9 | 0000 | 809075 | PRIMARY METERING JET (BODENSEE 9662) | 2 | ||
| 10 | 0000 | OEM: 525-823724 | JET Metering - Secondary (BODENSEE 9662) | 2 | ||
| 10 | 0000 | 823721 | SECONDARY METERING JET (BODENSEE 9662) | 2 | ||
| 11 | 0032 | OEM: 525-32-1430165 | TUBING (38.00 Inches Bulk) (AUTO CHOKE) | 1 |
