4.3L (GEN II) (2 BBL.) GM 262 V-6 - 0F000878 THRU 0F601126 - WIRING HARNESS AND ELECTRICAL COMPONENTS

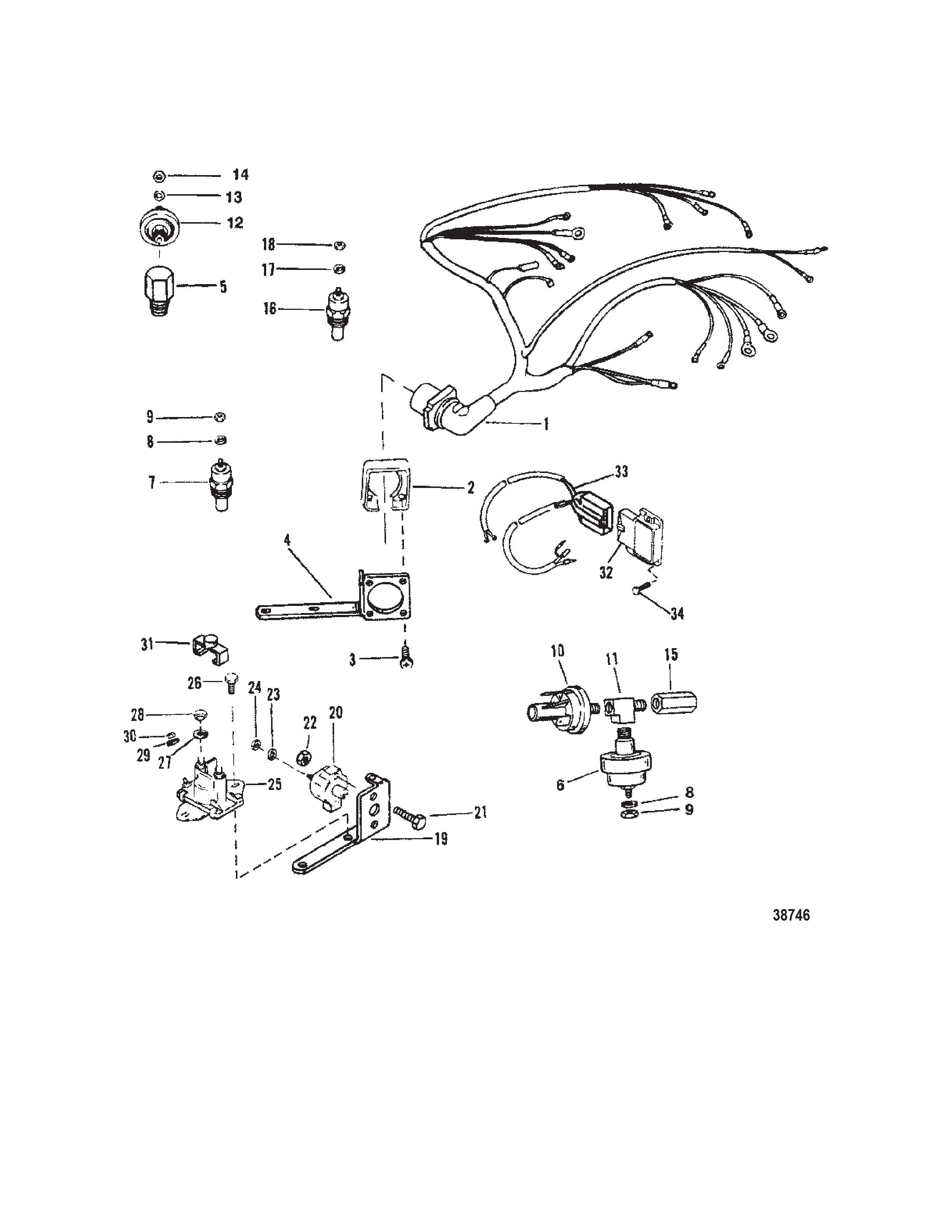

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- AUDIO WARNING SYSTEM
- BODENSEE PARTS
- CARBURETOR (MERCARB - 2 BARREL)
- CARBURETOR (WEBER)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST RISER
- EXHAUST SYSTEM
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER
- SERVICE AND SUPPORT MATERIAL
- SHIFT BRACKET
- STANDARD COOLING SYSTEM (DESIGN I)
- STANDARD COOLING SYSTEM (DESIGN II)
- STARTER MOTOR 3-1-4 DIAMETER END CAP
- STARTER MOTOR 8 IN. (PG 260) 2-7-8 IN. DIAMETER END CAP
- STARTER MOTOR AND ALTERNATOR
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0084 | 805369A5 | HARNESS ASSEMBLY | [0A000000] THRU [0F114777] | 1 | |
| 1 | 0084 | 806217A8 | HARNESS ASSEMBLY | [0F114778] THRU [0Z999999] | 1 | |
| 2 | 0000 | OEM: 525-26079A2 | PLATE KIT Wire Harness Mount | 1 | ||
| 3 | 0010 | OEM: 525-10-15001 | SCREW (#8-16 x .875) | 4 | ||
| 4 | 0000 | OEM: 525-805383T | BRACKET Harness Mounting | 1 | ||
| 5 | 0022 | OEM: 525-22-8053281 | FITTING Elbow (90 Degree - .125) | 1 | ||
| 6 | 0000 | 815425 | SENDER ASSEMBLY Oil Pressure | 1 | ||
| 6 | 0000 | 37293 | SENDER ASSEMBLY Oil Pressure (DUAL) | OPT. | ||
| 7 | 0000 | 97257A1 | SENDER ASSEMBLY Water Temperature | 1 | ||
| 7 | 0000 | 49734A1 | SENDER ASSEMBLY Water Temperature (DUAL) | OPT. | ||
| 8 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 2 | ||
| 9 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | 2 | ||
| 10 | 0087 | 805024 | SWITCH Oil Pressure (FUEL SYSTEM) | 1 | ||
| 11 | 0022 | 28624 | FITTING T | 1 | ||
| 12 | 0087 | OEM: 530-805605A1 | SWITCH ASSEMBLY (AUDIO WARNING SYSTEM) | 1 | ||
| 13 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 1 | ||
| 14 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | 1 | ||
| 15 | 0022 | OEM: 525-22-805059 | FITTING | 1 | ||
| 16 | 0087 | 806951 | SWITCH Water Temperature (PUSH-ON CONNECTION) | 1 | ||
| 16 | 0000 | OEM: 530-48952 | SWITCH ASSEMBLY (NUT CONNECTION) | 1 | ||
| 17 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel (NUT CONNECTION) | 1 | ||
| 18 | 0011 | OEM: 525-11-45076 | NUT (#10-32) Brass | 1 | ||
| 19 | 0000 | 805368T | BRACKET Electrical | 1 | ||
| 20 | 0088 | 11178 | BREAKER Circuit - 50 Ampere | 1 | ||
| 21 | 0010 | 45862 | SCREW (#10-32 x .875) | 2 | ||
| 22 | 0011 | OEM: 525-11-61356 | NUT (#10-32) Reduced Hex | 2 | ||
| 23 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 2 | ||
| 24 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | 2 | ||
| 25 | 0089 | 96158 | SOLENOID Starter | 1 | ||
| 26 | 0010 | OEM: 525-10-805564 | SCREW (.250-20 x .750) | 3 | ||
| 27 | 0013 | OEM: 525-13-26992 | LOCKWASHER (.250) Stainless Steel | 2 | ||
| 28 | 0011 | OEM: 525-11-94330 | NUT (.250-20) Brass | 2 | ||
| 29 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 2 | ||
| 30 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | 2 | ||
| 31 | 0085 | OEM: 525-85-97861 | INSULATOR | 1 | ||
| 32 | 0000 | 805361T1 | IGNITION MODULE | 1 | ||
| 33 | 0084 | 805363A1 | HARNESS ASSEMBLY | 1 | ||
| 34 | 0010 | OEM: 525-10-12110 | SCREW (#6-32 x .750) | 2 |
