4.3L (GEN II) (2 BBL.) GM 262 V-6 - 0F000878 THRU 0F601126 - STARTER MOTOR 3-1-4 DIAMETER END CAP

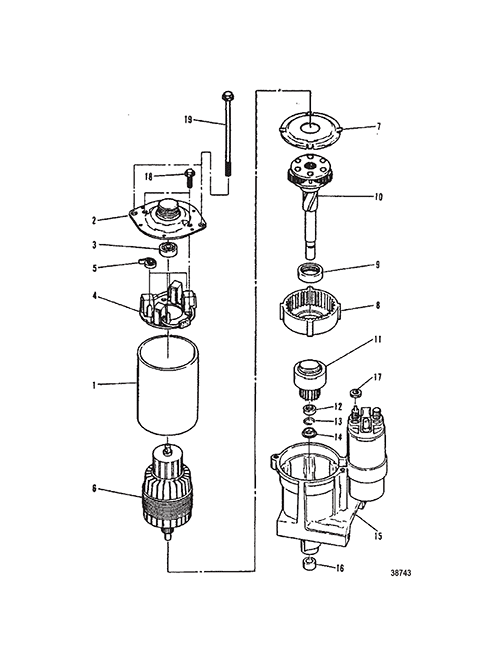

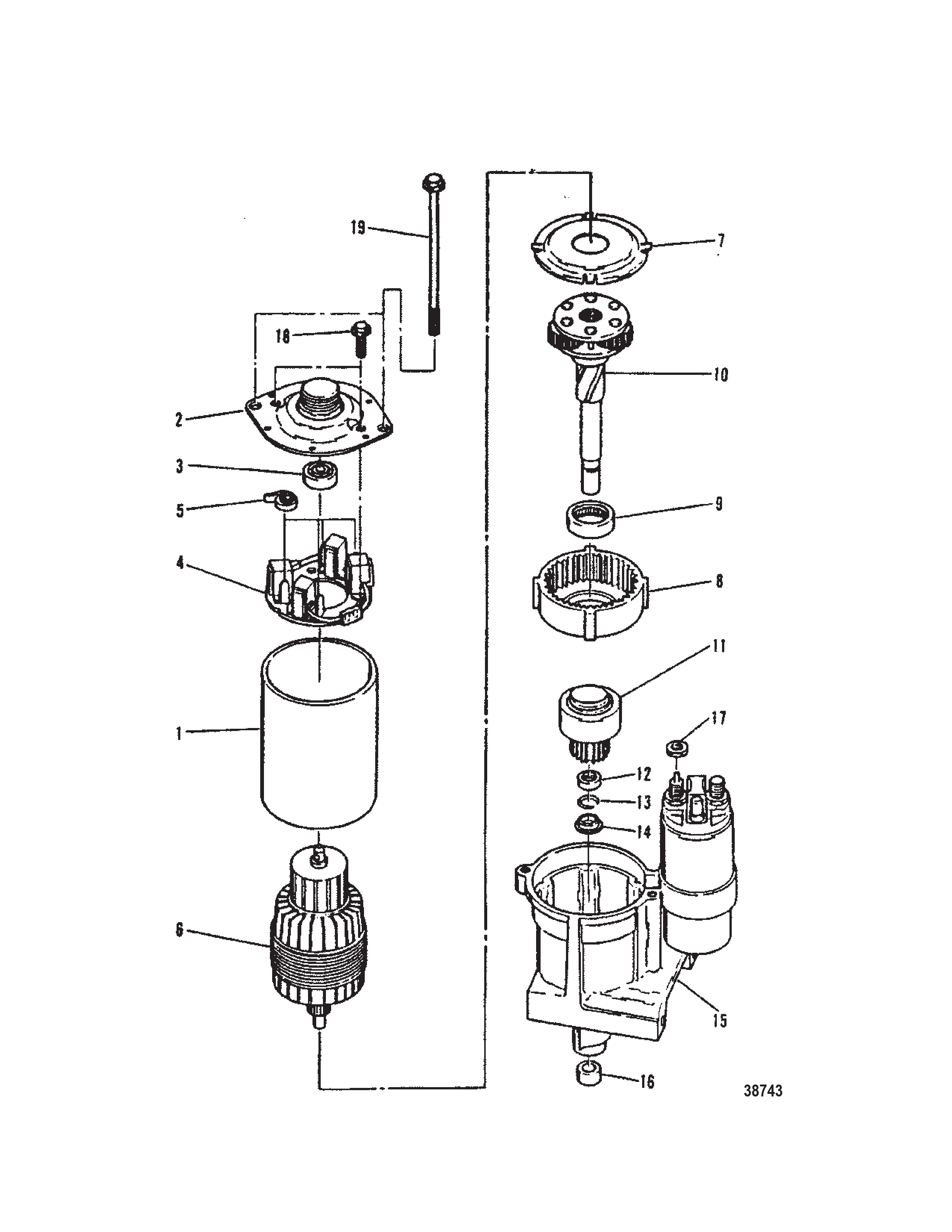

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- AUDIO WARNING SYSTEM
- BODENSEE PARTS
- CARBURETOR (MERCARB - 2 BARREL)
- CARBURETOR (WEBER)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST RISER
- EXHAUST SYSTEM
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER
- SERVICE AND SUPPORT MATERIAL
- SHIFT BRACKET
- STANDARD COOLING SYSTEM (DESIGN I)
- STANDARD COOLING SYSTEM (DESIGN II)
- STARTER MOTOR 3-1-4 DIAMETER END CAP
- STARTER MOTOR 8 IN. (PG 260) 2-7-8 IN. DIAMETER END CAP
- STARTER MOTOR AND ALTERNATOR
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0050 | 812604A2 | STARTER MOTOR ASSEMBLY 3- 1/4 Diameter End Cap | 1 | ||
| 2 | 0000 | 811862 | FRAME | 1 | ||
| 3 | 0030 | 814465 | BEARING Ball | 1 | ||
| 4 | 0000 | 811863 | HOLDER Brush | 1 | ||
| 5 | 0024 | 814467 | SPRING | 4 | ||
| 6 | 0000 | 811864 | ARMATURE | 1 | ||
| 7 | 0000 | 811882 | SHIELD | 1 | ||
| 8 | 0000 | 811897 | GEAR AND BEARING | 1 | ||
| 9 | 0000 | 814479 | BEARING Roller | 1 | ||
| 10 | 0000 | 814472 | SHAFT/GEAR ASSEMBLY | 1 | ||
| 11 | 0000 | 811896 | DRIVE | 1 | ||
| 12 | 0000 | 33291 | COLLAR | 1 | ||
| 13 | 0053 | 33290 | RING Retaining | 1 | ||
| 14 | 0000 | 814474 | COLLAR | 1 | ||
| 15 | 0000 | 814475 | HOUSING Drive | INCLUDES STARTER SWITCH, PLUNGER, RETURN SPRING, AND SHIFT LEVER. | 1 | |
| 16 | 0023 | 814476 | BUSHING | 1 | ||
| 17 | N.S.S. | Not Sold Separate NUT | 1 | |||
| 18 | 0010 | 814468 | SCREW | 2 | ||
| 19 | 0010 | 814477 | THRU BOLT | 2 |
